HR172RAP (7)
Brand:Henry
Model:HR172RAP (7)
Category:Axial fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / Ada@bjhengrui.cn / qin@bjhengrui.cn
- Specification
- Details
- Application
henry fan | model:HR172RAP (7) | sufficient stock
henry fan——HR172RAP (7)——Specification:
172x51mm/Dia.6.8x2inch |
320 CFM |
Rated
Volt
|
Voltage
Range
|
Freq | Input
Power
|
Ref.
Speed
|
Max.Airflow | Max.Static Pressure | Noise
Level
|
PQ | |||
Model No | VAC | VAC | Hz | Watt |
RPM |
CFM | m3/min | Inch/H2O | mm | db(A) | |
HR172RAP-11-1** (7) | 115 | 100~120 | 50/60 | 26/35 (~42) | 2800/3250 | 270/320 | 7.6/9.1 | 0.65/0.76 | 16.51/19.3 | 61/63 | 2/1 |
HR172RAP-11-2** (7) | 115 | 100~120 | 50/60 | 22/20 | 2400/2700 | 235/270 | 6.7/7.6 | 0.53/0.63 | 13.46/16 | 54/56 | 4/3 |
HR172RAP-22-1** (7) | 230 | 200~240 | 50/60 | 26/35 (~42) | 2800/3250 | 270/320 | 7.6/9.1 | 0.65/0.76 | 16.51/19.3 | 61/63 | 2/1 |
HR172RAP-22-2** (7) | 230 | 200~240 | 50/60 | 22/20 | 2400/2700 | 235/270 | 6.7/7.6 | 0.53/0.63 | 13.46/16 | 54/56 | 4/3 |
HR172RAP-38-1** (7) | 380 | 380~420 | 50/60 | 26/35 (~42) | 2800/3200 | 270/310 | 7.6/8.8 | 0.65/0.74 | 16.51/18.8 | 61/63 | 2/1 |
HR172RAP-44-1** (7) | 440 | 440~480 | 50/60 | 26/35 (~42) | 2800/3200 | 270/310 | 7.6/8.8 | 0.65/0.74 | 16.51/18.8 | 61/63 | 2/1 |
HR172RAP-11/22-1** (7)
Dual voltage
|
115
230
|
100~120
200~240
|
50/60 | 26/35 (~42) | 2800/3250 | 270/320 | 7.6/9.1 | 0.65/0.76 | 16.51/19.3 | 61/63 | 2/1 |
Motor Type: | Capacitor induction, outer rotor, 1-phase | |
Burnout Protection: | Thermal protector, auto reset | |
IP Protection: | IP55 optional | |
Frame: | Aluminum die cast, black(HR172RAP) | |
Impeller: | 7 blades, glass fiber reinforced plastic, rated UL94V-0 | |
Bearing: | Two ball bearings | |
Rotation: | CCW seen on rotor | |
Connection: | Wire leads, terminal flat pin | |
Weight: | 1150 g (2.53 Lbs) | |
Dielectric Strength: | Over 1 min. at 1,500 VAC, 0.5mA, 50/60 Hz | |
Insulation Resistance: | Over 100 MΩ at DC 500V | |
Signal Output: | - | |
Operating Temp: | Ambient non-condensing -20~+70C | |
Storage Temp: | -40C~+100C (at 65%RH) | |
Life Expectancy: | L10 100K hours at 35C, 50K hours at 60C |
For more information,please contact:
Wechat:+86 18701526587 / +86 15010372387
Skype: bjhengryRP1983@hotmail.com
bjhengry2018@gmail.com
henry fan | model:HR172RAP (7) | sufficient stock

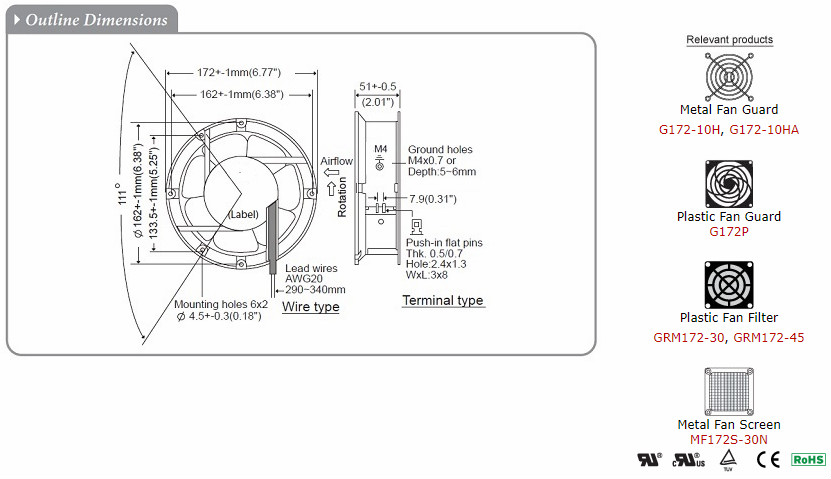

henry fan——HR172RAP (7)——Structural drawing:

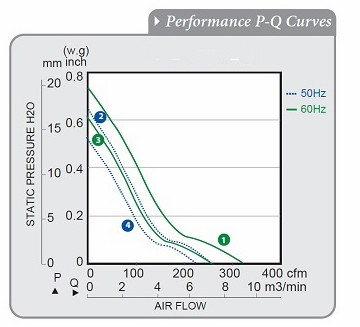

henry fan——HR172RAP (7)——air flow:
For more information,please contact:
Wechat:+86 18701526587 / +86 15010372387
Skype: bjhengryRP1983@hotmail.com
bjhengry2018@gmail.com
