HR162SAP
Brand：Henry
Model：HR162SAP
Category：Axial fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / Ada@bjhengrui.cn / qin@bjhengrui.cn
- Specification
- Details
- Application
henry fan | model：HR162SAP | sufficient stock
henry fan——HR162SAP——Specification:
| 172x150x51mm/6x2inch |
| 215 CFM |
| Rated
Volt
|
Voltage
Range
|
Freq | Input
Power
|
Ref.
Speed
|
Max.Airflow | Max.Static Pressure | Noise
Level
|
PQ | |||
| Model No | VAC | VAC | Hz | Watt |
RPM |
CFM | m3/min | Inch/H2O | mm | db(A) | |
| HR162SAP-11-1 | 115 | 60~130 | 50/60 | 30/26 | 2600/2900 | 190/215 | 5.4/6.1 | 0.49/0.45 | 12.45/11.43 | 47 | |
| HR162SAP-11-2 | 115 | 60~130 | 50/60 | 24/20 | 2300/2400 | 165/175 | 4.7/5 | 0.42/0.38 | 10.67/9.65 | 40 | |
| HR162SAP-11-3 | 115 | 80~130 | 50/60 | 18/16 | 1600/1500 | 120/110 | 3.4/3.1 | 0.31/0.26 | 7.87/6.6 | 32 | |
| HR162SAP-22-1 | 230 | 120~260 | 50/60 | 30/26 | 2600/2800 | 190/215 | 5.4/6.1 | 0.49/0.45 | 12.45/11.43 | 47 | |
| HR162SAP-22-2 | 230 | 130~260 | 50/60 | 24/20 | 2300/2400 | 165/175 | 4.7/5 | 0.42/0.38 | 10.67/9.65 | 40 | |
| HR162SAP-22-3 | 230 | 150~260 | 50/60 | 18/16 | 1600/1500 | 120/110 | 3.4/3.1 | 0.31/0.26 | 7.87/6.6 | 32 | |
| HR162SAP-22-1(240) | 240 | 120~280 | 50/60 | 30/26 | 2600/2900 | 190/215 | 5.4/6.1 | 0.49/0.45 | 12.45/11.43 | 47 | |
| HR162SAP-11/22-1
dual voltage
|
115
230
|
60~130
120~250
|
50/60 | 30/26 | 2600/2900 | 190/215 | 5.4/6.1 | 0.49/0.45 | 12.45/11.43 | 47 | |
| HR162SAP-11/22-2 | 115
230
|
70~120
130~250
|
50/60 | 24/20 | 2200/2400 | 163/175 | 4.6/5 | 0.41 /0.37 | 10.41/9.4 | 40 | |
| HR162SAP-11/22-3 | 115
230
|
80~140
150~260
|
50/60 | 18/16 | 1600/1500 | 120/110 | 3.4/3.1 | 0.31 /0.26 | 7.87/6.6 | 32 | |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
For more information，please contact：
Wechat：+86 18701526587 / +86 15010372387
Skype: bjhengryRP1983@hotmail.com
bjhengry2018@gmail.com
henry fan | model：HR162SAP | sufficient stock

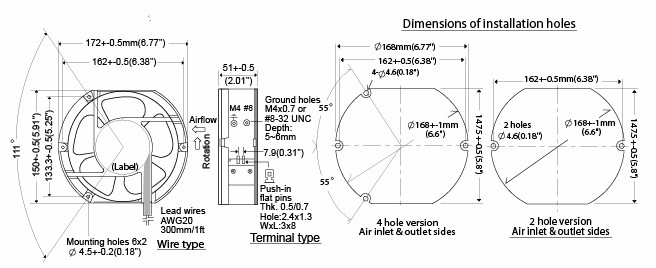

henry fan——HR162SAP——Structural drawing:
For more information，please contact：
Wechat：+86 18701526587 / +86 15010372387
Skype: bjhengryRP1983@hotmail.com
bjhengry2018@gmail.com
Henry offers full series of product combinations, including AC/DC Axial Fans, EC Fans (EC Fan energy-saving fan series), All Metal Fans, Centrifugal Fans, Crossflow Fans, Blowers, Skeleton Fan, and AC/DC/EC Motors, IP68 Cooling fans (IP68 Waterproof Fans / IP68 Dustproof Fans / IP68 Splash Proof Fans), and Fan Accessories (Metal Fan Guard, Plastic Fan Guard, Plastic Filter, Metal Screen, Ventilator Filter Kits, Power Cord) in both AC and DC market with varieties of functions. This wide selection enables our customers to choose the correct air moving device for all applications.
Henry also has other AC fans, the models are as follows:
HR125AP
HR127AP
HR150AP
HR160AP
HR162SAP
HR172EAP
HR172RAP
HR172SAP
HR175SAP
HR180FAP
HR180GAP
HR200RAN
HR200RAP
HR205AN
HR205AP
HR225AP
HR254AP
HR254RAN
HR254RAP
HR280RAN
HR280RAP
HR825AP
HR838AP
HR938AP
HR1232AN
