HR172RAP (C7)
Brand：Henry
Model：HR172RAP (C7)
Category：Axial fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / Ada@bjhengrui.cn / qin@bjhengrui.cn
- Specification
- Details
- Application
henry fan | model：HR172RAP (C7) | sufficient stock
henry fan——HR172RAP (C7)——Specification:
| Dia.172x51mm/6.8x2inch |
| 310 CFM |
| Rated
Volt
|
Voltage
Range
|
Freq | Input
Power
|
Ref.
Speed
|
Max.Airflow | Max.Static Pressure | Noise
Level
|
PQ | |||
| Model No | VAC | VAC | Hz | Watt |
RPM |
CFM | m3/min | Inch/H2O | mm | db(A) | |
| HR172RAP11-1** (EC7V) | 115 | 100~120 | 50/60 | 47/42 | 2800/3250 | 275/310 | 7.8/8.8 | 0.69/0.74 | 17.53/18.8 | 61 | 2/1 |
| HR172RAP11-2** (EC7V) | 115 | 100~120 | 50/60 | 35/32 | 2400/2800 | 230/270 | 6.5/7.6 | 0.66/0.71 | 16.76/18.03 | 54 | 3/4 |
| HR172RAP22-1** (EC7V) | 230 | 200~240 | 50/60 | 47/42 | 2800/3250 | 275/310 | 7.8/8.8 | 0.69/0.74 | 17.53/18.8 | 61 | 2/1 |
| HR172RAP22-2** (EC7V) | 230 | 200~240 | 50/60 | 35/32 | 2400/2800 | 230/270 | 6.5/7.6 | 0.66/0.71 | 16.76/18.03 | 54 | 3/4 |
| HR172RAP11/22-1** (EC7V)
dual voltage
|
115
230
|
100~120
200~240
|
50/60 | 47/42 | 2800/3250 | 275/310 | 7.8/8.8 | 0.69/0.74 | 17.53/18.8 | 61 | 2/1 |
| HR172RAP11/22-2** (EC7V)
dual voltage
|
115
230
|
100~120
200~240
|
50/60 | 35/32 | 2400/2800 | 230/270 | 6.5/7.6 | 0.66/0.71 | 16.76/18.03 | 54 | 3/4 |
| HR172RAP38-1** (EC7V) | 380 | 380~420 | 50/60 | 47/42 | 2800/3250 | 275/310 | 7.8/8.8 | 0.69/0.74 | 17.53/18.8 | 61 | 2/1 |
| HR172RAP44-1** (EC7V) | 440 | 440~480 | 50/60 | 47/42 | 2800/3250 | 275/310 | 7.8/8.8 | 0.69/0.74 | 17.53/18.8 | 61 | 2/1 |
 |
||
| Motor Type: | Capacitor induction, outer rotor, 1-phase | |
 |
||
| Burnout Protection: | Thermal protector, auto reset | |
|
||
| IP Protection: | IP54 | |
 |
||
 |
||
| Frame: | Aluminum die cast, black color(AP) | |
|
||
| Impeller: | 7 blades, all metal | |
|
||
| Bearing: | Two ball bearings | |
|
||
| Rotation: | CCW seen on rotor; air direction | |
|
||
| Connection: | Wire lead or terminal flat pin connecting | |
|
||
| Weight: | 1,080 g (2.38 Lbs) | |
|
||
 |
||
| Dielectric Strength: | Over 1 min. at 1,500 VAC, 0.5mA,
50/60 Hz
|
|
|
||
| Insulation Resistance: | Over 100 MΩ at DC 500V | |
|
||
| Signal Output: | Optional:R/D alarm output, tachometer output F/G | |
|
||
 |
||
| Operating Temp: | Ambient non-condensing -30℃~+80℃ | |
|
||
| Storage Temp: | -40℃~+100℃ (at 65%RH) | |
|
||
| Life Expectancy: | L10 100K hours at 45C | |
For more information，please contact：
Wechat：+86 18701526587 / +86 15010372387
Skype: bjhengryRP1983@hotmail.com
bjhengry2018@gmail.com
henry fan | model：HR172RAP (C7) | sufficient stock
Dia.172x51mm/6.8x2inch IP54 310 CFM RD, FG ,High Performance
henry fan——HR172RAP (C7)——Structural drawing:

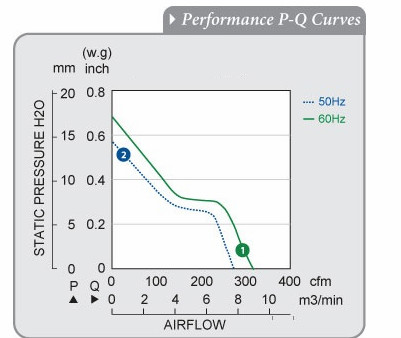

henry fan——HR172RAP (C7)——air flow:
