HR172SAP (A)
Brand：Henry
Model：HR172SAP (A)
Category：Axial fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / Ada@bjhengrui.cn / qin@bjhengrui.cn
- Specification
- Details
- Application
henry fan | model：HR172SAP (A) | sufficient stock
henry fan——HR172SAP (A)——Specification:
|
| Rated
Volt
|
Voltage
Range
|
Freq | Input
Power
|
Ref.
Speed
|
Max.Airflow | Max.Static Pressure | Noise
Level
|
PQ | |||
| Model No | VAC | VAC | Hz | Watt |
RPM |
CFM | m3/min | Inch/H2O | mm | db(A) | |
| HR172SAP11-1** (A)(100) | 100 | 100~120 | 50/60 | 47/42 | 2750/3100 | 222/250 | 6.3/7.1 | 0.55/0.49 | 13.97/12.45 | 58 | 2/1 |
| HR172SAP11-1** (A) | 115 | 100~120 | 50/60 | 47/42 | 2750/3100 | 222/250 | 6.3/7.1 | 0.55/0.49 | 13.97/12.45 | 58 | 2/1 |
| HR172SAP11-2** (A) | 115 | 100~120 | 50/60 | 35/32 | 2300/2400 | 185/194 | 5.2/5.5 | 0.45/0.38 | 11.43/9.65 | 48 | 4/3 |
| HR172SAP11-3** (A) | 115 | 100~120 | 50/60 | 23/20 | 1500/1600 | 121/129 | 3.4/3.7 | 0.32/0.26 | 8.13/6.6 | 35 | 6/5 |
| HR172SAP11-1/2** (A)
dual speed
|
115 | 100~120 | 50/60 | 47/42
35/32
|
2750/3100
2300/2400
|
222/250
185/194
|
6.3/7.1
5.2/5.5
|
0.55/0.49
0.45/0.38
|
13.97/12.45
11.43/9.65
|
58
48
|
2/1
4/3
|
| HR172SAP11-1/2/3**(A)
triple speed
|
115 | 100~120 | 50/60 | 47/42
35/32
23/20
|
2750/3100
2300/2400
1500/1600
|
222/250
185/194
121/129
|
6.3/7.1
5.2/5.5
3.4/3.7
|
0.55/0.49
0.45/0.38
0.32/0.26
|
13.97/12.45
11.43/9.65
8.13/6.6
|
58
48
35
|
2/1
4/3
6/5
|
| HR172SAP22-1** (A)(200) | 200 | 200~240 | 50/60 | 47/42 | 2750/3100 | 222/250 | 6.3/7.1 | 0.55/0.49 | 13.97/12.45 | 58 | 2/1 |
| HR172SAP22-1** (A) | 230 | 200~240 | 50/60 | 47/42 | 2750/3100 | 222/250 | 6.3/7.1 | 0.55/0.49 | 13.97/12.45 | 58 | 2/1 |
| HR172SAP22-2** (A) | 230 | 200~240 | 50/60 | 35/32 | 2300/2400 | 185/194 | 5.2/5.5 | 0.45/0.38 | 11.43/9.65 | 48 | 4/3 |
| HR172SAP22-3** (A) | 230 | 200~240 | 50/60 | 23/20 | 1500/1600 | 121/129 | 3.4/3.7 | 0.32/0.26 | 8.13/6.6 | 35 | 6/5 |
| HR172SAP22-1** (A)(240) | 240 | 200~240 | 50/60 | 47/42 | 2750/3100 | 222/250 | 6.3/7.1 | 0.55/0.49 | 13.97/12.45 | 58 | 2/1 |
| HR172SAP22-1/2** (A)
dual speed
|
230 | 200~240 | 50/60 | 47/42
35/32
|
2750/3100
2300/2400
|
222/250
185/194
|
6.3/7.1
5.2/5.5
|
0.55/0.49
0.45/0.38
|
13.97/12.45
11.43/9.65
|
58
48
|
2/1
4/3
|
| HR172SAP22-1/2/3** (A)
triple speed
|
230 | 200~240 | 50/60 | 47/42
35/32
23/20
|
2750/3100
2300/2400
1500/1600
|
222/250
185/194
121/129
|
6.3/7.1
5.2/5.5
3.4/3.7
|
0.55/0.49
0.45/0.38
0.32/0.26
|
13.97/12.45
11.43/9.65
8.13/6.6
|
58
48
35
|
2/1
4/3
6/5
|
| HR172SAP11/22-1** (A)
dual voltage
|
115
230
|
100~120
200~240
|
50/60 | 47/42 | 2750/3100 | 222/250 | 6.3/7.1 | 0.55/0.49 | 13.97/12.45 | 58 | 2/1 |
| HR172SAP2-1** (A) | 12 | 12~14 | 50/60 | 47/42 | 2750/3100 | 222/250 | 6.3/7.1 | 0.55/0.49 | 13.97/12.45 | 58 | 2/1 |
| HR172SAP4-1** (A) | 24 | 24~28 | 50/60 | 47/42 | 2750/3100 | 222/250 | 6.3/7.1 | 0.55/0.49 | 13.97/12.45 | 58 | 2/1 |
| HR172SAP6-1** (A) | 28 | 28~34 | 50/60 | 47/42 | 2750/3100 | 222/250 | 6.3/7.1 | 0.55/0.49 | 13.97/12.45 | 58 | 2/1 |
| HR172SAP8-1** (A) | 48 | 48~58 | 50/60 | 47/42 | 2750/3100 | 222/250 | 6.3/7.1 | 0.55/0.49 | 13.97/12.45 | 58 | 2/1 |
| HR172SAP38-1** (A) | 380 | 380~420 | 50/60 | 47/42 | 2750/3100 | 222/250 | 6.3/7.1 | 0.55/0.49 | 13.97/12.45 | 58 | 2/1 |
| HR172SAP44-1** (A) | 440 | 440~480 | 50/60 | 47/42 | 2750/3100 | 222/250 | 6.3/7.1 | 0.55/0.49 | 13.97/12.45 | 58 | 2/1 |
 |
||
| Motor Type: | Shaded pole induction, outer rotor, 1-phase | |
 |
||
| Burnout Protection: | Thermal protector | |
|
||
| IP Protection: | IP55 optional | |
 |
||
 |
||
| Frame: | Aluminum die cast, black color(AP) | |
|
||
| Impeller: | 5 blades, all metal | |
|
||
| Bearing: | Two ball bearings | |
|
||
| Rotation: | CCW seen on rotor. Reverse Airflow | |
|
||
| Connection: | Wire lead or terminal flat pin connecting | |
|
||
| Weight: | 1,200 g (2.65 Lbs) | |
|
||
 |
||
| Dielectric Strength: | Over 1 min. at 1,500 VAC, 0.5mA, 50/60Hz | |
|
||
| Insulation Resistance: | Over 100 MΩ at DC 500V | |
|
||
| Signal Output: | Optional:R/D alarm output, tachometer output F/G | |
|
||
 |
||
| Operating Temp: | Ambient non-condensing -30~+80C | |
|
||
| Storage Temp: | -40C~+100C (at 65%RH) | |
|
||
| Life Expectancy: | L10 50K hours at 55C | |
For more information，please contact：
Wechat：+86 18701526587 / +86 15010372387
Skype: bjhengryRP1983@hotmail.com
bjhengry2018@gmail.com
henry fan | model：HR172SAP (A) | sufficient stock
172x150x51mm/6x2inch IP55 250 CFM RD Alarm, FG Tachometer

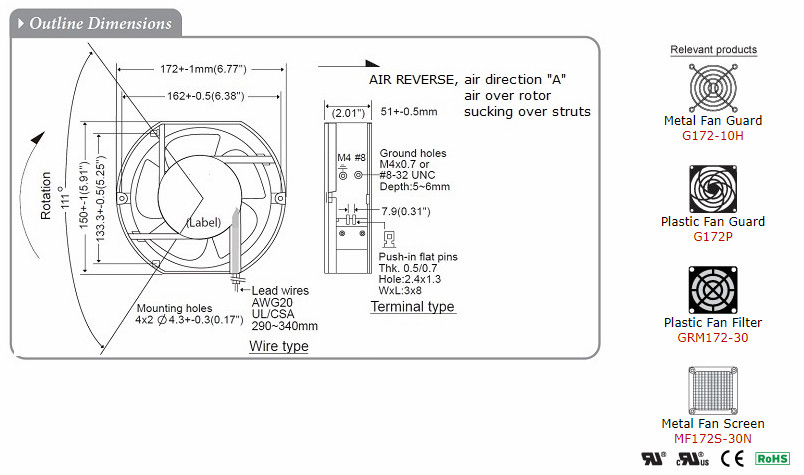

henry fan——HR172SAP (A)——Structural drawing:
henry fan——HR172SAP (A)——air flow:
