HR225HAN
Brand:Henry
Model:HR225HAN
Category:Centrifugal fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / Ada@bjhengrui.cn / qin@bjhengrui.cn
- Specification
- Details
- Application
henry fan | model:HR225HAN | sufficient stock
Dia.225x99mm/8.8x3.89inch |
835CFM |
henry fan——HR225HAN——Specification:
Rated
Volt
|
Voltage
Range
|
Input Power
|
Rated
Current
|
Ref.
Speed
|
Max.Airflow | Max.Static Pressure | Noise
Level
|
PQ
Curves
|
|||
Model No | VDC | VDC | Watt | Amp | RPM | CFM | m3/min | Inch/H2O | mm | db(A) | |
HR225HAN-24H** | 24 | 16~28 | 110.4 | 4.6 | 2500 | 835 | 23.6 | 2.05 | 52.07 | 55 | |
HR225HAN-48H** | 48 | 36~56 | 110.4 | 2.3 | 2500 | 835 | 23.6 | 2.05 | 52.07 | 55 |
Motor Type: | Brushless DC motor, auto cutoff, auto restart | |
Burnout Protection: | Electronically protected, polarity protected | |
IP Protection: | - | |
Frame: | Aluminum die casting motor frame | |
Impeller: | glass-fiber reinforced PA66 impeller | |
Bearing: | Maintenance-free two ball bearings | |
Rotation: | CCW seen on rotor | |
Connection: | wire type | |
Weight: | 1,500g | |
Dielectric Strength: | 500VAC/min. Max. leakage 500mA | |
Speed Control: | S/C-ntc, PWM, 0~10V S/V on request | |
Signal Output: | R/D alarm, F/G tachometer on request | |
Operating Temp: | -10~+60C | |
Storage Temp: | -40~+75C | |
Life Expectancy: | L10 formula 50K hours at 25C |
For more information,please contact:
Wechat:+86 18701526587 / +86 15010372387
Skype: bjhengryRP1983@hotmail.com
bjhengry2018@gmail.com
henry fan | model:HR225HAN | sufficient stock
henry fan——HR225HAN——air flow:

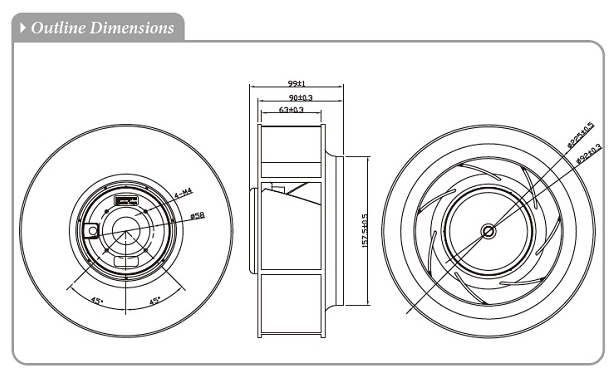

henry fan——HR225HAN——Structural drawing:
