HR17RAN
Brand：Henry
Model：HR17RAN
Category：Centrifugal fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / Ada@bjhengrui.cn / qin@bjhengrui.cn
- Specification
- Details
- Application
henry fan | model：HR17RAN | sufficient stock
| Dia.175x67mm/6.9x2.6inch |
| 395CFM |
henry fan——HR17RAN——Specification:
| Rated
Volt
|
Voltage
Range
|
Input Power
|
Rated
Current
|
Ref.
Speed
|
Max.Airflow | Max.Static Pressure | Noise
Level
|
PQ
Curves
|
|||
| Model No | VDC | VDC | Watt | Amp | RPM | CFM | m3/min | Inch/H2O | mm | db(A) | |
| HR17RAN-12HH** | 12 | 8~14 | 50.4 | 4.2 | 3000 | 338 | 9.6 | 1.08 | 27.43 | 64 | 2 |
| HR17RAN-24SH** | 24 | 15~27.6 | 63.6 | 2.65 | 3500 | 395 | 11.2 | 1.4 | 35.56 | 69 | 1 |
| HR17RAN-24HH** | 24 | 15~27.6 | 50.4 | 2.1 | 3000 | 338 | 9.6 | 1.08 | 27.43 | 64 | 2 |
| HR17RAN-48SH** | 48 | 22~53 | 62.4 | 1.3 | 3500 | 395 | 11.2 | 1.4 | 35.56 | 69 | 1 |
| HR17RAN-48HH** | 48 | 22~54 | 52.8 | 1.1 | 3000 | 338 | 9.6 | 1.08 | 27.43 | 64 | 2 |
 |
||
| Motor Type: | Brushless DC motor, MED178AN | |
 |
||
| Burnout Protection: | Electronically protected | |
|
||
| IP Protection: | - | |
 |
||
| Frame: | Aluminum die casting motor frame, galvanized SEEC steel plate impeller frange | |
|
||
| Impeller: | 9 blades, glass-fiber reinforced PA66 impeller | |
|
||
| Bearing: | Maintenance-free two ball bearings | |
|
||
| Rotation: | CW seen on rotor | |
|
||
| Connection: | Wire leads or terminal block connecting for choice | |
|
||
| Weight: | 1,650g | |
 |
||
| Dielectric Strength: | 500VAC/min. Max. leakage 500mA | |
|
||
| Speed Control: | S/C-ntc, PWM, 0~10V S/V | |
|
||
| Signal Output: | R/D alarm, F/G tachometer | |
 |
||
| Operating Temp: | -20~+65C(non-condensing) | |
|
||
| Storage Temp: | -40~+90C | |
|
||
| Life Expectancy: | L10 formula 90K hours at 35C, 30K hours at 65C | |
For more information，please contact：
Wechat：+86 18701526587 / +86 15010372387
Skype: bjhengryRP1983@hotmail.com
bjhengry2018@gmail.com
henry fan | model：HR17RAN | sufficient stock
henry fan——HR17RAN——air flow:

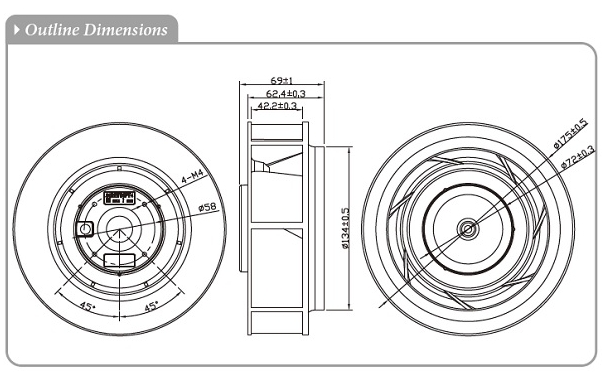

henry fan——HR17RAN——Structural drawing:
