EBM-Papst S4E350-AP06-59 AC Fan Ball Bearing 230V 130W/190W 1400RPM/1590RPM 1294.87CFM Flange Mount
Brand：ebmpapst
Model：S4E350-AP06-59
Category：Axial fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / Ada@bjhengrui.cn / qin@bjhengrui.cn
- Specification
- Details
- Application
ebmpapst axial fan | model：S4E350-AP06-59 | motor:M4E074-DF | Sufficient Stock
|
Nominal data |
|||
|
Type |
S4E350-AP06-59 |
||
|
Motor |
M4E074-DF |
||
|
Phase |
|
1~ |
1~ |
|
Nominal voltage |
VAC |
230 |
230 |
|
Frequency |
Hz |
50 |
60 |
|
Valid for approval / standard |
|
CE |
CE |
|
Speed |
min-1 |
1400 |
1590 |
|
Power input |
W |
130 |
190 |
|
Current draw |
A |
0.58 |
0.83 |
|
Capacitor voltage |
VDB |
400 |
400 |
|
Max. ambient temperature |
°C |
55 |
55 |
|
Motor capacitor |
µF |
4 |
4 |
|
Starting current |
A |
1.2 |
1..1 |
|
ml = max. load · me = max. efficiency · fa = running at free air · cs = customer specs · cu = customer unit |
|||
ebmpapst axial fan | model：S4E350-AP06-59 | motor:M4E074-DF | Sufficient Stock

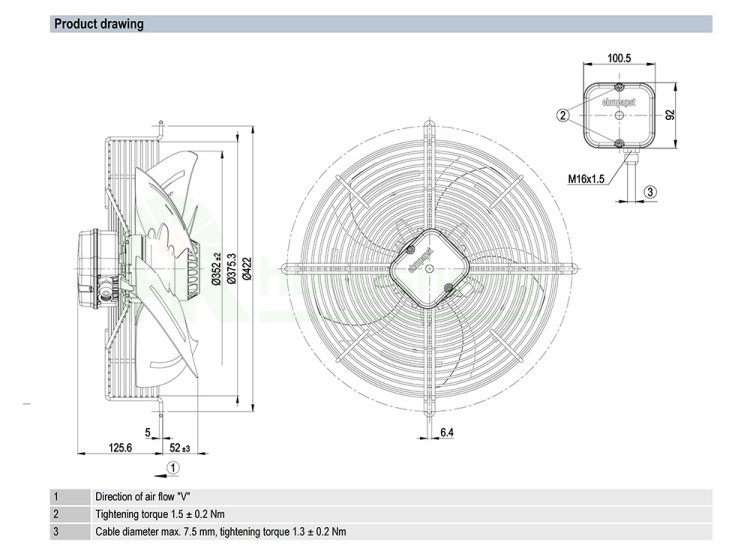

ebmpapst——S4E350-AP06-59——Structural drawing：

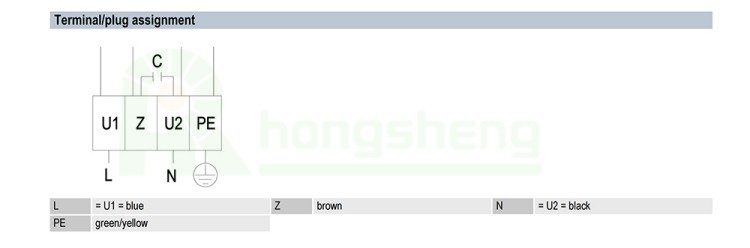

ebmpapst——S4E350-AP06-59——Connection screen：
ebmpapst——S4E350-AP06-59——Air flow：

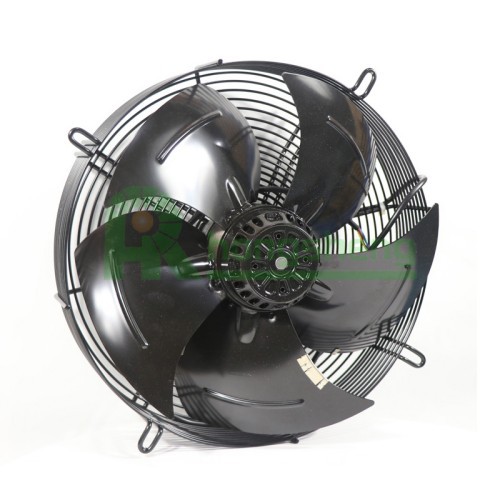

ebmpapst S4E350-AP06-59 blower fan
