Forward Centrifugal Fan, Dual Inlet

D1G133-DC13-52

Brand:ebmpapst

Model:D1G133-DC13-52

Category:Centrifugal fans

Sales Hotline.:+86 10-62547612
E-mail: Jason@bjhengrui.cn / Ada@bjhengrui.cn / Martina@bjhengrui.cn
  • Introduction

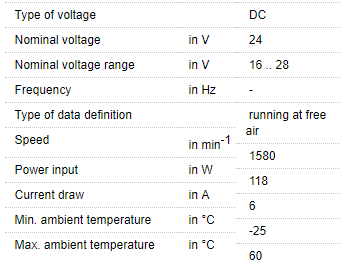

  • Performance
  • Application range
Technical description
Weight 3.46 kg
Motor size 74
Size 133 mm
Rotor surface Painted black
Impeller material Sheet steel, hot-dip galvanized
Housing material Sheet steel, hot-dip galvanized
Motor suspension Motor vibration-damped on both sides
Direction of rotation Clockwise, viewed toward rotor
Degree of protection IP42
Insulation class "B"
Moisture (F) / Environmental (H) protection class H0 - dry environment
Max. permitted ambient temp. for motor (transport/storage) + 80 °C
Min. permitted ambient temp. for motor (transport/storage) - 40 °C
Installation position Any
Condensation drainage holes None
Mode S1
Motor bearing Ball bearing
Technical features - Control input 0-10 VDC / PWM - Tach output - Motor current limitation - Soft start
EMC immunity to interference According to EN 61000-6-2 (industrial environment)
EMC interference emission According to EN 55022 (Class B)
Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system) <= 0,25 mA
Motor protection Reverse polarity and locked-rotor protection
with cable Variable
Conformity with standards EN 60950-1
Approval UL 1004-1 / CSA C22.2 No. 77 / EAC
