current location:Home > Product > Forward Centrifugal Fan, Dual Inlet

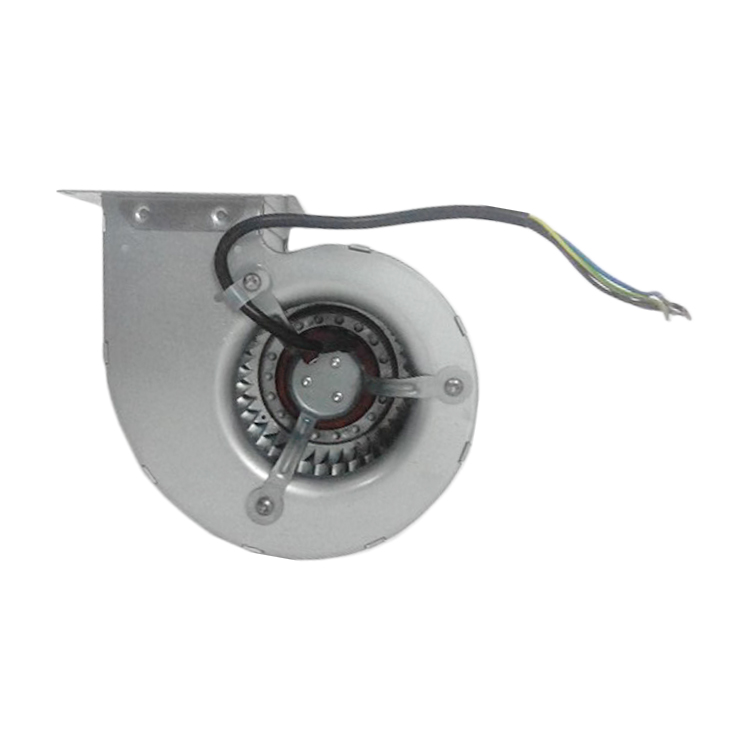

Forward Centrifugal Fan, Dual Inlet

D2E097-BI56-48

Brand:ebmpapst

Model:D2E097-BI56-48

Category:Centrifugal fans

Sales Hotline.:+86 10-62547612
E-mail: Jason@bjhengrui.cn / Ada@bjhengrui.cn / Martina@bjhengrui.cn
  • Introduction

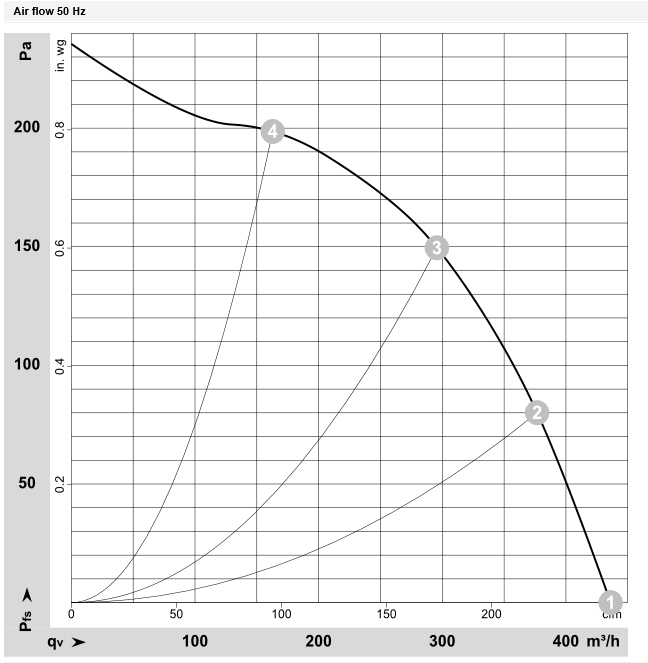

  • Performance
  • Application range
Technical description
Weight 1.68 kg
Motor size 52
Size 97 mm
Rotor surface Partly cast in aluminum
Impeller material Sheet steel, hot-dip galvanized
Housing material Sheet steel, hot-dip galvanized
Motor suspension Motor mounted with brackets on one side
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP20
Insulation class "B"
Moisture (F) / Environmental (H) protection class H0 - dry environment
Max. permitted ambient temp. for motor (transport/storage) + 80 °C
Min. permitted ambient temp. for motor (transport/storage) - 40 °C
Installation position Any
Condensation drainage holes None
Mode S1
Motor bearing Ball bearing
Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system) < 0,75 mA
Motor protection Thermal overload protector (TOP) internally connected
Protection class I (with customer connection of protective earth)
Conformity with standards EN 60335-1 / CE
Approval EAC / CCC
