简体中文Fan Insulation Class: A Small Specification That Can Have a Big Impact on Reliability
When selecting an industrial fan, engineers often focus on airflow, pressure, efficiency, and noise performance.
But there is another specification that is frequently overlooked: Insulation Class.
Although it may seem like a minor technical detail, insulation class can have a significant impact on motor reliability, service life, and performance in demanding environments.
Motor insulation materials gradually age when exposed to heat.The higher the operating temperature, the faster the insulation degrades, increasing the risk of motor failure.That's why insulation class is used to define how much temperature a motor's insulation system can safely withstand.
The most common insulation classes used in industrial fan applications are shown below:
 |
|

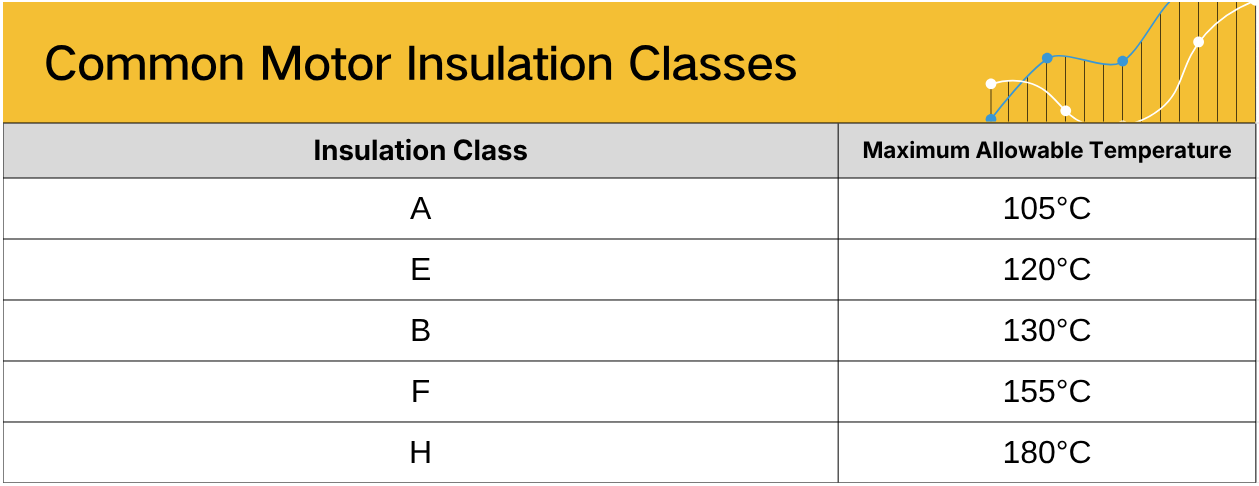

Pic.1 Common Motor Insulation Classes |
As the insulation class increases, the motor can tolerate higher operating temperatures while maintaining long-term reliability.
In modern HVAC, AHU, refrigeration, and industrial ventilation systems, Class B and Class F insulation are among the most widely used options.
With the growing adoption of EC fan technology, thermal management and motor efficiency have become even more important.
 |
|

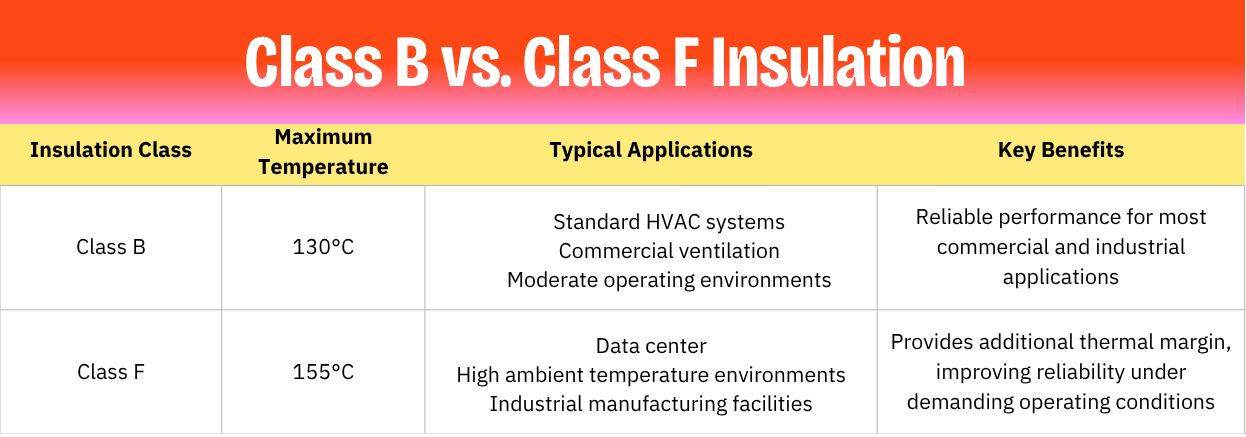

Pic.2 Comparison of Class B & Class F Insulation |
Many high-performance EC fans, including those used in AHUs, data centers, and industrial cooling systems, commonly utilize Class B or Class F insulation systems to balance efficiency, reliability, and service life.
For example, many ebm-papst EC fans are designed with Class B or Class F insulation, while smaller fan products may use Class E insulation depending on the application requirements.
Have you ever encountered motor failures related to excessive temperature or insulation aging?
We'd be interested to hear how engineers approach insulation class selection in HVAC, AHU, refrigeration, and industrial cooling projects.
If you're currently reviewing fan specifications for a new project or retrofit, feel free to reach out. Beijing Hengrui has supported a wide range of HVAC and industrial ventilation applications and would be happy to share practical selection recommendations.
