Selecting the right EC fan is not simply about choosing a fan size or motor power.

Whether you're designing an AHU, upgrading a ventilation system, or replacing an existing fan, the wrong selection can lead to insufficient airflow, excessive noise, higher energy consumption, and reduced system reliability.

Before selecting an ebm-papst EC fan, consider these seven key factors.

1. Define the Application

Start by identifying where the fan will be used.

Common applications include:

Different applications may require axial fans, backward-curved centrifugal fans, or EC plug fans.

2. Determine the Operating Point

The most important selection parameter is the operating point:

Airflow + Static Pressure

Airflow indicates how much air must be moved, while static pressure represents the resistance created by filters, coils, dampers, and ductwork.

For example:10,000 m³/h @ 600 Pa

Selecting based on airflow alone is one of the most common fan selection mistakes.

3. Consider Noise Requirements

Noise is becoming increasingly important in schools, hospitals, offices, and commercial buildings.

When evaluating a fan, review:

• Sound Pressure Level (SPL)

• Fan Speed

• Installation Conditions

One advantage of EC technology is the ability to reduce fan speed during partial-load operation, helping lower noise levels and energy consumption.

4. Verify Electrical Requirements

Ensure the fan matches the available power supply.

Check:

EC fans often support flexible speed control and simplified integration compared with traditional AC motor systems.

5. Check Installation Conditions

Before selecting a fan, confirm:

For retrofit projects, dimensional compatibility is especially important.

6. Define Control Requirements

Modern EC fans offer multiple control options, including:

Selecting the correct control method early can simplify future system integration.

7. Consider the Operating Environment

Environmental conditions directly affect fan lifespan and reliability.

Key considerations include:

For outdoor, coastal, or industrial applications, environmental protection should be considered during the selection stage.

Tip #1: Gather Basic System Information

Prepare the following information before contacting a supplier:

Application+Airflow Requirement+Static Pressure+Voltage+Installation Space

This can significantly speed up the selection process.

Tip #2: Check the Existing Fan Nameplate

For replacement projects, a photo of the existing fan nameplate is often the fastest way to identify an equivalent or upgraded solution.

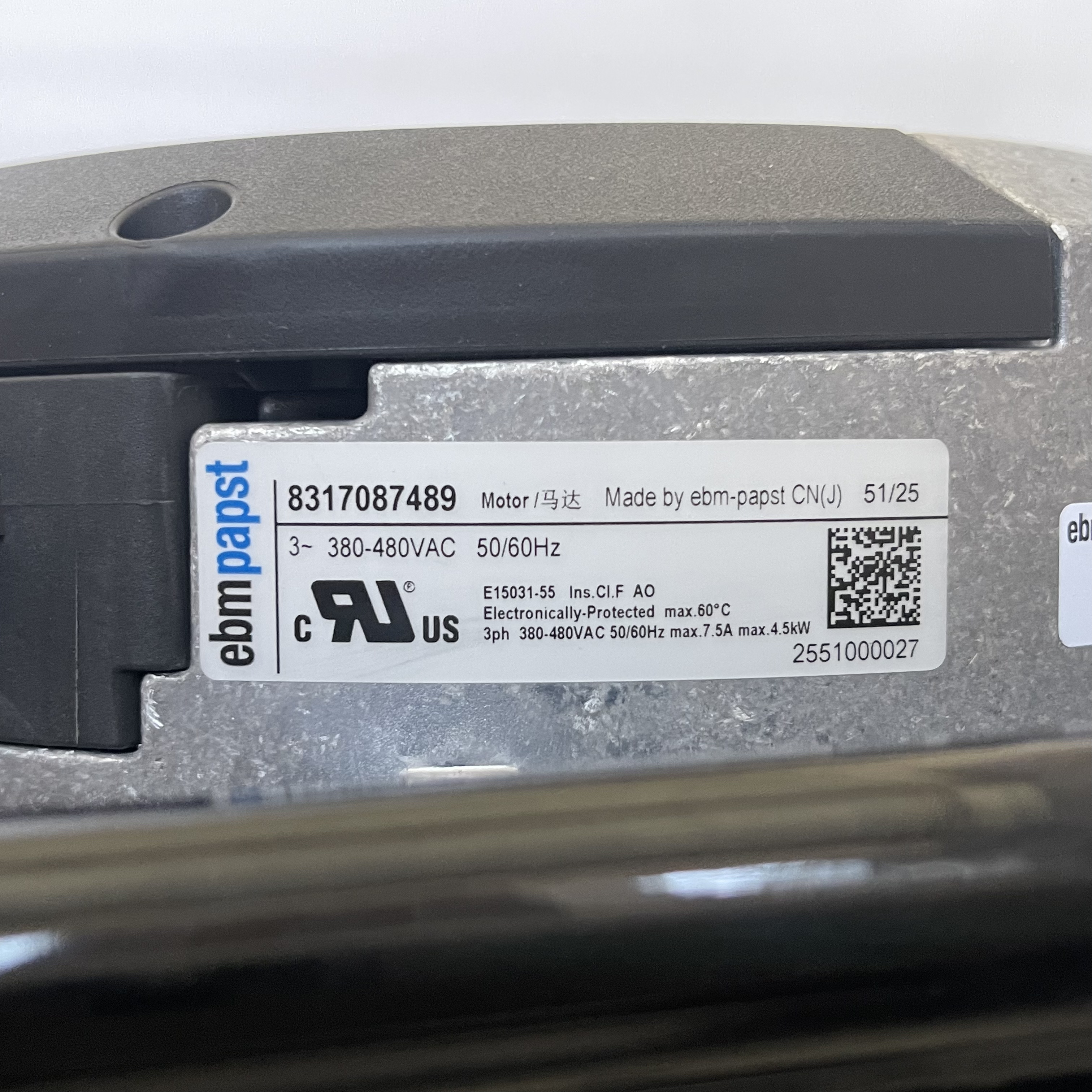

Pic.2 Nameplate of ebm-papst K3G450-PA31-03 C01
