EBM-Papst RG90-18/14N Blowers DC Centrifugal Fan, 135x135x38mm, 24VDC, 32.4CFM, 55dBA, 5.5W, Ball Bearing, Leadwires
Brand：ebmpapst
Model：RG90-18/14N
Category：Centrifugal fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn
- Specification
- Details
- Application
Ebmpapst Centrifugal Fan | Model： RG90-18/14N |Sufficient Stock
|
Nominal data |
||
|
Type |
RG90-18/14N |
|
|
Nominal voltage |
VDC |
24 |
|
Speed |
min-1 |
2200 |
|
Power input |
W |
6.2 |
|
Current draw |
A |
0.26 |
|
Air flow |
m³/h |
55 |
|
Min. ambient temperature |
°C |
-30 |
|
Max. ambient temperature |
°C |
75 |
|
ml = max. load · me = max. efficiency · fa = running at free air · cs = customer specs · cu = customer unit |
||
Ebmpapst Centrifugal Fan | Model： RG90-18/14N |Sufficient Stock
ebmpapst——RG90-18/14N——Structural drawing：

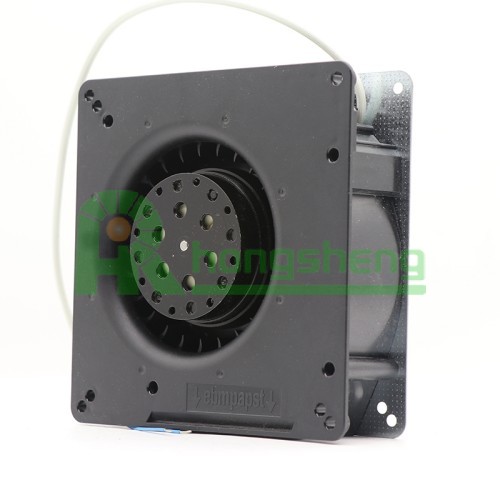

Ebmpapst RG90-18/14N cooling fan
Beijing Hengrui Hongsheng Mechanical & Electrical Equipment Co., Ltd. is an enterprise engaged in the sales of fans and industry control products. It mainly provides ventilation and heat dissipation products and industry control system accessories. Those products are widely used in ventilation, air conditioning, refrigeration, heating, electric automation, inverter, rail transit, HVAC (FFU/ AHU), air purification, wind power generation, industrial medical treatment, new energy vehicles and other industries.
Online answers to problems of fan:
1. How to select a fan?
2. How to prolong the service life of the fan?
3. How the fan works?
Please contact customer service if you have other technical queations.
