EBM-Papst 4114NXHHU-233 Fan; IP68; DC; 24V; 119x119x38mm; Sq; 153CFM; 13.6W; 60dBA; 4900RPM; Leadwires
Brand:ebmpapst
Model:4114NXHHU-233
Category:Axial fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand: |
ebmpapst |
|
Part No: |
4114 NXHHU-233 |
|
Fan Type: |
Compact Fan |
|
Rated Voltage(V): |
24 |
|
Size(mm): |
120*120*38 |
|
Max.Air Flow(m³/h): |
260 |
|
Max.Pressure(Pa): |
204 |
|
Input Power(W): |
12 |
|
Speed(RPM): |
4900 |
|
Noise(dB): |
60 |

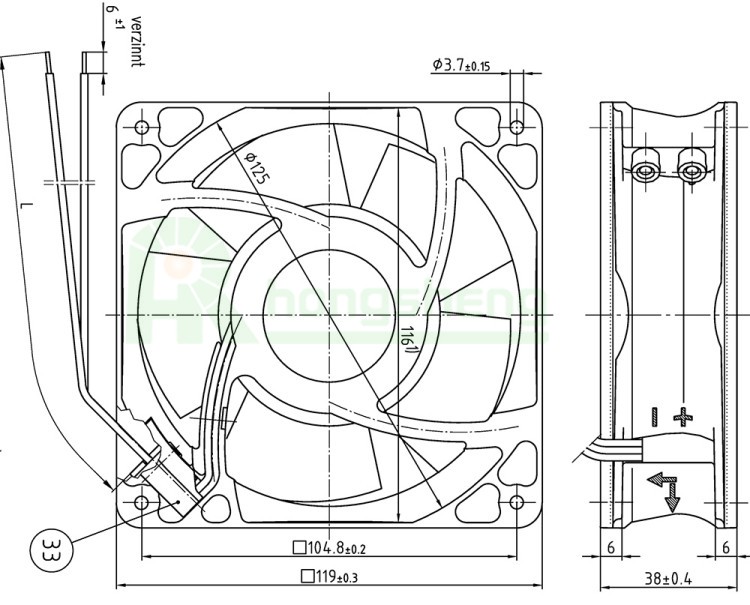

Specification drawing:

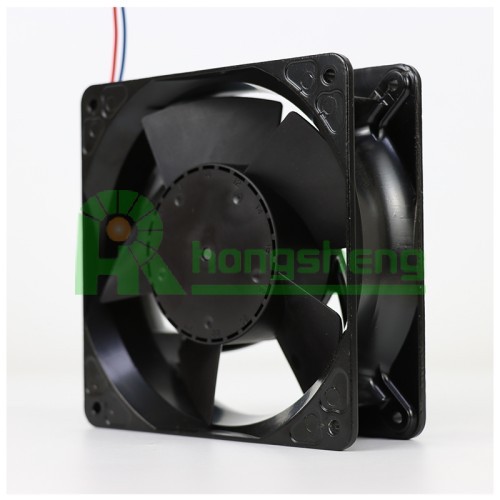

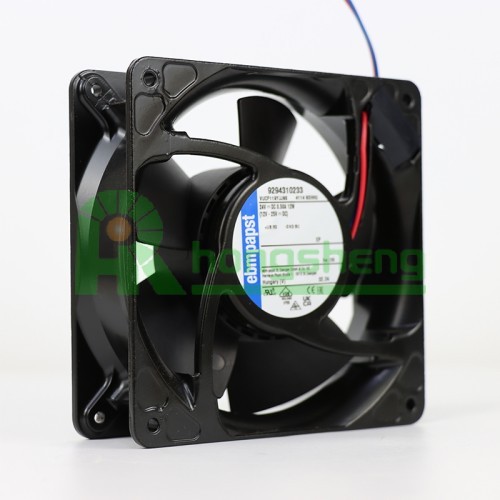

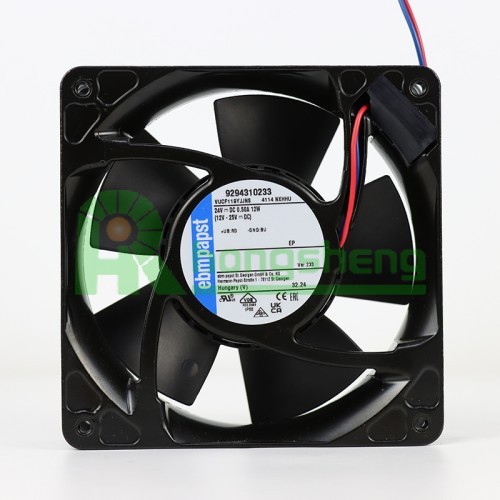

Item Show:



German ebmpapst fan 4114NXHHU-233 can be applied to rail transit industry
Rail transit fans have AC and EC motors. With their excellent performance, high dynamics, speed accuracy, energy-saving and space-saving design, it presents constant performance, low noise and long service life under high static pressure, and therefore it is widely used in modern transportation technology including door and window control, regulating switches and signals, cabin air conditioning and cooling equipment components.
