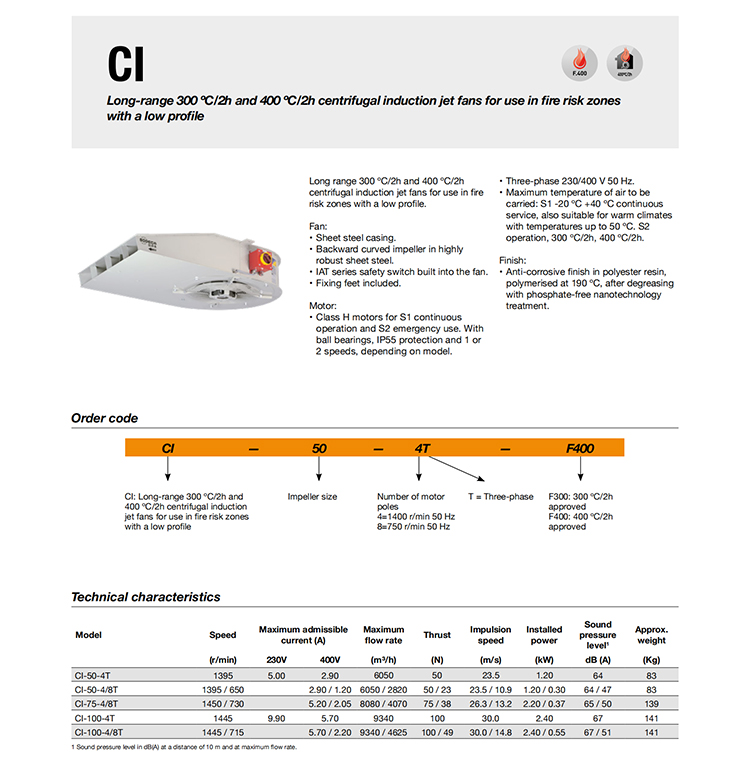

Smoke Extract Fan 400 ºC/2h - 300 ºC/2h

CI Smoke Extract Fans SODECA

Brand:SODECA

Model:CI

Category:-

Sales Hotline:+86 10-62547612 Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
  • Specification
  • Details
  • Application
Fan:
• Sheet steel casing.
• Backward curved impeller in highly robust sheet steel.
• IAT series safety switch built into the fan.
• Fixing feet included.
Motor:
• Class H motors for S1 continuous operation and S2 emergency use. With ball bearings, IP55 protection and 1 or 2 speeds, depending on model.
• Three-phase 230/400 V 50 Hz.
• Maximum temperature of air to be carried: S1 -25 ºC +40 ºC continuous service, also suitable for warm climates with temperatures up to 50 ºC. S2 operation, 300 ºC/2h, 400 ºC/2h.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
Fan:
• Sheet steel casing.
• Backward curved impeller in highly robust sheet steel.
• IAT series safety switch built into the fan.
• Fixing feet included.
Motor:
• Class H motors for S1 continuous operation and S2 emergency use. With ball bearings, IP55 protection and 1 or 2 speeds, depending on model.
• Three-phase 230/400 V 50 Hz.
• Maximum temperature of air to be carried: S1 -25 ºC +40 ºC continuous service, also suitable for warm climates with temperatures up to 50 ºC. S2 operation, 300 ºC/2h, 400 ºC/2h.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
