CA/ATEX ATEX Fans
Brand：SODECA
Model：CA/ATEX
Category：
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application

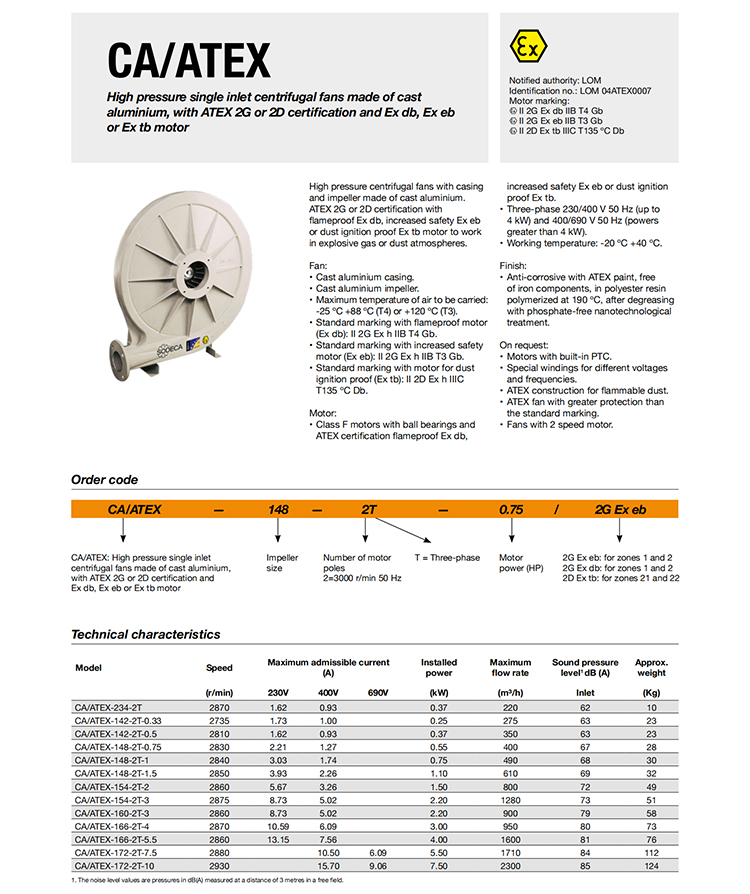

High pressure single inlet centrifugal fans made of cast aluminium, with ATEX 2G or 2D certification and Ex db, Ex eb or Ex tb motor
High pressure centrifugal fans with casing and impeller made of cast aluminium. ATEX 2G or 2D certification with flameproof Ex db, increased safety Ex eb or dust ignition proof Ex tb motor to work in explosive gas or dust atmospheres.
Fan:
• Cast aluminium casing.
• Cast aluminium impeller.
• Maximum temperature of air to be carried: -25 ºC +88 ºC (T4) or +120 ºC (T3).
• Standard marking with flameproof motor (Ex db): II 2G Ex h IIB T4 Gb.
• Standard marking with increased safety motor (Ex eb): II 2G Ex h IIB T3 Gb.
• Standard marking with motor for dust ignition proof (Ex tb): II 2D Ex h IIIC T135 ºC Db.
Motor:
• Class F motors with ball bearings and ATEX certification flameproof Ex db, increased safety Ex eb or dust ignition proof Ex tb.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -20 ºC +40 ºC.
Finish:
• Anti-corrosive with ATEX paint, free of iron components, in polyester resin polymerized at 190 ºC, after degreasing with phosphate-free nanotechnological treatment.
On request:
• Motors with built-in PTC.
• Special windings for different voltages and frequencies.
• ATEX construction for flammable dust.
• ATEX fan with greater protection than the standard marking.
• Fans with 2 speed motor.
High pressure single inlet centrifugal fans made of cast aluminium, with ATEX 2G or 2D certification and Ex db, Ex eb or Ex tb motor
High pressure centrifugal fans with casing and impeller made of cast aluminium. ATEX 2G or 2D certification with flameproof Ex db, increased safety Ex eb or dust ignition proof Ex tb motor to work in explosive gas or dust atmospheres.
Fan:
• Cast aluminium casing.
• Cast aluminium impeller.
• Maximum temperature of air to be carried: -25 ºC +88 ºC (T4) or +120 ºC (T3).
• Standard marking with flameproof motor (Ex db): II 2G Ex h IIB T4 Gb.
• Standard marking with increased safety motor (Ex eb): II 2G Ex h IIB T3 Gb.
• Standard marking with motor for dust ignition proof (Ex tb): II 2D Ex h IIIC T135 ºC Db.
Motor:
• Class F motors with ball bearings and ATEX certification flameproof Ex db, increased safety Ex eb or dust ignition proof Ex tb.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -20 ºC +40 ºC.
Finish:
• Anti-corrosive with ATEX paint, free of iron components, in polyester resin polymerized at 190 ºC, after degreasing with phosphate-free nanotechnological treatment.
On request:
• Motors with built-in PTC.
• Special windings for different voltages and frequencies.
• ATEX construction for flammable dust.
• ATEX fan with greater protection than the standard marking.
• Fans with 2 speed motor.
