HTP Fans For Industrial Applications
Brand：SODECA
Model：HTP
Category：
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application

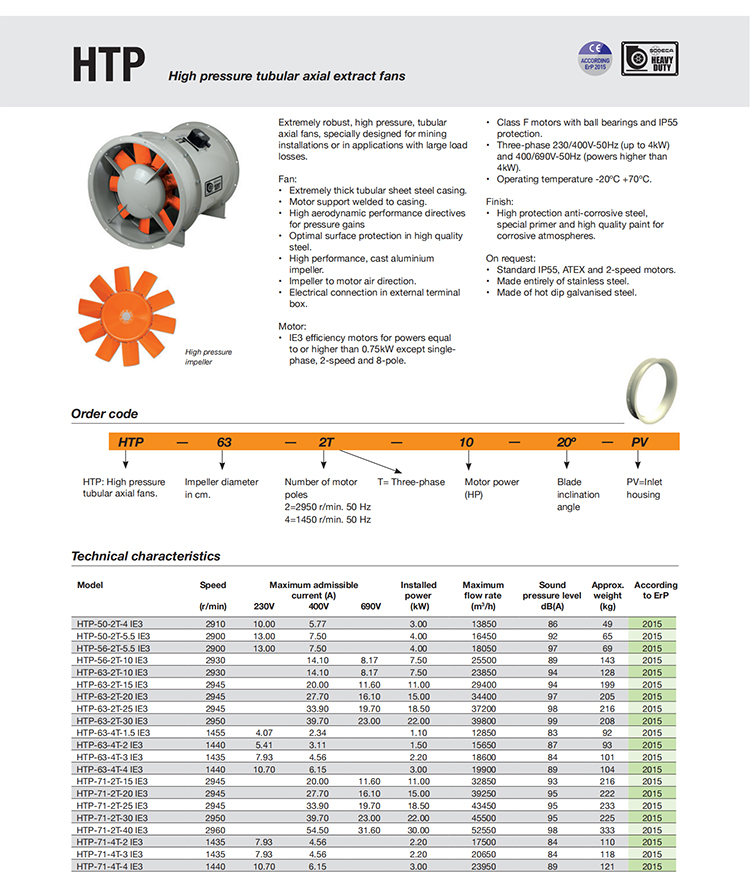

High pressure tubular axial extract fans
High pressure, extremely robust tubular axial fans, specially designed for mining installations or in applications with large load losses.
Fan:
• Large thickness tubular sheet steel casing.
• Motor support welded to the casing.
• High aerodynamic performance guidelines for pressure gain.
• Optimal surface protection by high quality steel.
• High performance, cast aluminium impeller.
• Airflow direction from impeller to motor.
• Electrical connection in external terminal box.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Three-phase with IE4 efficiency for power from 75 kW to 200 kW, except 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +70 ºC.
Finish:
• High protection anti-corrosive steel, special primer and high quality paint for corrosive atmospheres.
On request:
• IP55 standard motors, ATEX and 2 speed motors.
• Total stainless steel construction.
• Hot dip galvanised steel construction.
High pressure tubular axial extract fans
High pressure, extremely robust tubular axial fans, specially designed for mining installations or in applications with large load losses.
Fan:
• Large thickness tubular sheet steel casing.
• Motor support welded to the casing.
• High aerodynamic performance guidelines for pressure gain.
• Optimal surface protection by high quality steel.
• High performance, cast aluminium impeller.
• Airflow direction from impeller to motor.
• Electrical connection in external terminal box.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Three-phase with IE4 efficiency for power from 75 kW to 200 kW, except 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +70 ºC.
Finish:
• High protection anti-corrosive steel, special primer and high quality paint for corrosive atmospheres.
On request:
• IP55 standard motors, ATEX and 2 speed motors.
• Total stainless steel construction.
• Hot dip galvanised steel construction.
