HBA Fans For Industrial Applications
Brand：SODECA
Model：HBA
Category：
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application

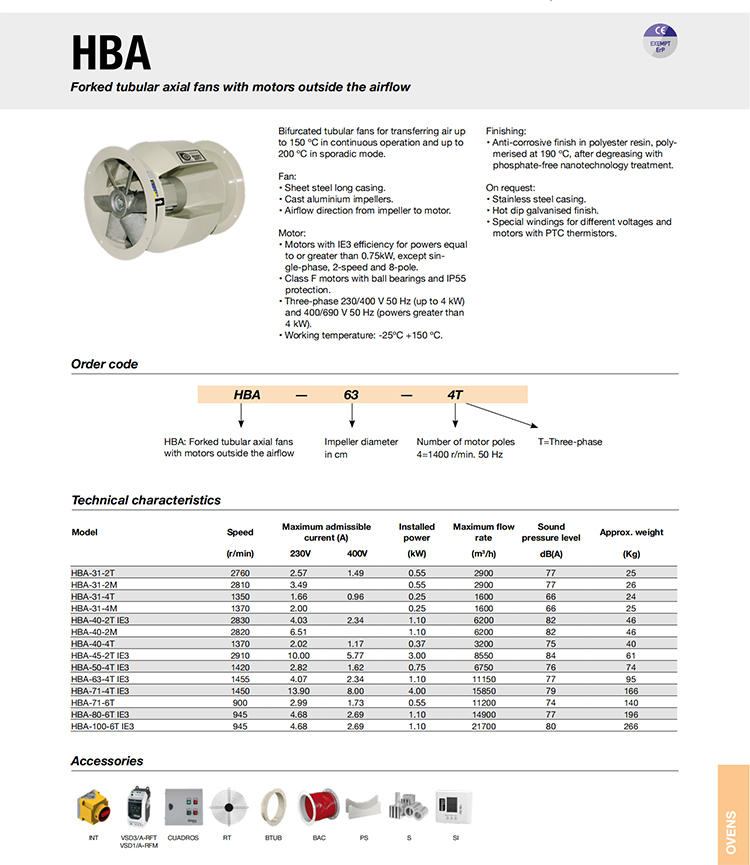

Bifurcated tubular axial fans with motors outside the airflow
Bifurcated tubular fans for transferring air up to 150 ºC in continuous operation and up to 200 ºC in sporadic mode.
Fan:
• Tubular casing in sheet steel.
• Cast aluminium impellers.
• Airflow direction from impeller to motor.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
On request:
• Stainless steel casing.
• Hot dip galvanised finish.
• Special windings for different voltages and motors with PTC thermistors.
Bifurcated tubular axial fans with motors outside the airflow
Bifurcated tubular fans for transferring air up to 150 ºC in continuous operation and up to 200 ºC in sporadic mode.
Fan:
• Tubular casing in sheet steel.
• Cast aluminium impellers.
• Airflow direction from impeller to motor.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
On request:
• Stainless steel casing.
• Hot dip galvanised finish.
• Special windings for different voltages and motors with PTC thermistors.
