CMTB Fans For Industrial Applications
Brand：SODECA
Model：CMTB
Category：
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application

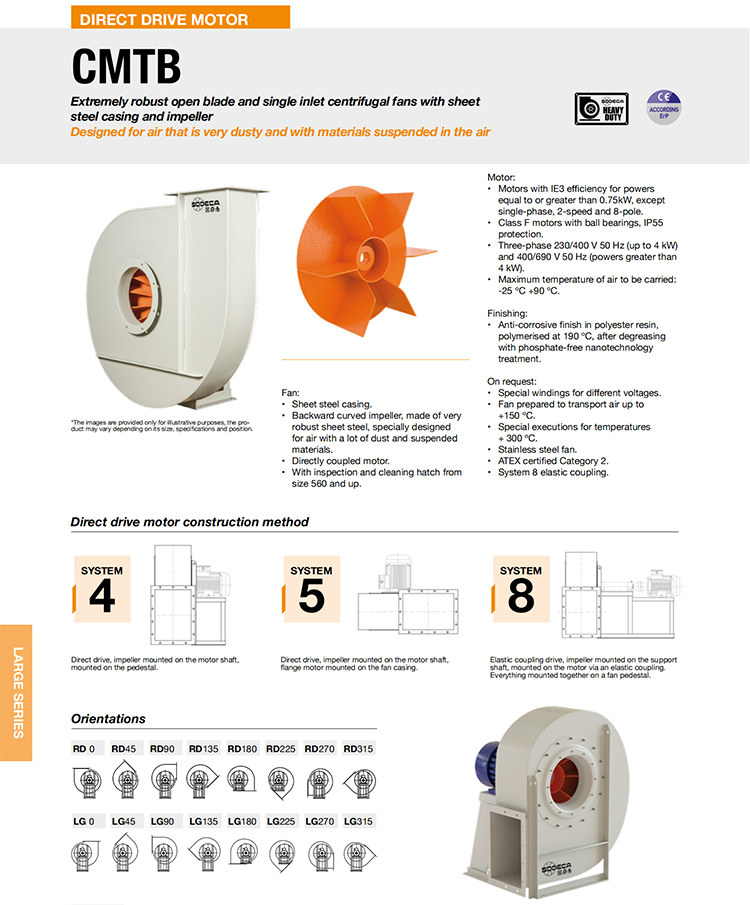

Extremely robust open blade and single inlet centrifugal fans with sheet steel casing and impeller
Fan:
• Sheet steel casing.
• Straight blade impeller made of highly robust sheet steel, specially designed for air with a lot of dust and suspended materials.
• Fan impeller mounted directly on the motor shaft.
• With inspection and cleaning hatch from size 560 and up.
• Maximum temperature of air to be carried: -25 ºC +90 ºC.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
On request:
• Special windings for different voltages.
• Fan prepared to transport air up to +150 ºC.
• Special executions for temperatures + 300 ºC.
• Stainless steel fan.
• ATEX certified Category 2.
• Other arrangements like ARR.8.
Extremely robust open blade and single inlet centrifugal fans with sheet steel casing and impeller
Fan:
• Sheet steel casing.
• Straight blade impeller made of highly robust sheet steel, specially designed for air with a lot of dust and suspended materials.
• Fan impeller mounted directly on the motor shaft.
• With inspection and cleaning hatch from size 560 and up.
• Maximum temperature of air to be carried: -25 ºC +90 ºC.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
On request:
• Special windings for different voltages.
• Fan prepared to transport air up to +150 ºC.
• Special executions for temperatures + 300 ºC.
• Stainless steel fan.
• ATEX certified Category 2.
• Other arrangements like ARR.8.
