CMPI Fans For Industrial Applications
Brand：SODECA
Model：CMPI
Category：
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application

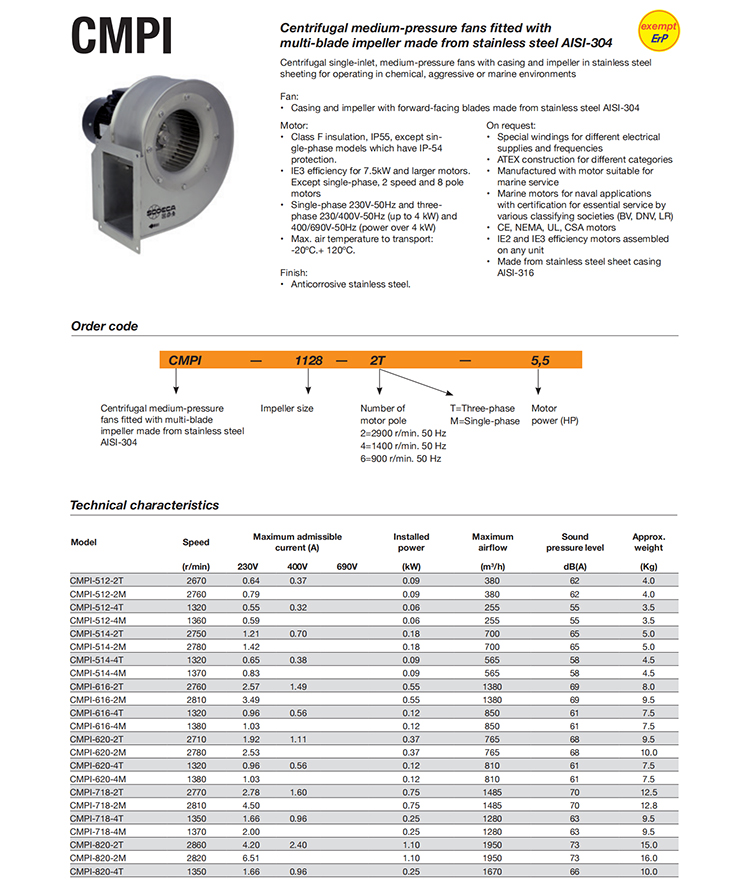

Medium pressure centrifugal extractor fans fitted with forward curved impeller made of AISI-304 stainless steel
Medium pressure, single inlet, centrifugal extractor fans with casing and impeller in stainless steel sheet for working in chemical, aggressive or marine environments.
Fan:
• Housing and forward curved impeller made of AISI 304 stainless steel.
• Maximum temperature of air to be carried: -25 ºC +120 ºC.
Motor:
• Class F motors with ball bearings and IP55 protection except single-phase models with IP54 protection.
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Anti-corrosive in stainless steel.
On request:
• Special windings for different voltages and frequencies.
• ATEX construction for different categories.
• Constructed with marine service motors.
• Marine motors for naval applications, certified for essential service according to different classification entities (BV. DNV. LR).
• CE, NEMA, UL, CSA motors.
• AISI-316 stainless steel sheet construction.
Medium pressure centrifugal extractor fans fitted with forward curved impeller made of AISI-304 stainless steel
Medium pressure, single inlet, centrifugal extractor fans with casing and impeller in stainless steel sheet for working in chemical, aggressive or marine environments.
Fan:
• Housing and forward curved impeller made of AISI 304 stainless steel.
• Maximum temperature of air to be carried: -25 ºC +120 ºC.
Motor:
• Class F motors with ball bearings and IP55 protection except single-phase models with IP54 protection.
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Anti-corrosive in stainless steel.
On request:
• Special windings for different voltages and frequencies.
• ATEX construction for different categories.
• Constructed with marine service motors.
• Marine motors for naval applications, certified for essential service according to different classification entities (BV. DNV. LR).
• CE, NEMA, UL, CSA motors.
• AISI-316 stainless steel sheet construction.
