EBM-Papst 2214F/2TDHOU-754 DC Fan Ball Bearing 24V 36W 4250RPM Flange Mount
Brand:ebmpapst
Model:2214F/2TDHOU-754
Category:Axial fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn
- Specification
- Details
- Application
ebmpapst Axial Compact Fan | model:2214F/2TDHOU-754
Nominal data |
||
Type |
2214F/2TDHOU-754 |
|
Nominal voltage |
VDC |
24 |
Power input |
W |
36 |
Current draw |
A |
1.45 |
Speed |
RPM |
4250 |
Max. ambient temperature |
°C |
70 |
Min. ambient temperature |
°C |
-20 |
ebmpapst ——2214F/2TDHOU-754——Nominal data:

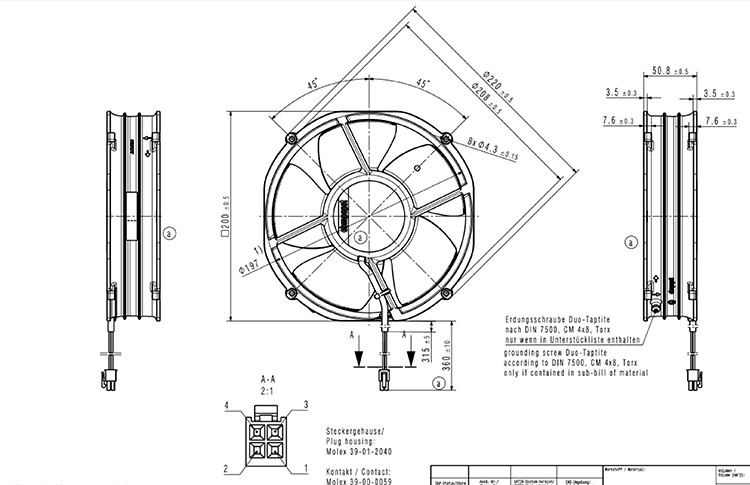

ebmpapst ——2214F/2TDHOU-754——Structural drawing:

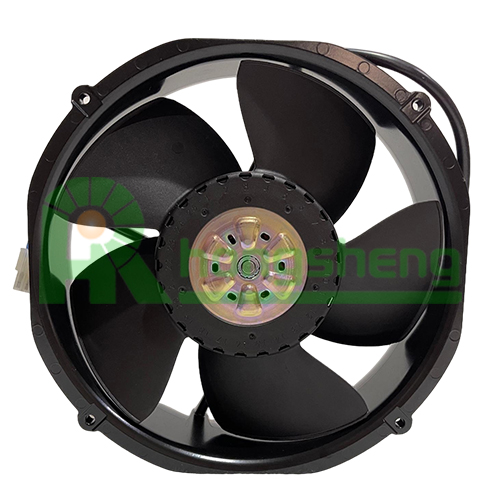

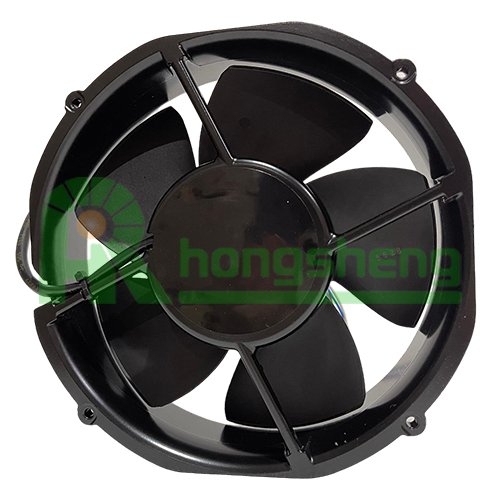

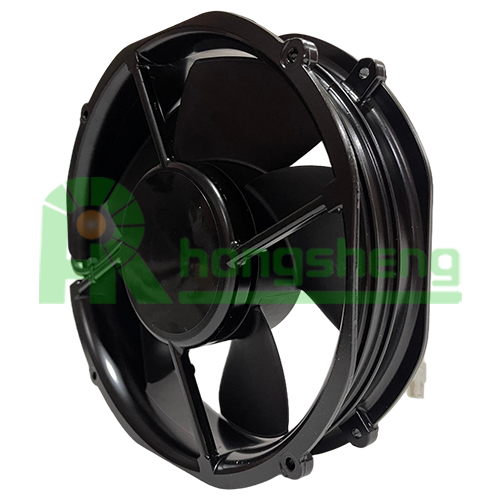

Ebmpapst 2214F/2TDHOU-754 axial flow fan
Beijing Hengrui Hongsheng Mechanical & Electrical Equipment Co., Ltd. is an enterprise engaged in the sales of fans and industry control products. It mainly provides ventilation and heat dissipation products and industry control system accessories. Those products are widely used in ventilation, air conditioning, refrigeration, heating, electric automation, inverter, rail transit, HVAC (FFU/ AHU), air purification, wind power generation, industrial medical treatment, new energy vehicles and other industries.
Online answers to problems of fan:
1. How to select a fan?
2. How to prolong the service life of the fan?
3. How the fan works?
Please contact customer service if you have other technical queations.
