Ebm-papst W4E560-GN03-01 400V 560MM 11410m³/h Axial Fan For Condenser Evaporator
Brand：ebm-papst (100% Genuine)
Model：W4E560-GN03-01
Category：Axial fans
Description： 100% genuine ebmpapst W4E560-GN03-01 axial fan, 230V, 1010W, IP54 condenser and evaporator cooling fan. CE/VDE approved, stable airflow, large stock, fast delivery.
- Specification
- Details
- Application
Nominal data:
|
Brand： |
ebmpapst |
|
Part No： |
W4E560-GN03-01 |
|
Fan Type： |
Axial Fan |
|
Rated Voltage(V)： |
230 |
|
Size(mm)： |
560 |
|
Max.Air Flow(m³/h)： |
11410 |
|
Max.Pressure(Pa)： |
120 |
|
Input Power(W)： |
1010 |
|
Speed(RPM)： |
1185 |
|
Noise(dB)： |
67 |

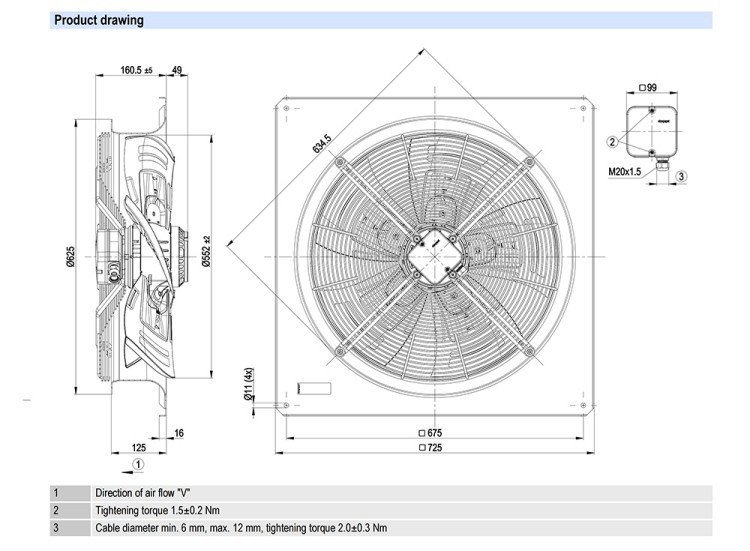

Specification Drawing:
High-Airflow 560mm Axial Fan for Refrigeration & Industrial Condenser Systems
The ebmpapst W4E560-GN03-01 axial fan is engineered for refrigeration, condenser, evaporator, and industrial HVAC systems requiring stable airflow performance and reliable continuous-duty operation. Featuring a 560mm fan size, 230V single-phase motor, 1010W power input, and 120 Pa maximum pressure, this industrial axial fan delivers dependable cooling performance for demanding thermal management applications.Unlike lightweight commercial cooling fans, the W4E560-GN03-01 utilizes a cast aluminum rotor combined with PP-coated aluminum blade inserts to provide enhanced structural stability and long-term operational reliability. Its -5° blade angle design helps improve airflow efficiency and supports consistent heat exchange performance in refrigeration systems and industrial cooling equipment.Equipped with IP54 protection, thermal overload protector (TOP), ball bearing motor construction, and compliance with EN 61800-5-1 standards, this 100% genuine ebmpapst cooling fan is suitable for condensers, evaporators, dry coolers, and process cooling systems operating in industrial environments. We maintain sufficient inventory and provide fast global shipping for OEM projects and urgent replacement requirements.
Product Details
 |
 |
Why choose us ?► Large quantity of multi brand fans in stock supply
Main Application Scenarios
Commercial Refrigeration Condenser Units
