Ebm-papst W3G910-OV04-E1 400V 23610CFM EC Axial Fan For Dry Coolers
Brand：ebm-papst (100% Genuine)
Model：W3G910-OV04-E1
Category：Axial fans
Description： 100% genuine ebm-papst 910mm EC axial fan. Offers 23610 CFM and 340 Pa pressure. Optimizes industrial dry cooler layouts. Deep warehouse inventory ready for immediate fast shipping.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand：
|
ebm-papst
|
|
Part No：
|
W3G910-OV04-E1
|
|
Fan Type：
|
Axial Fan
|
|
Rated Voltage(V)：
|
400
|
|
Size(mm)：
|
910
|
|
Max.Air Flow(CFM)：
|
23610
|
|
Input Power(W)：
|
4400
|
|
Speed(RPM)：
|
1190
|
|
Max.Pressure(Pa):
|
340
|

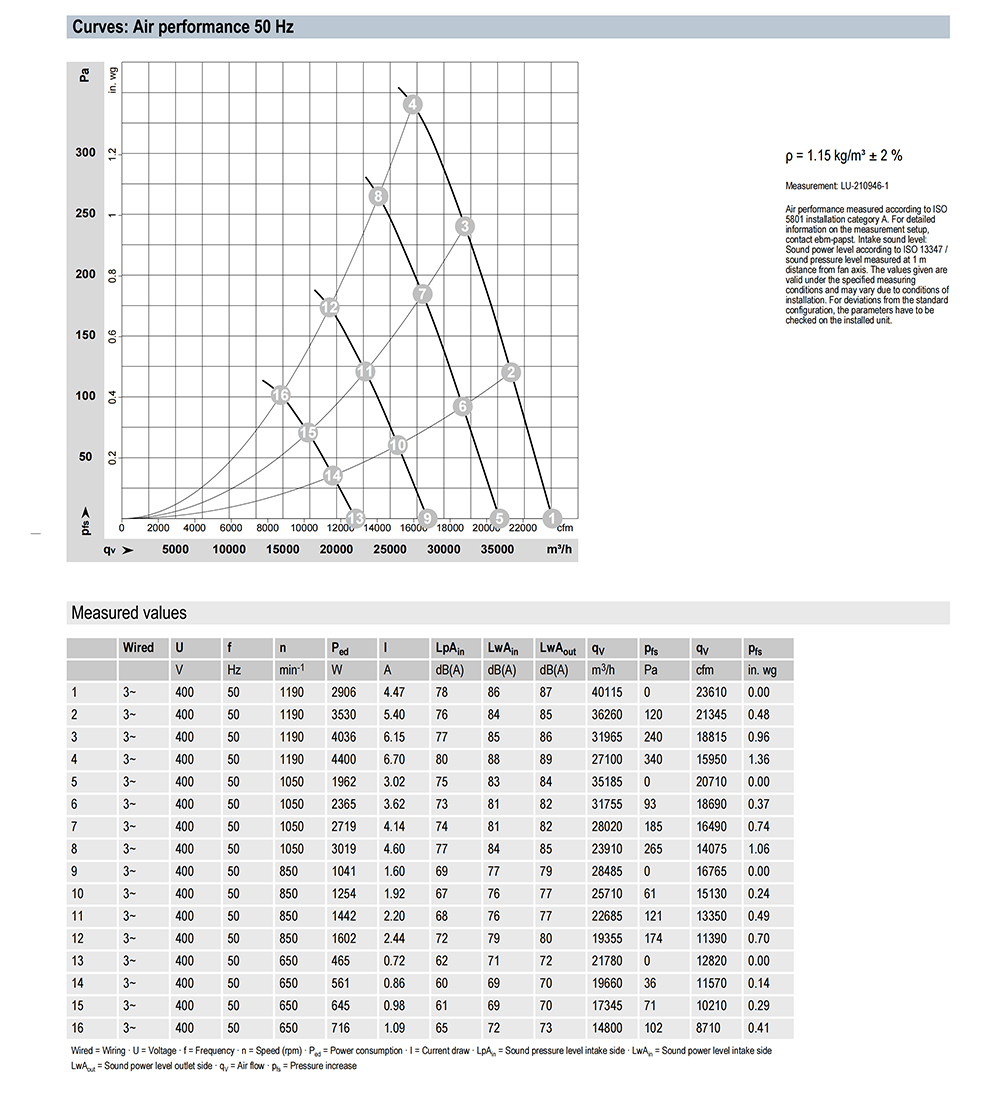

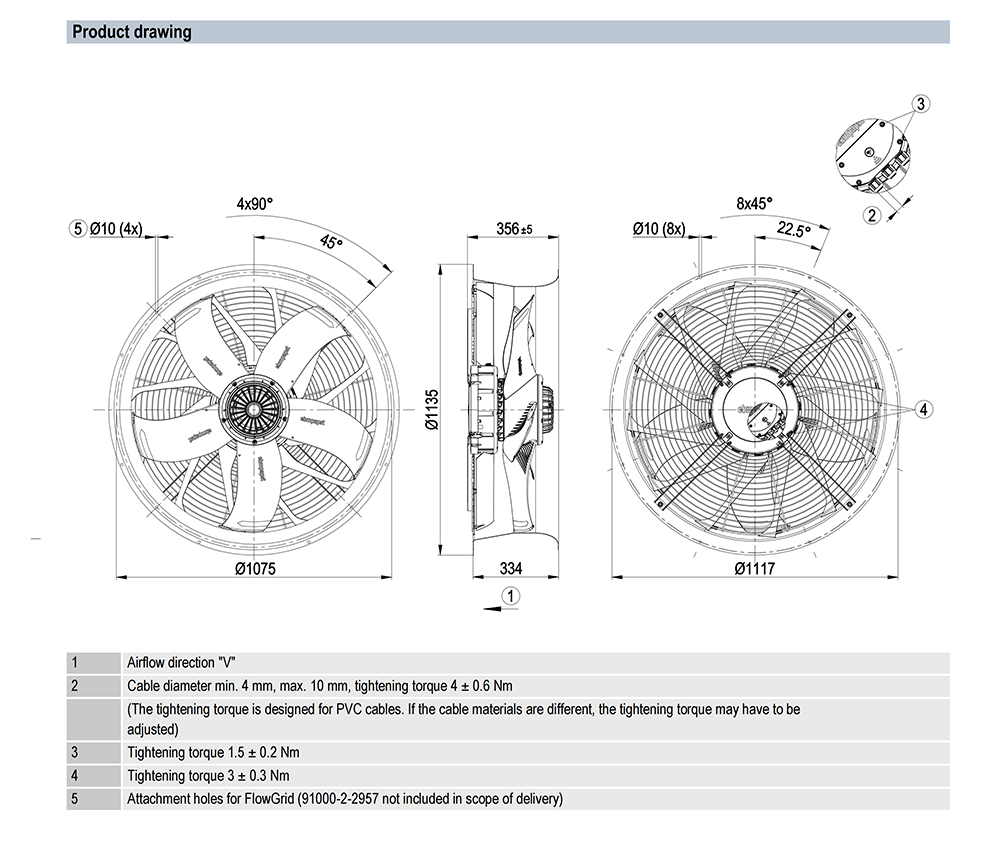

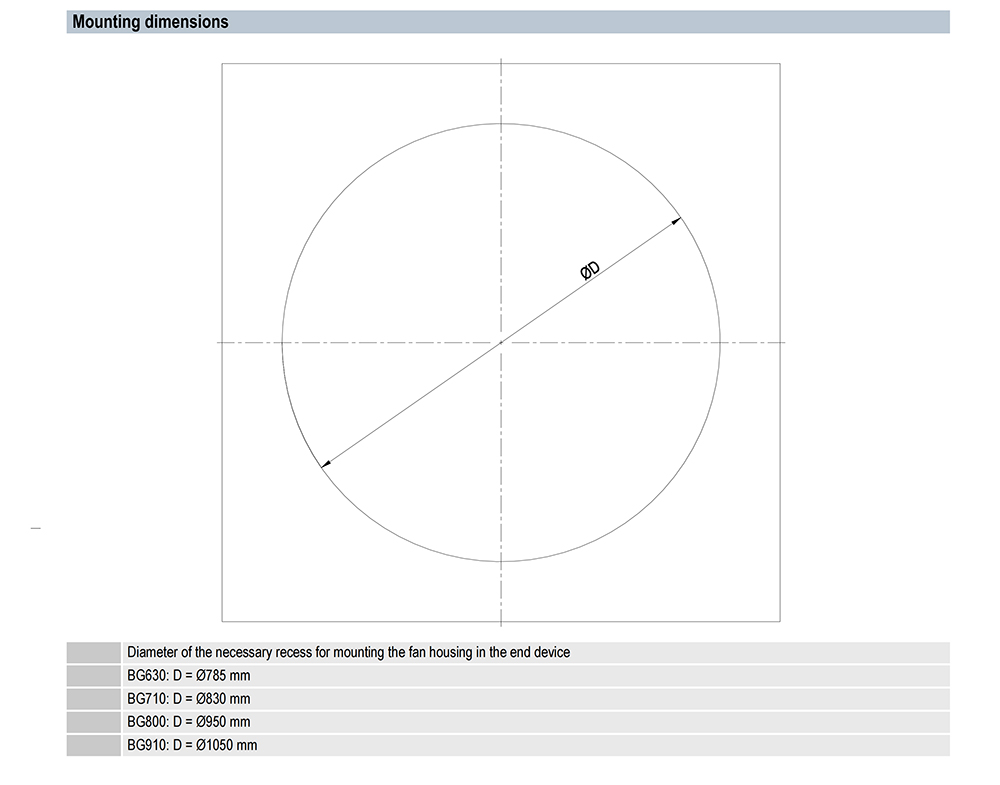

Specification Drawing:
Reliable Cooling Solution for Industrial & HVAC Applications
The W3G910-OV04-E1 EC axial fan is designed for high-efficiency airflow in demanding environments. It is widely used as a replacement for ebm-papst fans in industrial dry coolers, ensuring stable performance, low energy consumption, and long service life. Featuring a 5-blade PP plastic impeller and an integrated internal diffuser, it provides exceptional volumetric capacity and optimized static pressure delivery across high-density outdoor heat exchanger coils.
Product Details
（If you need more installation pictures or detailed technical PDF documents of ebm-papst W3G910-OV04-E1, please feel free to contact us at any time.）
Why choose us ?► Large quantity of multi brand fans in stock supply
► Global Fast Delivery
► Professional selection support
► Experience in industrial cooling solutions
► Highly trusted by HVAC service providers
Main Application Scenarios
Hyperscale Industrial Dry Coolers:
Serves as a high-output, top-mounted exhaust air mover for massive V-shaped or flat-bed dry cooling installations, efficiently rejecting heat from heavy process fluids without consuming water.
Commercial Building Chiller Plant Loop Infrastructure:
Deployed in modular outdoor dry cooler arrays supporting central HVAC water-cooled chiller plants, managing immense thermal loads during peak seasonal ambient heat waves.
Process Fluid Condensing Systems:
Fits perfectly onto horizontal fluid dry cooling tables within chemical processing plants and large food refrigeration warehouses, providing uniform air distribution through structural pipe networks.
Frequently Asked QuestionsQ1: How do the integrated diffuser and V-direction airflow of the W3G910-OV04-E1 help maximize energy efficiency in large dry coolers?
The built-in PP plastic internal diffuser dramatically improves aerodynamic flow conversion, converting kinetic energy into useful static pressure. Operating with a 0° blade pitch in a V-direction airflow arrangement, it maximizes discharge velocity through thick cooling coils, comfortably exceeding strict ErP Directive efficiency thresholds to minimize total cost of ownership (TCO).
Q2: Can this 910mm fan maintain 24/7 continuous duty in harsh outdoor cooling fields prone to sub-zero winters?
Absolutely. This heavy-duty fan is rated for S1 continuous operation with an IP55 ingress rating and H2 moisture protection. Its rugged design permits an occasional start-up down to -40°C, and its permanently lubricated ball bearings ensure reliable 24/7 process cooling through extreme seasonal weather fluctuations without structural breakdown.

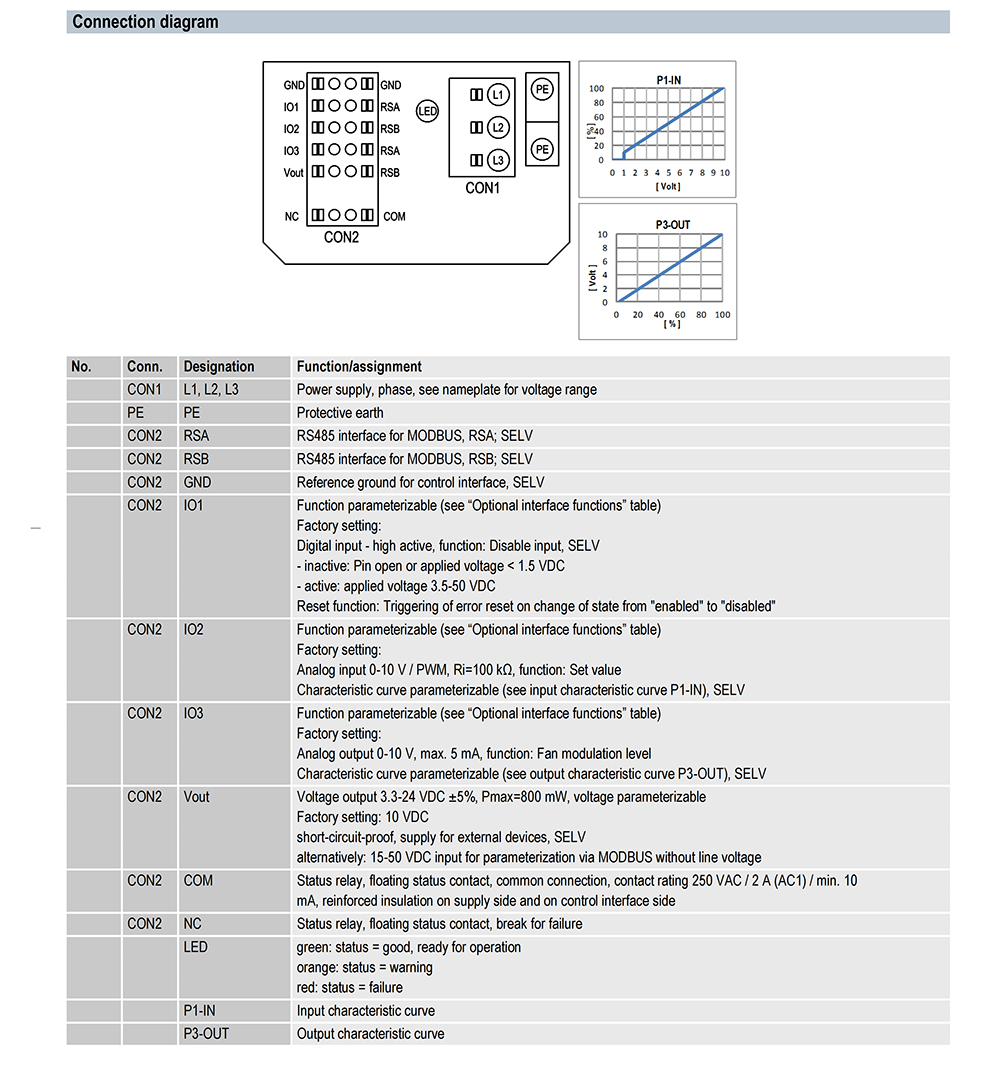

Q3: What digital interface options are available for data center or factory automation networks to manage this model remotely?
It is equipped with an integrated RS-485 Modbus-RTU (MODBUS V6.3) protocol interface and a built-in PI controller. This setup allows plant operators to gather real-time telemetry, track electronic thermal overload protections, and automate speed profiles directly via the facility's central Building Management System (BMS) for enhanced energy savings.
