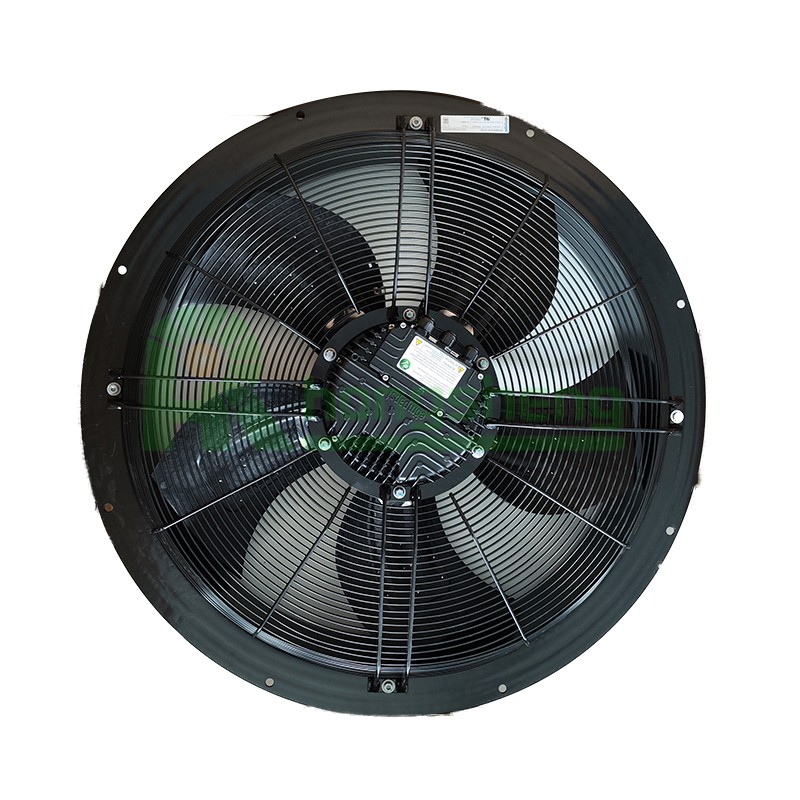

Ebm-papst W3G800-FL10-36 400V 25095CFM EC Axial Fan For Industrial Dry Coolers and Cooling Towers
Brand：ebm-papst (100% Genuine)
Model：W3G800-FL10-36
Category：Axial fans
Description： 100% genuine ebm-papst 800mm EC axial fan. Delivering 20595 CFM and 540 Pa pressure, it optimizes industrial dry coolers and cooling towers. Deep inventory ready for fast global shipping.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application

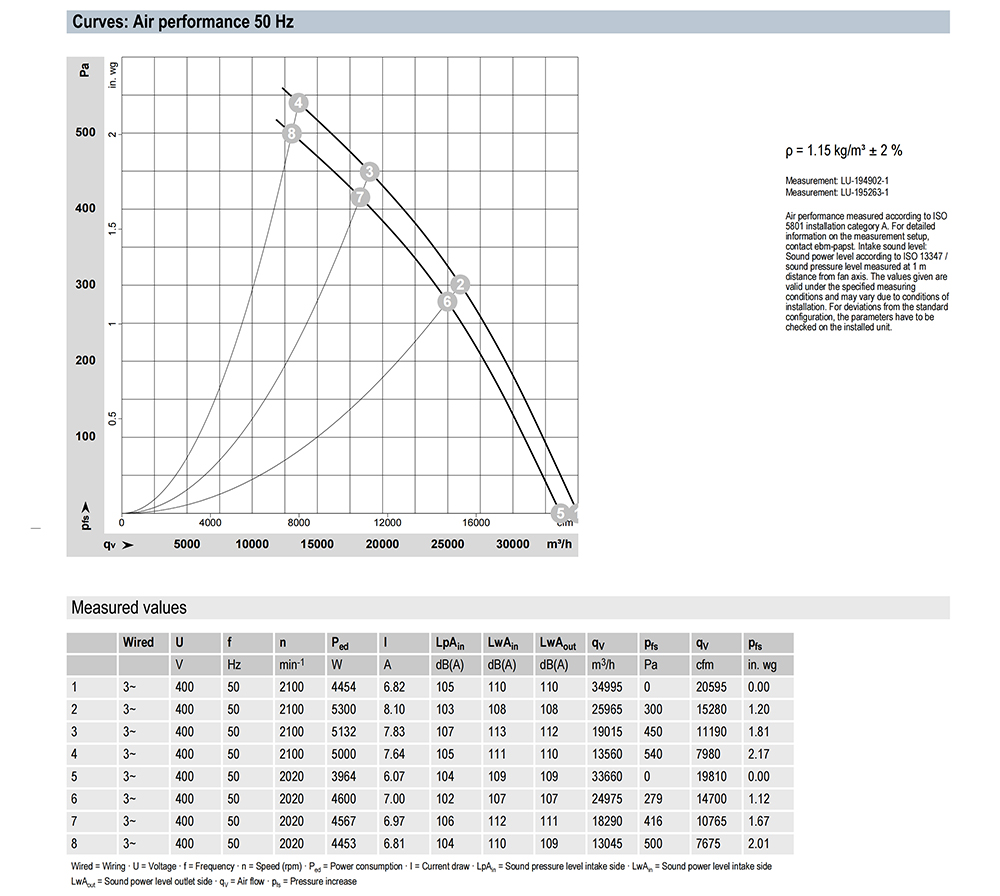

Nominal data:
|
Brand：
|
ebm-papst
|
|
Part No：
|
W3G800-FL10-36
|
|
Fan Type：
|
Axial Fan
|
|
Rated Voltage(V)：
|
400
|
|
Size(mm)：
|
800
|
|
Max.Air Flow(CFM)：
|
20595
|
|
Input Power(W)：
|
5300
|
|
Speed(RPM)：
|
2100
|
|
Max.Pressure(Pa):
|
540
|

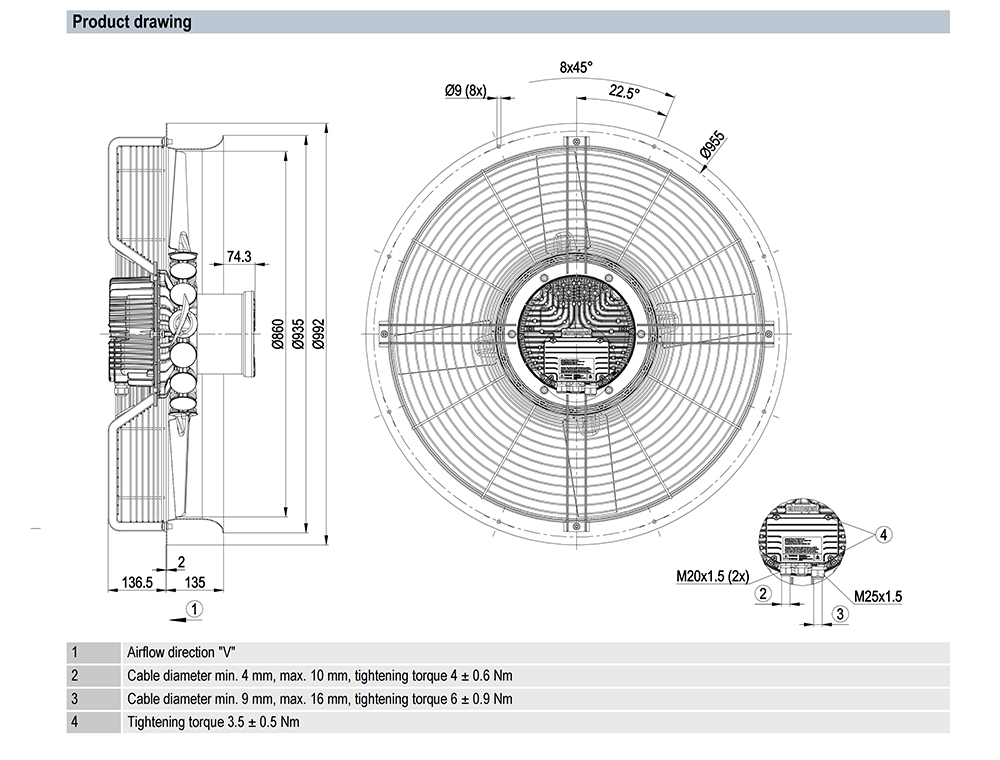

Specification Drawing:
Reliable Cooling Solution for Industrial & HVAC Applications
The W3G800-FL10-36 EC axial fan is designed for high-efficiency airflow in demanding environments. It is widely used as a replacement for ebm-papst fans in cooling towers and dry coolers, ensuring stable performance, low energy consumption, and long service life. Driven by a high-output 5300W power system, it delivers robust volumetric airflow to overcome dense heat exchanger resistance under extreme processing loads.
Product Details
（If you need more installation pictures or detailed technical PDF documents of ebm-papst W3G800-FL10-36, please feel free to contact us at any time.）
Why choose us ?► Large quantity of multi brand fans in stock supply
► Global Fast Delivery
► Professional selection support
► Experience in industrial cooling solutions
► Highly trusted by HVAC service providers
Main Application Scenarios
Induced-Draft Cooling Towers:
Mounts directly at the top of structural cooling tower units to pull wet, humid exhaust air upward, speeding up evaporative heat rejection loops for large building climate plants.
Heavy-Duty Industrial Dry Coolers:
Serves as a high-capacity air mover on large flat-bed or V-shaped dry cooling tables, forcing ambient air across internal copper-tube aluminum-fin coils to chill process fluids.
Hybrid Close-Circuit Cooling Systems:
Integrated into advanced fluid coolers that alternate dynamically between dry and wet spray modes, maintaining optimal thermodynamic efficiency throughout shifting summer temperatures.
Frequently Asked QuestionsQ1: Can the W3G800-FL10-36 handle the high humidity and wet exhaust conditions found in induced-draft cooling towers?
Yes. This 800mm industrial fan features high-grade IP55 moisture and corrosion protection along with a specialized drainage hole design on the rotor side. The internal EC motor coils and drive electronics are fully sealed against water spray and prolonged high humidity, making it perfect for demanding cooling tower environments.
Q2: How does the 2100 RPM high-speed capability of this EC axial fan help lower the total cost of ownership (TCO) for dry coolers?
Running at an optimized speed of 2100 RPM, it generates a powerful 540 Pa static pressure. This allows it to push high-volume airflow through thicker, more compact heat exchanger blocks. By providing greater cooling density per square meter, it helps systems achieve ErP directive compliance while shrinking hardware footprints and lowering long-term total cost of ownership (TCO).
Q3: What input control options are supported to run this fan efficiently in automated HVAC cooling loops?

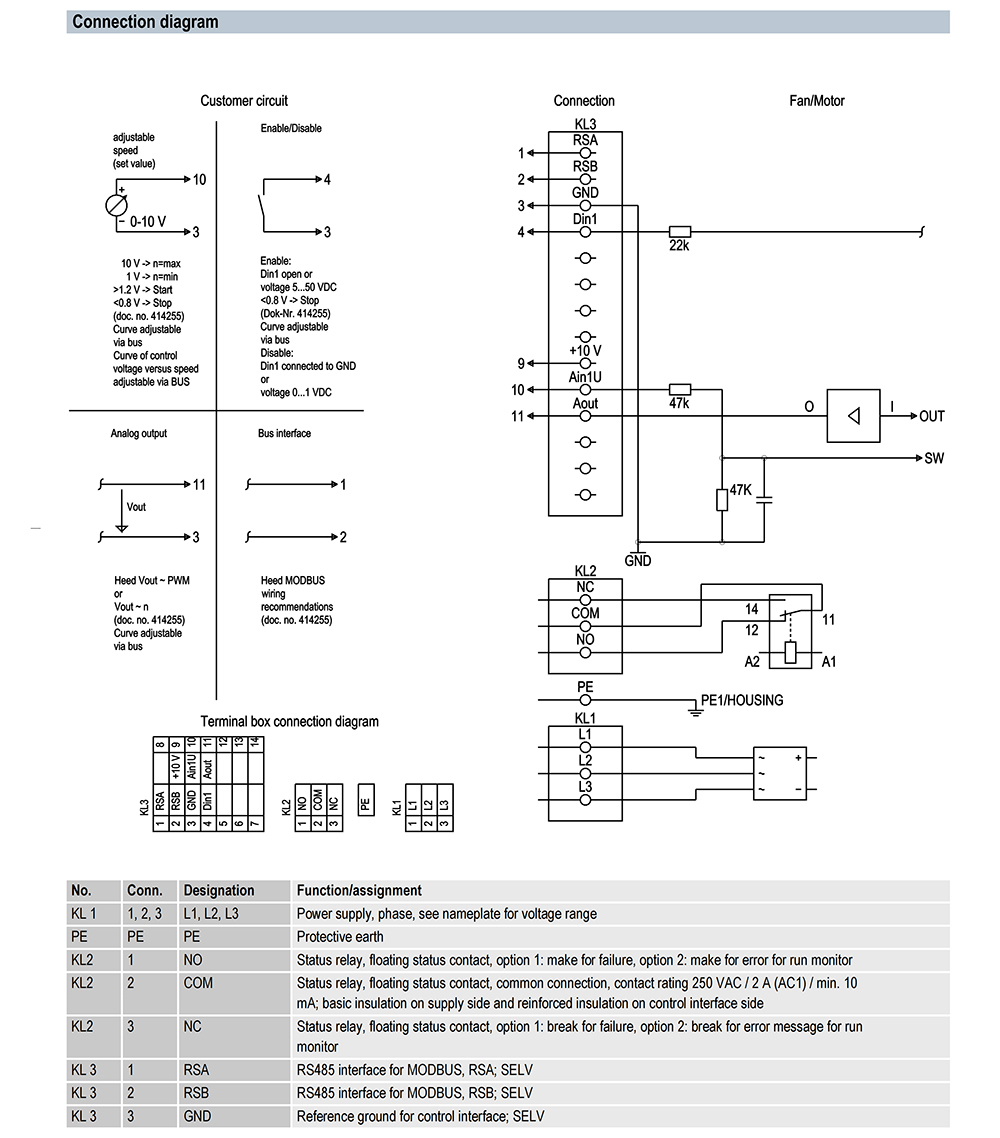

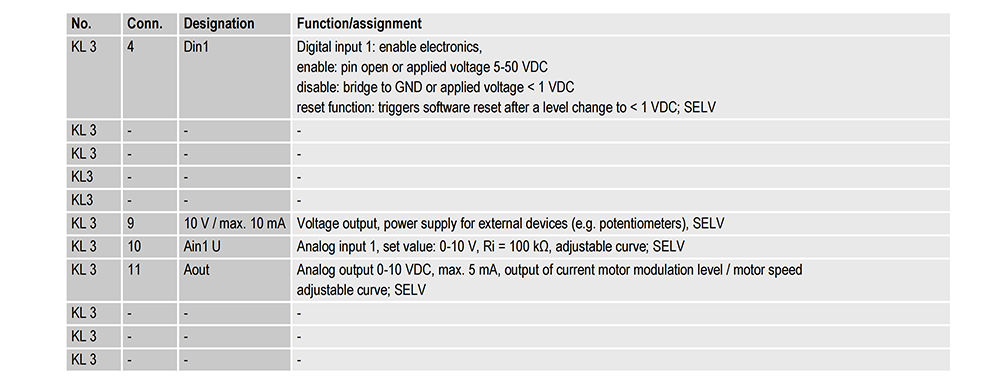

It features an integrated smart control interface that supports both traditional 0-10VDC/PWM analog inputs and digital RS-485 Modbus-RTU networks. This lets plant engineers automate infinite, stepless speed adjustments based on real-time fluid temperatures, eliminating sudden power spikes and maximizing facility energy efficiency.
