EBM-Papst S4D400-AP12-38 AC Fan Ball Bearing 230VAC 135W/180W 1450RPM/1690RPM
Brand：ebmpapst
Model：S4D400-AP12-38
Category：Axial fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Nominal data
|
|
|
|
||
|
Type
|
S4D400-AP12-38
|
||||
|
Motor
|
M2D074-EI
|
||||
|
Phase
|
|
3~
|
3~
|
3~
|
3~
|
|
Nominal voltage
|
VAC
|
230
|
230
|
400
|
400
|
|

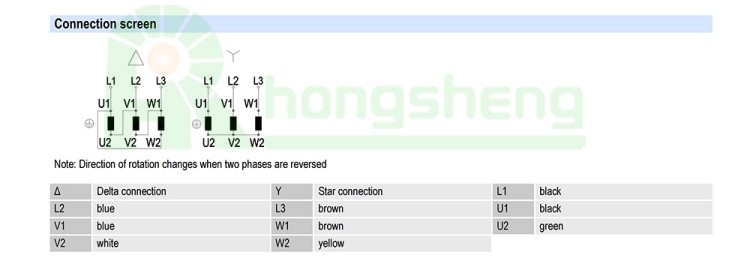

Verschaltung
|
|
△
|
△
|
Y
|
Y
|
|
Frequency
|
Hz
|
50
|
60
|
50
|
60
|
|
Valid for approval / standard
|
|
CE
|
CE
|
CE
|
CE
|
|
Speed
|
min-1
|
1450
|
1690
|
1450
|
1690
|
|
Power input
|
W
|
135
|
185
|
135
|
185
|
|
Current draw
|
A
|
0.76
|
0.68
|
0.44
|
0.39
|
|
Max. Back pressure
|
Pa
|
105
|
120
|
105
|
120
|
|
Max. ambient temperature
|
°C
|
60
|
60
|
60
|
60
|
|
Min. ambient temperature
|
°C
|
-25
|
-25
|
-25
|
-25
|
|
Starting current
|
A
|
3.0
|
3.0
|
1.7
|
1.7
|
|
ml = max. load · me = max. efficiency · fa = running at free air · cs = customer specs · cu = customer unit
|
|||||

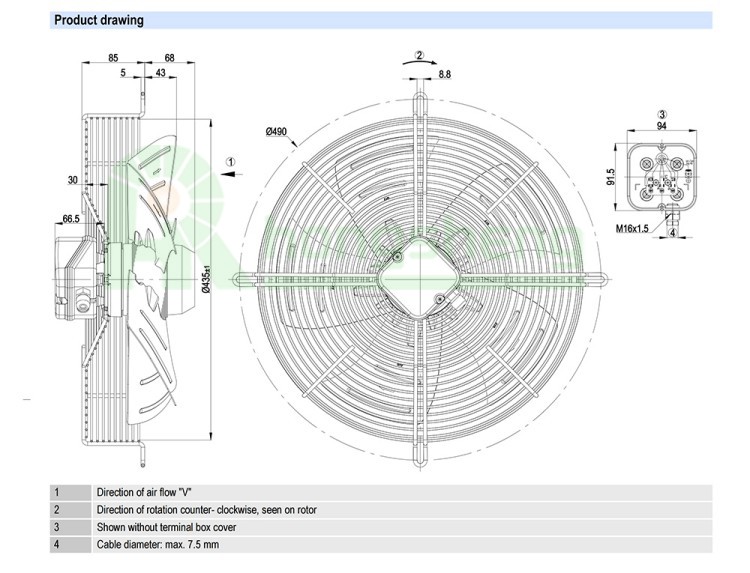

Specification drawing：

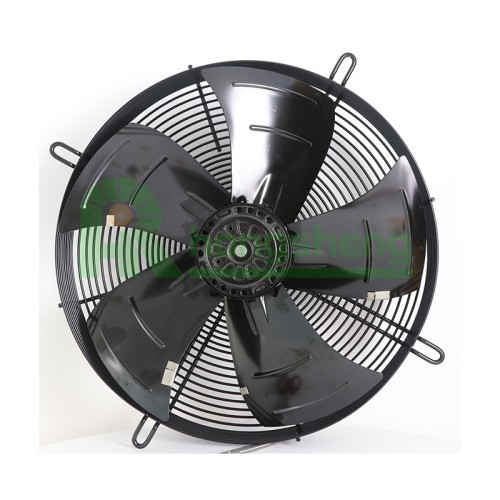

Item Show:
