EBM-Papst S4E350-AP06-81 AC Fan Ball Bearing 230V 130W/190W 1400RPM/1590RPM 1294.87CFM Flange Mount
Brand:ebmpapst
Model:S4E350-AP06-81
Category:Axial fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn
- Specification
- Details
- Application
ebmpapst axial fan | model:S4E350-AP06-81 | motor:M4E074-DF | Sufficient Stock
Nominal data |
|||
Type |
S4E350-AP06-81 |
||
Motor |
M4E074-DF |
||
Phase |
|
1~ |
1~ |
Nominal voltage |
VAC |
230 |
230 |
Frequency |
Hz |
50 |
60 |
Valid for approval / standard |
|
CE |
CE |
Speed |
min-1 |
1400 |
1590 |
Power input |
W |
130 |
190 |
Current draw |
A |
0.58 |
0.83 |
Capacitor voltage |
VDB |
400 |
400 |
Max. ambient temperature |
°C |
55 |
55 |
Motor capacitor |
µF |
4 |
4 |
ml = max. load · me = max. efficiency · fa = running at free air · cs = customer specs · cu = customer unit |
ebmpapst axial fan | model:S4E350-AP06-81 | motor:M4E074-DF | Sufficient Stock

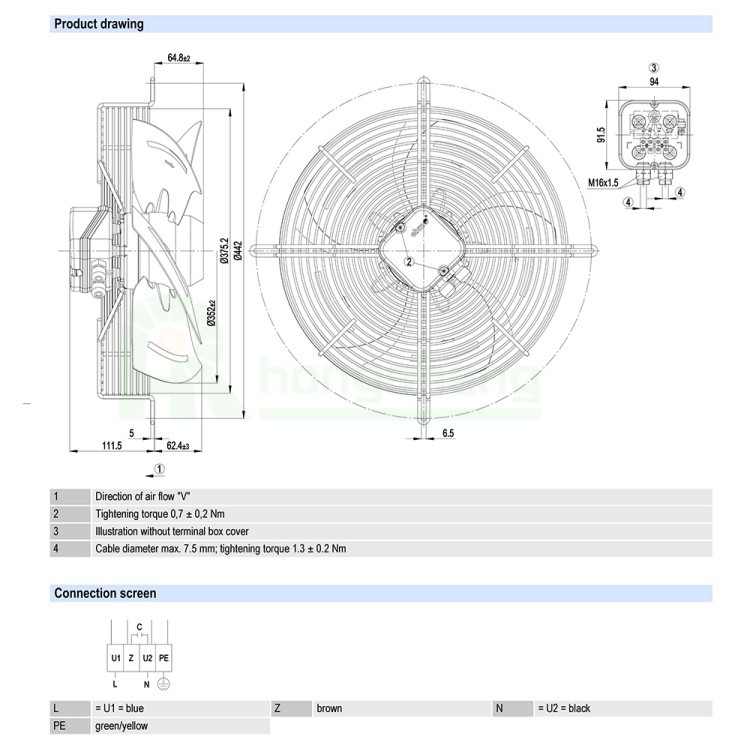

ebmpapst——S4E350-AP06-81——Structural drawing:

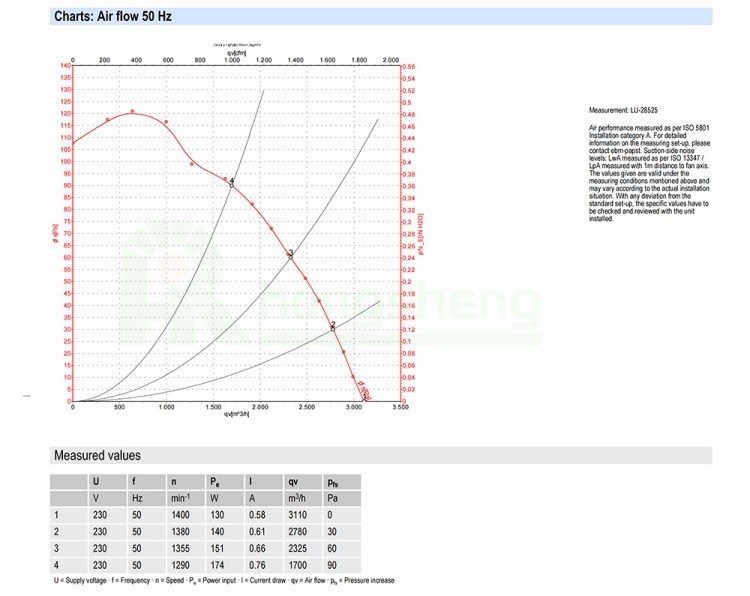

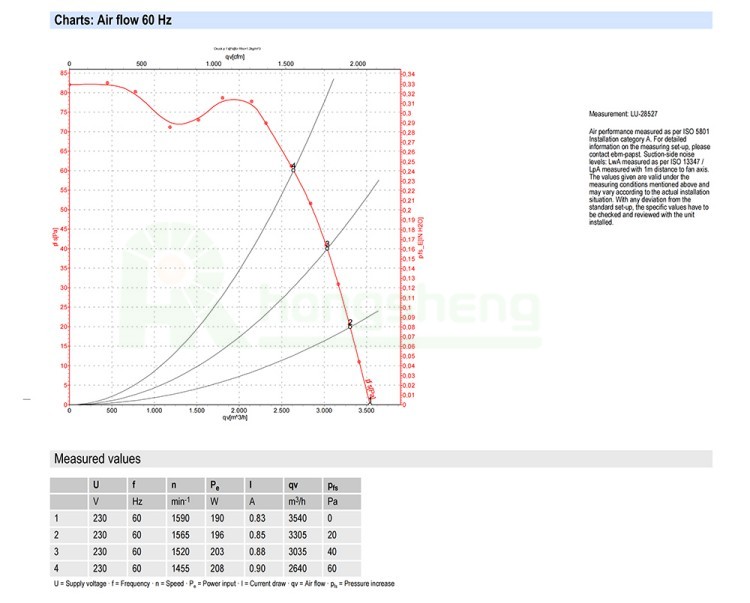

ebmpapst——S4E350-AP06-81——Air flow:
S4E350-AP06-81 ebmpapst cooling fan
