EBM-Papst S4D500-AE03-01 Axial fans 400V/480V ,50Hz/60Hz, 1360rpm/1600rpm, 690W/1100W.
Brand：ebmpapst
Model：S4D500-AE03-01
Category：Axial fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / Ada@bjhengrui.cn / qin@bjhengrui.cn
- Specification
- Details
- Application
ebmpapst axial fan | model：S4D500-AE03-01 | motor:M4D110-GF| Sufficient Stock
|
Nominal data |
|
|
|
||
|
Type |
S4D500-AE03-01 |
||||
|
Motor |
M4D110-GF |
||||
|
Phase |
|
3~ |
3~ |
3~ |
3~ |
|
Nominal voltage |
VAC |
400 |
480 |
400 |
480 |
|
Verschaltung |
|
△ |
△ |
Y |
Y |
|
Frequency |
Hz |
50 |
60 |
50 |
60 |
|
Valid for approval / standard |
|
CE |
CE |
CE |
CE |
|
Speed |
min-1 |
1360 |
1600 |
1110 |
1240 |
|
Power input |
W |
690 |
1100 |
490 |
740 |
|
Current draw |
A |
1.43 |
1.72 |
0.86 |
1.08 |
|
Max. Back pressure |
Pa |
160 |
215 |
105 |
125 |
|
Max. ambient temperature |
°C |
90 |
55 |
90 |
55 |
|
Min. ambient temperature |
°C |
-40 |
-40 |
-40 |
-40 |
|
Starting current |
A |
6.5 |
7.5 |
|
|
|
ml = max. load · me = max. efficiency · fa = running at free air · cs = customer specs · cu = customer unit |
|||||

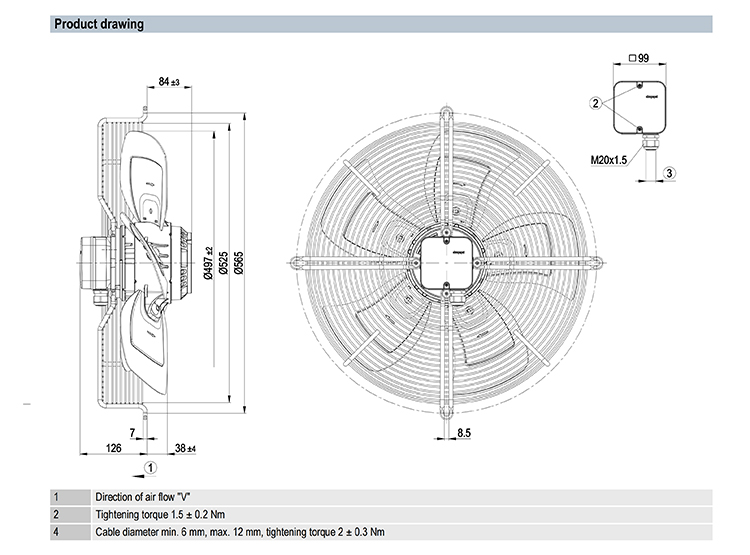

ebmpapst——S4D500-AE03-01 ——Structural drawing：
ebmpapst axial fan | model：S4D500-AE03-01 | motor:M4D110-GF| Sufficient Stock

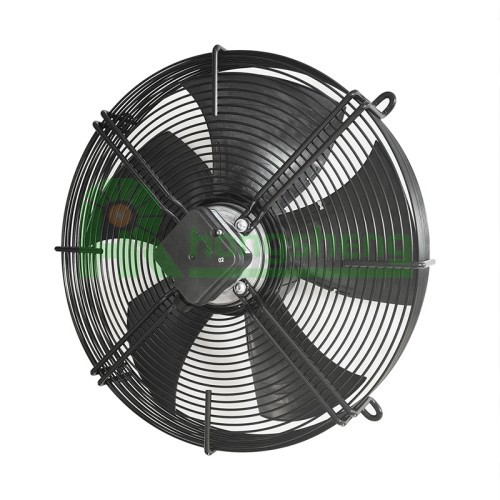

German ebmpapst fan S4D500-AE03-01 cooling fan
