EBM-Papst S4E300-AS72-45/F01 AC Fan Ball Bearing 230V 1500RPM 90W 300MM Flange Mount
Brand：ebmpapst
Model：S4E300-AS72-45/F01
Category：Axial fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn
- Specification
- Details
- Application
ebmpapst axial fan | model：S4E300-AS72-45/F01| Motor : M4E068-CF | Sufficient Stock
|
Nominal data |
|
||
|
Type |
S4E300-AS72-45/F01 |
||
|
Motor |
M4E068-CF |
||
|
Phase |
|
1~ |
1~ |
|
Nominal voltage |
VAC |
230 |
230 |
|
Frequency |
Hz |
50 |
60 |
|
Valid for approval/standard |
|
CE |
CE |
|
Speed |
min-1 |
1350 |
1500 |
|
Power input |
W |
70 |
90 |
|
Motor capacitor |
µF |
2 |
2 |
|
Current draw |
A |
0.32 |
0.40 |
|
Min. ambient temperature |
°C |
-30 |
-30 |
|
Max. ambient temperature |
°C |
60 |
60 |
|
ml = max. load · me = max. efficiency · fa = running at free air · cs = customer specs · cu = customer unit |
|||

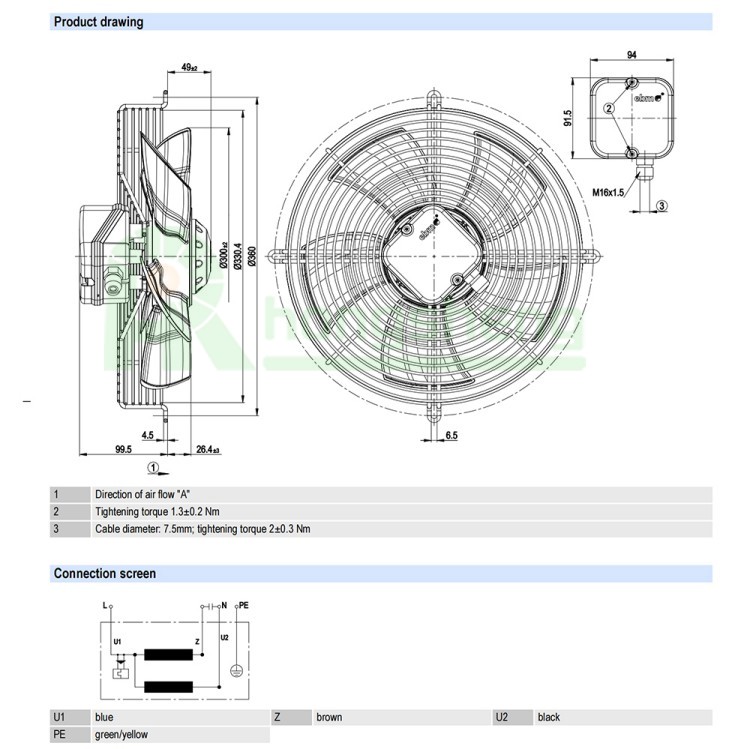

ebmpapst——S4E300-AS72-45/F01——Structural drawing：

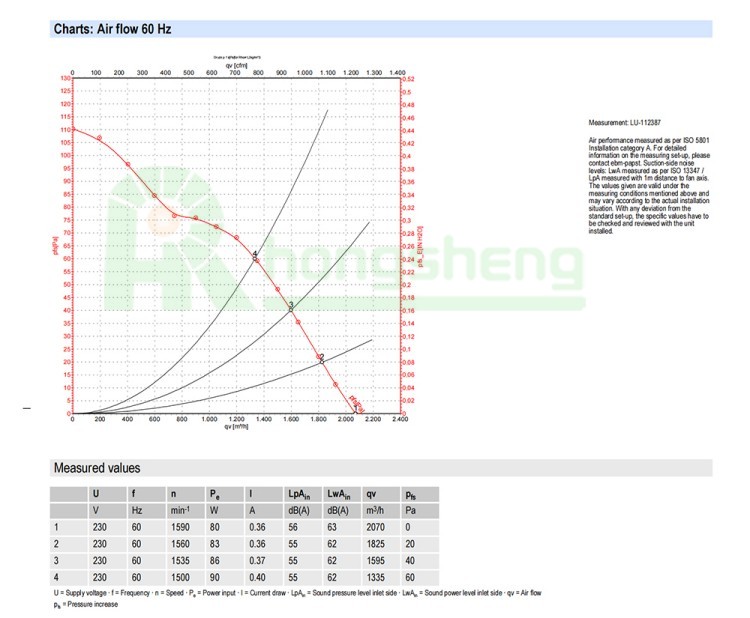

ebmpapst——S4E300-AS72-45/F01——Air flow：
ebmpapst axial fan | model：S4E300-AS72-45/F01 | Motor : M4E068-CF | Sufficient Stock
S4E300-AS72-45/F01 fan is an axial fan, which is characterized by shallow installation depth, low noise and high efficiency. It is especially suitable for conveying air through heat exchanger. In addition, helped by Greentech EC technology, it also provides an intelligent technology that can save energy in various applications. The product provides higher efficiency, compact design with quieter operation and longer service life.
Ebmpapst S4E300-AS72-45/F01 cooling fan
Beijing Hengrui Hongsheng Mechanical & Electrical Equipment Co., Ltd. is an enterprise engaged in the sales of fans and industry control products. It mainly provides ventilation and heat dissipation products and industry control system accessories. Those products are widely used in ventilation, air conditioning, refrigeration, heating, electric automation, inverter, rail transit, HVAC (FFU/ AHU), air purification, wind power generation, industrial medical treatment, new energy vehicles and other industries.
Online answers to problems of fan:
1. How to select a fan?
2. How to prolong the service life of the fan?
3. How the fan works?
Please contact customer service if you have other technical queations.
