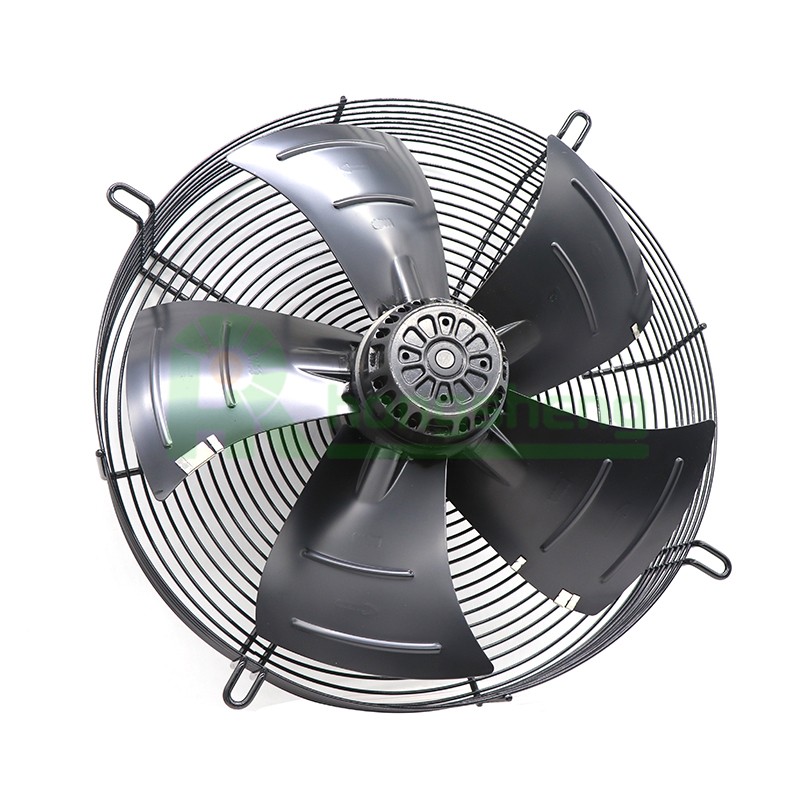

Ebm-papst S4D560-AM03-01 400V 560MM 7420CFM Axial Fan For Condenser Evaporator
Brand：ebm-papst (100% Genuine)
Model：S4D560-AM03-01
Category：Axial fans
Description： 100% Genuine ebm-papst S4D560-AM03-01 axial fan, 400V, 560mm, 7420CFM airflow for condensers and evaporators. Large stock, fast worldwide shipping, dependable refrigeration cooling solution.
- Specification
- Details
- Application
Nominal data:
|
Brand： |
ebmpapst |
|
Part No： |
S4D560-AM03-01 |
|
Fan Type： |
Axial Fan |
|
Rated Voltage(V)： |
400 |
|
Size(mm)： |
560 |
|
Max.Air Flow(CFM)： |
7420 |
|
Max.Pressure(Pa)： |
140 |
|
Input Power(W)： |
650 |
|
Speed(RPM)： |
1220 |
|
Noise(dB)： |
70 |

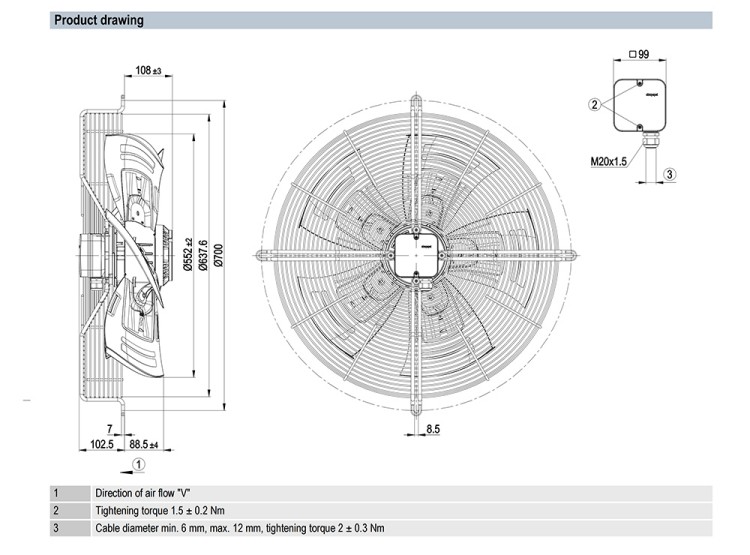

Specification Drawing:
Efficient Mid-Size Cooling Solution for Refrigeration & Dry Cooler Systems
The ebm-papst S4D560-AM03-01 axial fan is engineered for refrigeration condensers, evaporators, and industrial dry cooler applications requiring efficient airflow, stable operation, and long-term durability. Featuring a 560mm fan diameter, 400V three-phase motor, and airflow capacity of 7420CFM, this industrial axial fan provides optimized heat dissipation and reliable continuous-duty performance. Constructed with a cast aluminum rotor, IP54 protection, thermal overload protection, and corrosion-resistant blade materials, it is designed to operate efficiently in demanding refrigeration and industrial HVAC environments.
Product Details
 |
 |
Why choose us ?► Large quantity of multi brand fans in stock supply
Main Application Scenarios
Refrigeration Condenser Heat Rejection Systems
The S4D560-AM03-01 axial fan is widely used in industrial and commercial refrigeration condensers where efficient airflow and stable thermal performance are essential for maintaining refrigeration system efficiency.
Evaporator & Cold Storage Air Circulation
This industrial cooling fan performs effectively in evaporator units, freezer systems, and cold storage facilities requiring reliable air circulation and stable temperature management for refrigeration applications.
Dry Cooler & Industrial Heat Exchanger Equipment
The fan is ideal for dry cooler systems and industrial air-cooled heat exchangers where moderate-to-high airflow and durable continuous operation are necessary for efficient heat transfer performance.
Industrial HVAC & Ventilation Systems
The ebm-papst S4D560-AM03-01 can also be applied in industrial HVAC ventilation equipment, rooftop cooling systems, and air handling units requiring reliable airflow with IP54 environmental protection.
Industrial Process & Machinery Cooling
With its robust aluminum construction and thermal overload protection, this axial fan is suitable for industrial process cooling, compressor ventilation, and machinery airflow management applications operating under continuous-duty conditions.
Frequently Asked Questions
Q1. What applications is the ebm-papst S4D560-AM03-01 axial fan suitable for?
The ebm-papst S4D560-AM03-01 axial fan is commonly used in refrigeration condensers, evaporator cooling systems, dry coolers, industrial heat exchangers, and HVAC ventilation equipment. With its 7420CFM airflow performance and IP54 protection, this industrial cooling fan is ideal for cold storage facilities, refrigeration plants, freezer systems, and industrial process cooling environments requiring stable continuous airflow.
Q2. What are the advantages of IP54 protection and thermal overload protection in industrial cooling fans?
The IP54 protection rating helps protect the fan motor and electrical components against dust and water splashes commonly found in refrigeration and industrial HVAC environments. The integrated thermal overload protector (TOP) helps prevent motor overheating during abnormal operating conditions, improving operational safety and extending fan lifespan in continuous-duty cooling applications.
Q3. How can I troubleshoot weak airflow or abnormal motor operation?
If the S4D560-AM03-01 axial fan experiences reduced airflow, overheating, or abnormal vibration, inspect the fan blades and rotor for dirt buildup or imbalance, verify stable 400V power supply, and check condenser or evaporator fins for blockage. Inspect motor bearings, terminal box wiring, and thermal protection components regularly for wear or loose connections. Routine preventive maintenance and cleaning help maintain optimal refrigeration cooling efficiency and extend operational service life. Using 100% genuine ebm-papst replacement fans also helps reduce compatibility risks and unexpected equipment downtime.
