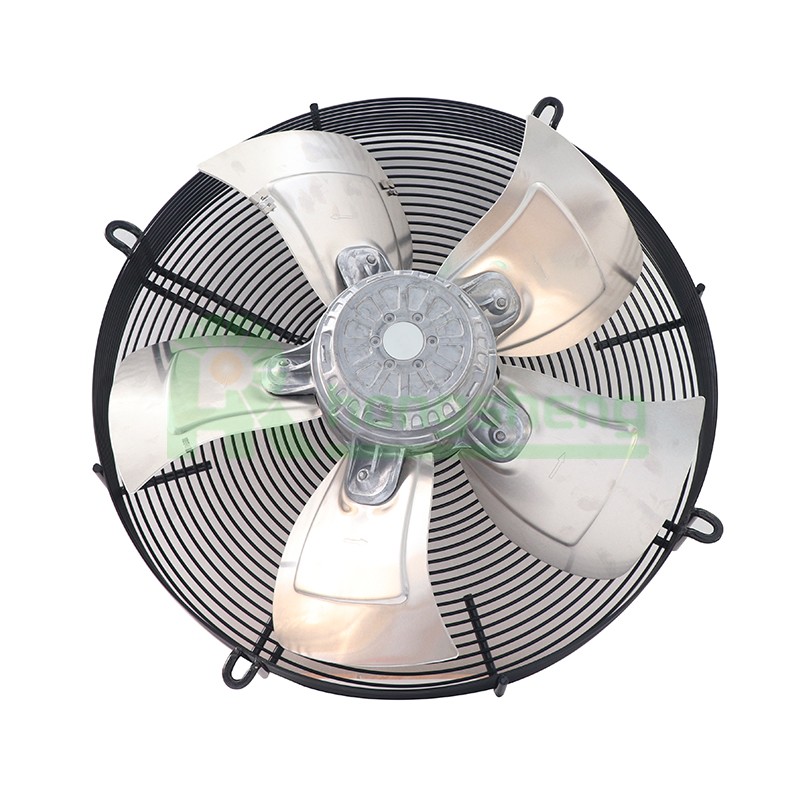

Ebm-papst S4D500-AD03-01 480V 500MM 6650CFM Axial Fan For Condenser Evaporator
Brand：ebm-papst (100% Genuine)
Model：S4D500-AD03-01
Category：Axial fans
Description： 100% genuine ebmpapst S4D500-AD03-01 axial fan, 480V, 6650CFM, IP54 certified for condensers, evaporators, and refrigeration systems. Large stock, fast worldwide shipping, reliable industrial cooling performance.
- Specification
- Details
- Application
Nominal data:
|
Brand： |
ebmpapst |
|
Part No： |
S4D500-AD03-01 |
|
Fan Type： |
Axial Fan |
|
Rated Voltage(V)： |
480 |
|
Size(mm)： |
500 |
|
Max.Air Flow(CFM)： |
6650 |
|
Max.Pressure(Pa)： |
150 |
|
Input Power(W)： |
1220 |
|
Speed(RPM)： |
1570 |
|
Noise(dB)： |
75 |

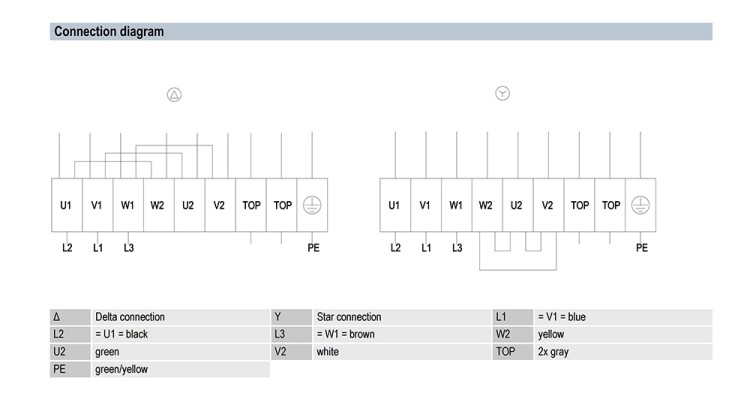

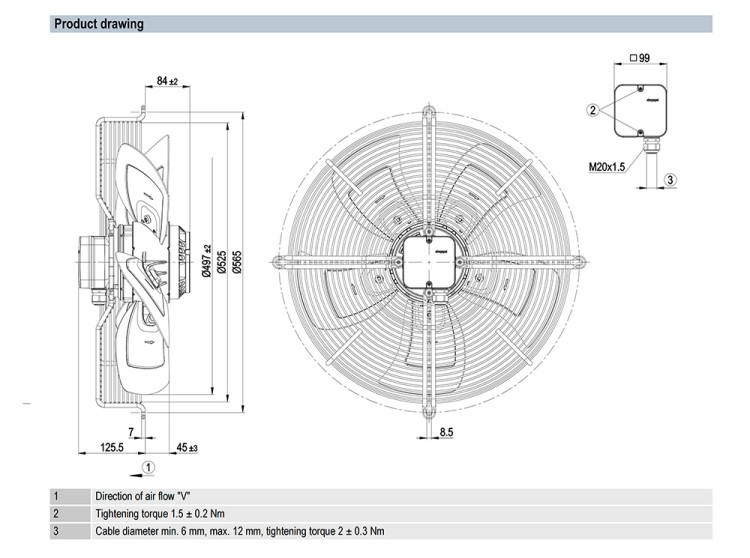

Specification Drawing:
Reliable Cooling Solution for Refrigeration & Condenser Applications
The ebmpapst S4D500-AD03-01 axial fan is designed for high-efficiency airflow performance in demanding refrigeration and industrial cooling environments. Featuring a 500mm impeller, 480V power supply, 6650 CFM airflow, and IP54 protection, this industrial axial fan is widely used in condensers, evaporators, cold storage systems, and commercial refrigeration equipment.Manufactured with durable aluminum blades and a cast aluminum rotor, the S4D500-AD03-01 provides stable airflow performance, low vibration, and reliable continuous-duty operation. Its thermal overload protector (TOP), Class F insulation, and ball bearing motor ensure long service life in HVAC and refrigeration cooling systems.As a 100% genuine ebmpapst axial cooling fan, this model delivers energy-efficient airflow performance for industrial heat exchange applications. We maintain sufficient stock and support fast global delivery for urgent replacement needs and OEM refrigeration projects.
Product Details
 |
 |
Why choose us ?► Large quantity of multi brand fans in stock supply
Main Application Scenarios
Air-Cooled Condenser Systems
The S4D500-AD03-01 axial fan is widely used in air-cooled condensers for refrigeration and HVAC systems. Its strong 6650 CFM airflow improves condenser heat dissipation efficiency, helping reduce compressor operating temperatures and optimize overall refrigeration performance.Typical applications include supermarket refrigeration systems, cold rooms, condensing units, and industrial cooling equipment.
Evaporator Units & Cold Storage Air Circulation
This 500mm industrial axial fan is ideal for evaporator systems requiring stable and continuous airflow circulation. It helps maintain uniform temperature distribution in cold storage facilities, freezer rooms, and refrigeration chambers while enhancing evaporator heat exchange efficiency.Its balanced aluminum blade structure helps reduce vibration and maintain reliable airflow performance in low-temperature environments.
HVAC & Industrial Heat Exchanger Equipment
This high-performance ebmpapst axial fan is also suitable for HVAC condensers, dry coolers, and industrial heat exchanger systems where high airflow efficiency and reliable continuous operation are required.Its energy-efficient motor design supports reduced operating costs and stable thermal management performance.
Frequently Asked Questions
Q1: What applications is the ebmpapst S4D500-AD03-01 axial fan suitable for?
The S4D500-AD03-01 axial fan is commonly used in refrigeration condensers, evaporators, cold storage systems, HVAC cooling units, industrial heat exchangers, and commercial refrigeration equipment requiring high airflow and stable continuous operation.
Q2: What certifications and protection standards does this industrial cooling fan have?
This model complies with EN 60034-1 standards and carries VDE, CCC, and EAC approvals. It also features IP54 protection and Class F insulation, making it suitable for demanding industrial refrigeration and HVAC environments.
Q3: How can abnormal noise or vibration be reduced during fan operation?
To minimize noise and vibration, users should ensure proper installation alignment, stable voltage supply, regular blade cleaning, and routine bearing inspection. The S4D500-AD03-01 is designed with dynamically balanced aluminum blades and ball bearings to support low-vibration industrial cooling performance.
