S-series

Ebm-papst S4E500-AM03-01 230V 500MM 5794CFM Axial Fan For Condenser Evaporator

Brand:ebm-papst (100% Genuine)

Model:S4E500-AM03-01

Category:Axial fans

Description: 100% genuine ebmpapst S4E500-AM03-01 axial fan, 230V, 5794CFM, IP54, UL/VDE certified for condensers, evaporators, and refrigeration systems. Large stock, fast worldwide shipping, stable cooling performance.

Sales Hotline:+86 10-62547612 Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
  • Specification
  • Details
  • Application

Nominal data:

Brand:

ebmpapst

Part No:

S4E500-AM03-01

Fan Type:

Axial Fan

Rated Voltage(V):

230

Size(mm):

500

Max.Air Flow(CFM):

5794

Max.Pressure(Pa):

100

Input Power(W):

880

Speed(RPM):

1400

Noise(dB):

65

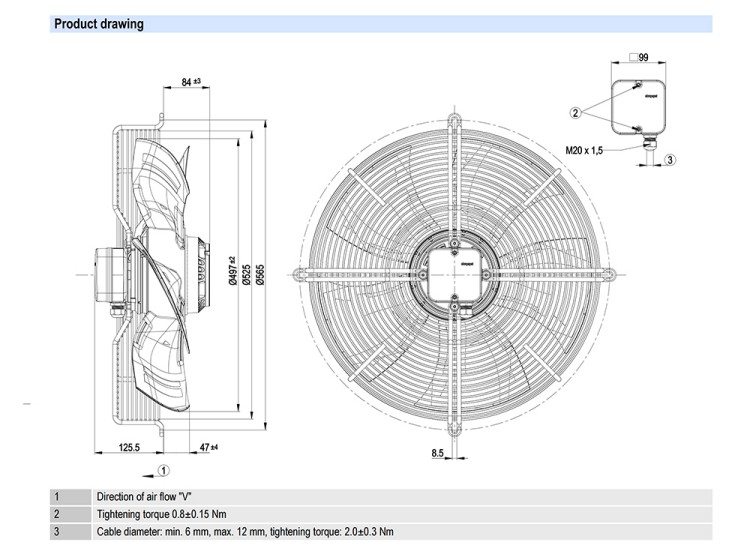

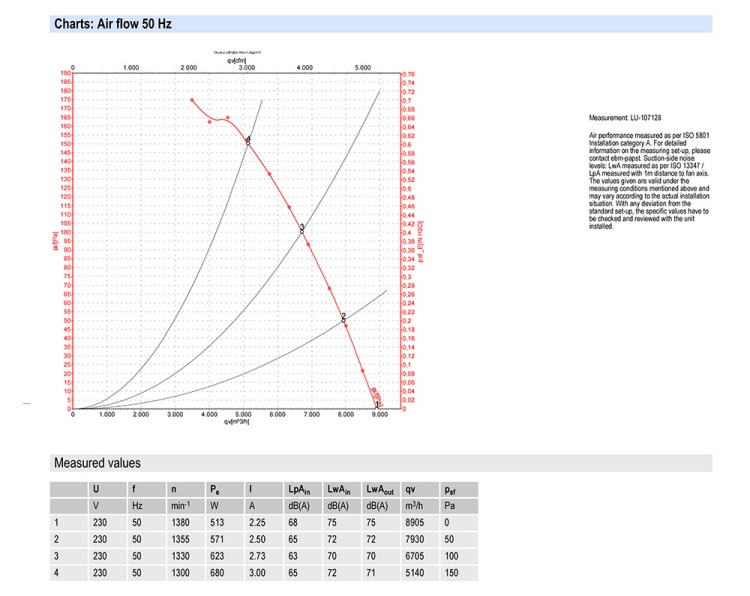

Specification Drawing:

S4E500-AM03-01S4E500-AM03-01S4E500-AM03-01S4E500-AM03-01

Single-Phase Refrigeration Cooling Solution for Commercial HVAC Applications

The ebmpapst S4E500-AM03-01 axial fan is designed for efficient single-phase airflow performance in refrigeration and HVAC systems. Featuring a 500mm fan size, 230V rated voltage, and 5794 CFM airflow capacity, this industrial axial fan is widely used in condensers, evaporators, refrigerated display equipment, and commercial cooling systems.Equipped with durable PP-coated steel blades and an integrated capacitor connection via terminal box, the S4E500-AM03-01 delivers reliable starting performance, stable airflow output, and energy-efficient operation. Its IP54 protection, Class F insulation, and thermal overload protector (TOP) help ensure dependable long-term operation in demanding refrigeration environments.As a 100% genuine ebmpapst axial cooling fan, this model offers optimized cooling efficiency and reduced maintenance requirements for commercial refrigeration applications. We maintain sufficient inventory and support fast worldwide shipping for urgent replacement and OEM cooling projects.

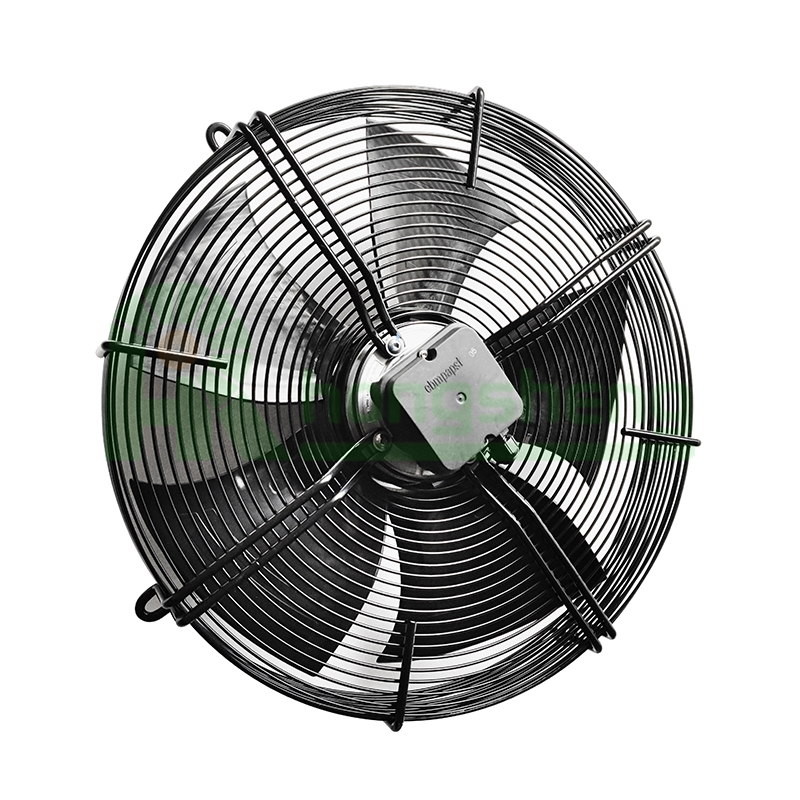

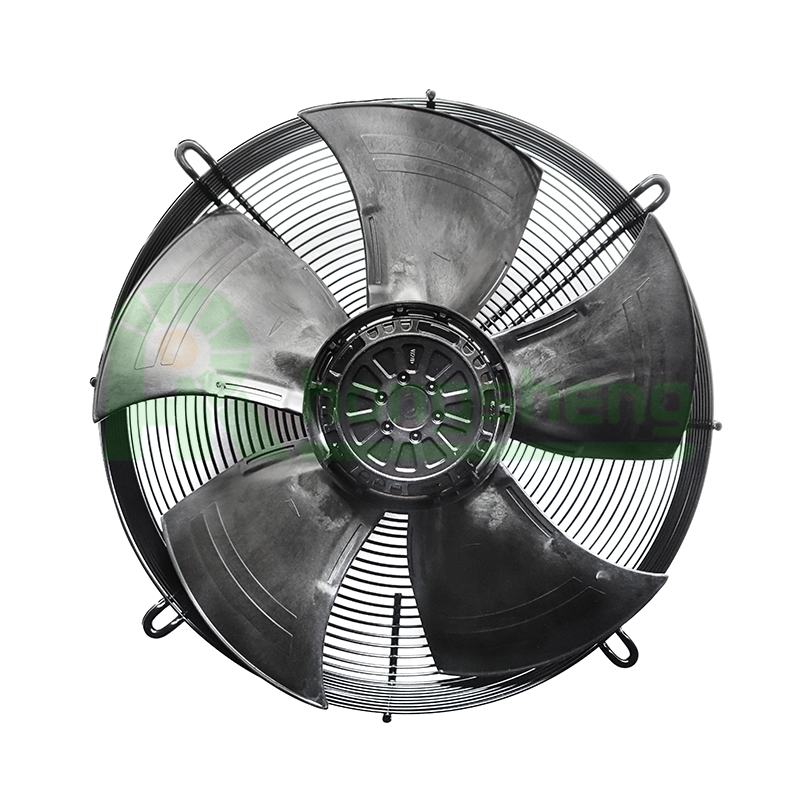

Product Details

If you need more installation pictures or detailed technical PDF documents of ebm-papst S4E500-AM03-01, please feel free to contact us at any time.

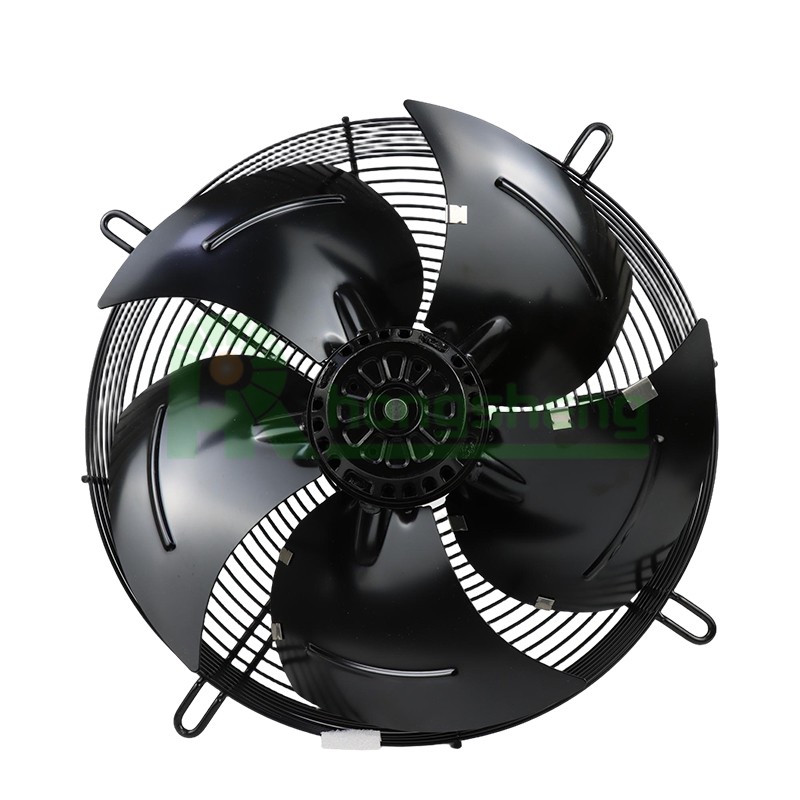

S4E500-AM03-01

是的Why choose us ?

Large quantity of multi brand fans in stock supply

Global Fast Delivery
Professional selection support
Experience in industrial cooling solutions
Highly trusted by HVAC service providers


Main Application Scenarios

 Commercial Refrigeration Condensers

The S4E500-AM03-01 axial fan is commonly applied in commercial refrigeration condenser systems where stable single-phase power supply is required. Its 5794 CFM airflow supports efficient heat dissipation and helps maintain stable compressor operation in medium-sized cooling systems.Typical applications include beverage coolers, refrigerated cabinets, supermarket refrigeration equipment, and condensing units.

HVAC Ventilation & Rooftop Cooling Equipment

The ebmpapst S4E500-AM03-01 is also suitable for HVAC ventilation systems and rooftop cooling units where 230V single-phase operation simplifies electrical installation and maintenance.Its moderate noise level of 65 dB makes it suitable for commercial installations requiring balanced airflow and acoustic performance.

OEM Refrigeration & Heat Exchange Systems

This industrial axial cooling fan is widely integrated into OEM refrigeration systems, air-cooled heat exchangers, and customized cooling equipment requiring compact structure, reliable airflow, and certified safety compliance.Its UL, VDE, and CSA approvals support international commercial equipment applications.


lightbulbFrequently Asked Questions

Q1: What is the advantage of the 230V single-phase design in the S4E500-AM03-01?

The 230V single-phase configuration allows easier installation in commercial refrigeration and HVAC systems where three-phase power may not be available. It is commonly used in retail refrigeration equipment and medium-duty cooling applications.

Q2: Does this axial fan support international certification requirements?

Yes. The S4E500-AM03-01 complies with EN 61800-5-1 standards and carries UL 1004-1, VDE, and CSA C22.2 certifications, making it suitable for global commercial refrigeration and HVAC projects.

Q3: What should be checked if the fan fails to start properly?

Users should inspect the capacitor connection, terminal box wiring, power supply voltage, and thermal overload protector status. Regular inspection of electrical connections and blade cleanliness helps maintain reliable startup and stable airflow performance.
