Ebm-papst S4D560-BQ01-02 400V 560MM Axial Fan For Condenser Evaporator
Brand：ebm-papst (100% Genuine)
Model：S4D560-BQ01-02
Category：Axial fans
Description： 100% genuine ebmpapst S4D560-BQ01-02 axial fan, 400V, IP54, high-efficiency refrigeration fan for condensers and evaporators. Large stock, fast global shipping, stable industrial cooling performance.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand： |
ebmpapst |
|
Part No： |
S4D560-BQ01-02 |
|
Fan Type： |
Axial Fan |
|
Rated Voltage(V)： |
400 |
|
Size(mm)： |
560 |
|
Max.Pressure(Pa)： |
90 |
|
Input Power(W)： |
1380 |
|
Speed(RPM)： |
1540 |

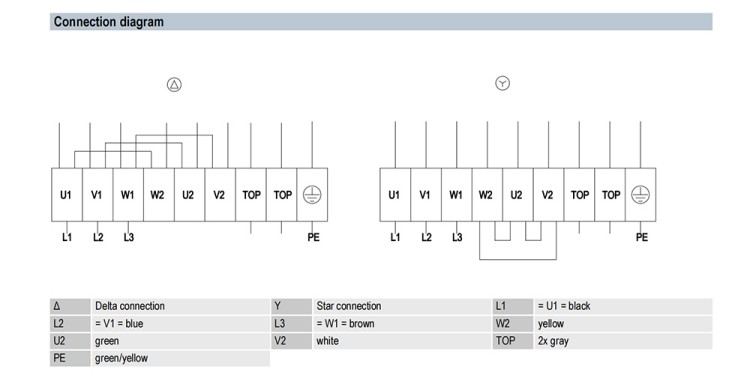

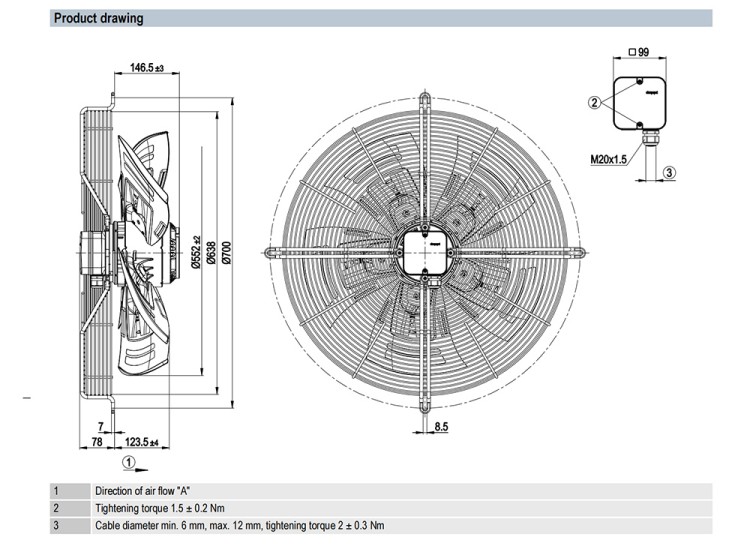

Specification Drawing:
Reliable High-Airflow Cooling Solution for Refrigeration & Condenser Systems
The ebmpapst S4D560-BQ01-02 axial fan is engineered for demanding refrigeration, condenser, and evaporator applications requiring stable airflow and continuous operation. Featuring a rugged 560mm aluminum rotor, IP54 protection, and 400V industrial power design, this high-performance axial fan delivers reliable cooling efficiency in commercial refrigeration and HVAC environments.Designed with a durable aluminum blade structure and thermal protection system, the S4D560-BQ01-02 provides dependable airflow performance even under low-temperature and high-humidity operating conditions. It is widely used in industrial condensers, evaporators, dry coolers, cold storage systems, and refrigeration heat exchangers where long service life and consistent cooling are critical.With sufficient inventory, 100% genuine ebmpapst quality assurance, and fast worldwide shipping, this model is an ideal replacement fan for OEM refrigeration equipment and industrial cooling systems.

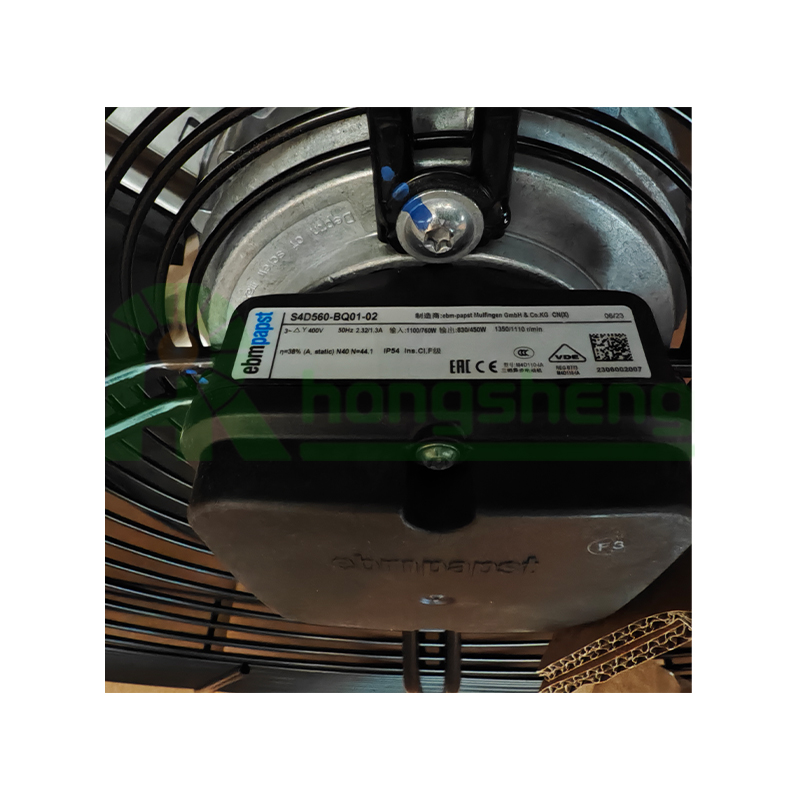

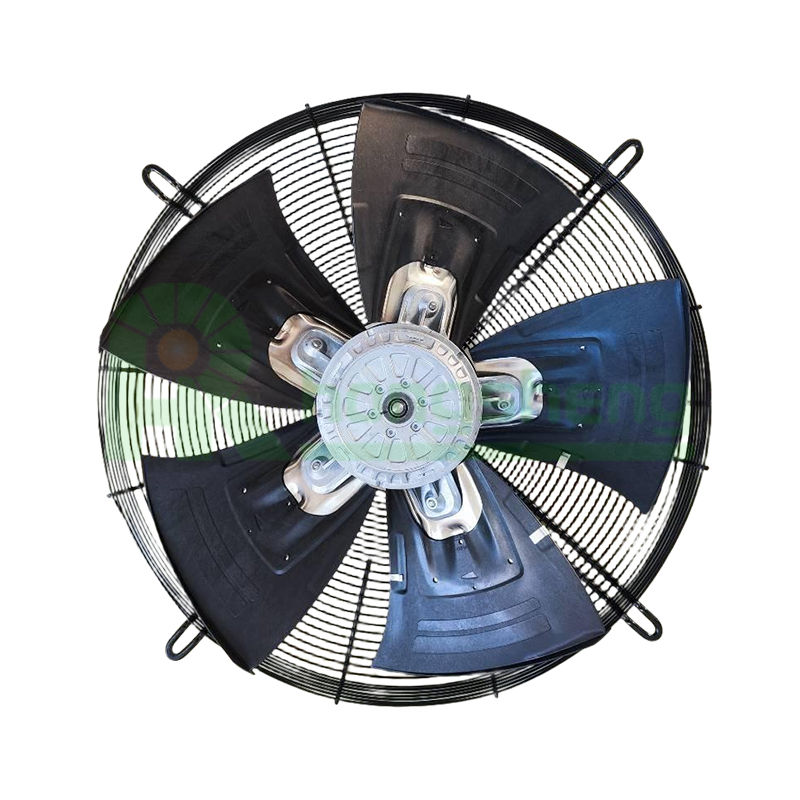

Product Details
（If you need more installation pictures or detailed technical PDF documents of ebm-papst S4D560-BQ01-02, please feel free to contact us at any time.）
 |
 |
Why choose us ?► Large quantity of multi brand fans in stock supply
► Global Fast Delivery
► Professional selection support
► Experience in industrial cooling solutions
► Highly trusted by HVAC service providers
Main Application Scenarios
Condenser Cooling in Commercial Refrigeration Systems
The S4D560-BQ01-02 axial fan is commonly installed in commercial refrigeration condensers to maintain efficient heat dissipation and stable system pressure. Its 400V high-power motor and IP54 protection make it suitable for supermarket refrigeration units, rooftop condensing systems, and industrial freezer equipment operating continuously in demanding environments.
Evaporator Air Circulation for Cold Storage Rooms
Thanks to its strong airflow performance and reliable ball bearing motor design, this ebmpapst axial fan is ideal for evaporator units in cold rooms and refrigerated warehouses. The fan supports uniform temperature distribution and helps improve cooling efficiency in low-temperature refrigeration applications.
Industrial HVAC & Process Cooling Equipment
This model is also suitable for HVAC air handling systems, compressor cooling, and industrial ventilation equipment requiring reliable axial airflow. The fan’s thermal protection and low-temperature startup capability improve operational safety in harsh industrial environments.
Frequently Asked Questions
Q1. Is the ebmpapst S4D560-BQ01-02 suitable for low-temperature refrigeration applications?
Yes. This model supports operation in refrigeration environments down to -40°C during transport and storage conditions. For continuous ultra-low-temperature applications below -25°C, ebmpapst recommends versions equipped with special low-temperature bearings for maximum reliability.
Q2. What protection features does the S4D560-BQ01-02 axial fan include?
The fan features IP54 protection, Class F insulation, ball bearings, and an automatic reset thermal protection switch. These features help protect the motor against dust, moisture, overload, and overheating in industrial refrigeration systems.
Q3. Can this fan be used as a replacement for OEM condenser or evaporator fans?
Yes. The S4D560-BQ01-02 is widely used as an OEM replacement fan in condensers, evaporators, dry coolers, and industrial HVAC systems. Its standard 560mm size and 400V configuration make it compatible with many commercial refrigeration units.
