Ebm-papst S4D630-BR01-02 400V 630MM 8830m³/h,Axial Fan For Condenser Evaporator
Brand：ebm-papst (100% Genuine)
Model：S4D630-BR01-02
Category：Axial fans
Description： 100% genuine ebmpapst S4D630-BR01-02 axial fan, 400V, 8830m³/h, IP54 industrial refrigeration fan for condensers and evaporators. CE/UKCA approved, ready stock, fast worldwide shipping.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand： |
ebmpapst |
|
Part No： |
S4D630-BR01-02 |
|
Fan Type： |
Axial Fan |
|
Rated Voltage(V)： |
400 |
|
Size(mm)： |
630 |
|
Max.Air Flow(m³/h)： |
8830 |
|
Max.Pressure(Pa)： |
150 |
|
Input Power(W)： |
1250 |
|
Speed(RPM)： |
1330 |
|
Noise(dB)： |
70 |

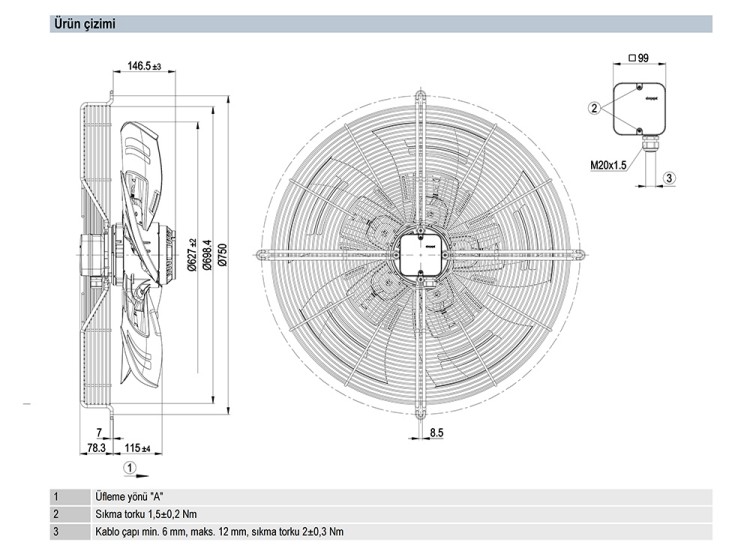

Specification Drawing:
High-Pressure 630mm Axial Fan for Industrial Refrigeration Applications
The ebmpapst S4D630-BR01-02 axial fan is engineered for industrial refrigeration and heavy-duty cooling systems requiring high static pressure performance and stable airflow delivery. Featuring a 630mm fan size, 400V three-phase voltage, 8830 m³/h airflow capacity, and 150 Pa maximum pressure, this industrial axial fan is widely used in condensers, evaporators, dry coolers, and process cooling systems.Unlike standard airflow-focused axial fans, the S4D630-BR01-02 is optimized for higher-pressure refrigeration applications. Its -10° blade pitch design enhances airflow pressure capability, making it suitable for cooling systems with denser heat exchanger structures and higher airflow resistance.Built with a cast aluminum rotor and PP-coated aluminum blade inserts, this 100% genuine ebmpapst refrigeration fan combines lightweight rotational efficiency with durable industrial performance. Equipped with IP54 protection, thermal overload protection (TOP), CE & UKCA compliance, and VDE/EAC approvals, the fan delivers reliable continuous-duty operation in demanding refrigeration environments. We maintain sufficient inventory and provide fast worldwide shipping for OEM projects and replacement cooling systems.
Product Details
（If you need more installation pictures or detailed technical PDF documents of ebm-papst S4D630-BR01-02, please feel free to contact us at any time.）
 |
 |
Why choose us ?► Large quantity of multi brand fans in stock supply
► Global Fast Delivery
► Professional selection support
► Experience in industrial cooling solutions
► Highly trusted by HVAC service providers
Main Application Scenarios
High-Resistance Refrigeration Condensers
The S4D630-BR01-02 axial fan is particularly suitable for condensers with dense fin structures or restricted airflow paths where higher static pressure performance is required.Its 150 Pa pressure capability helps maintain effective heat dissipation even under increased airflow resistance.
Dry Cooler & Process Cooling Equipment
The ebmpapst S4D630-BR01-02 is suitable for dry coolers and industrial process cooling systems where reliable airflow pressure is necessary to move air efficiently across heat exchange surfaces.Its optimized blade pitch helps improve airflow penetration through cooling coils.
Refrigeration Systems Operating in Harsh Environments
With IP54 protection and wide temperature tolerance from -40°C to +80°C, this industrial axial fan performs reliably in demanding refrigeration environments exposed to moisture, dust, and low ambient temperatures.It is especially suitable for industrial outdoor cooling installations and refrigerated production facilities.
Frequently Asked Questions
Q1: What advantages does the -10° blade pitch provide?
The -10° blade pitch helps increase static pressure performance, making the fan more effective for condensers and evaporators with higher airflow resistance or dense coil structures.
Q2: Is this fan suitable for low-temperature refrigeration environments?
Yes. The S4D630-BR01-02 supports startup operation at temperatures as low as -40°C, making it suitable for industrial refrigeration and cold storage applications.
Q3: Why is IP54 protection important for industrial refrigeration fans?
IP54 protection helps protect the motor and electrical components from dust and water splashes, improving reliability in industrial cooling environments and outdoor installations.
