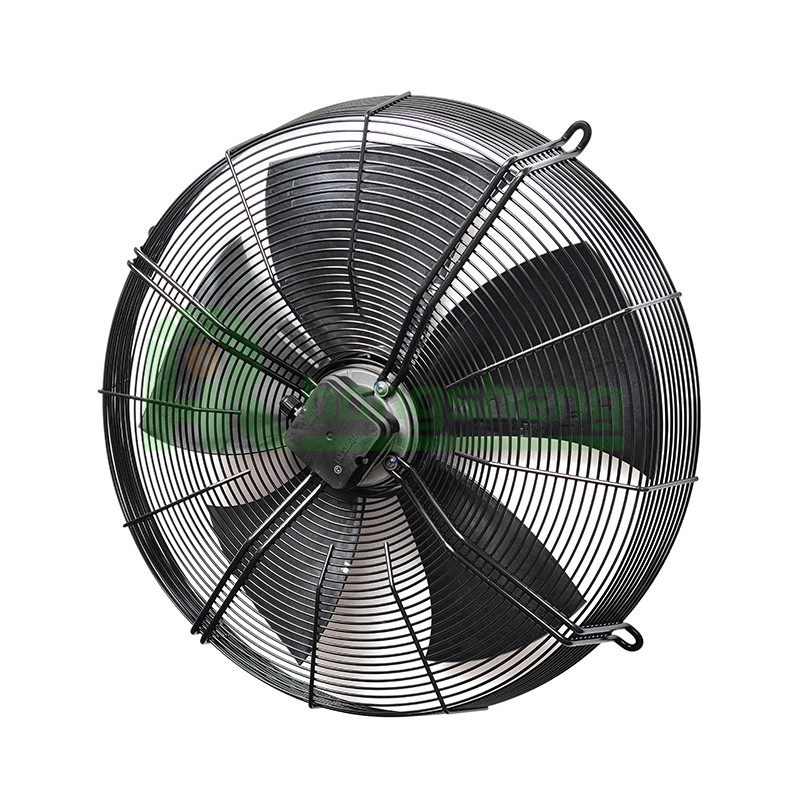

Ebm-papst S6D710-AH03-03 480V 11190CFM,Axial Fan For Condenser Evaporator
Brand：ebm-papst (100% Genuine)
Model：S6D710-AH03-03
Category：Axial fans
Description： 100% genuine ebm-papst 710mm AC axial fan. Features 11190 CFM, 160 Pa pressure, and 480V input for commercial refrigeration fields. Massive warehouse stock ensures immediate fast shipping.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand： |
ebmpapst |
|
Part No： |
S6D710-AH03-03 |
|
Fan Type： |
Axial Fan |
|
Rated Voltage(V)： |
480 |
|
Size(mm)： |
710 |
|
Max.Air Flow(CFM)： |
11190 |
|
Max.Pressure(Pa)： |
160 |
|
Input Power(W)： |
1620 |
|
Speed(RPM)： |
1060 |

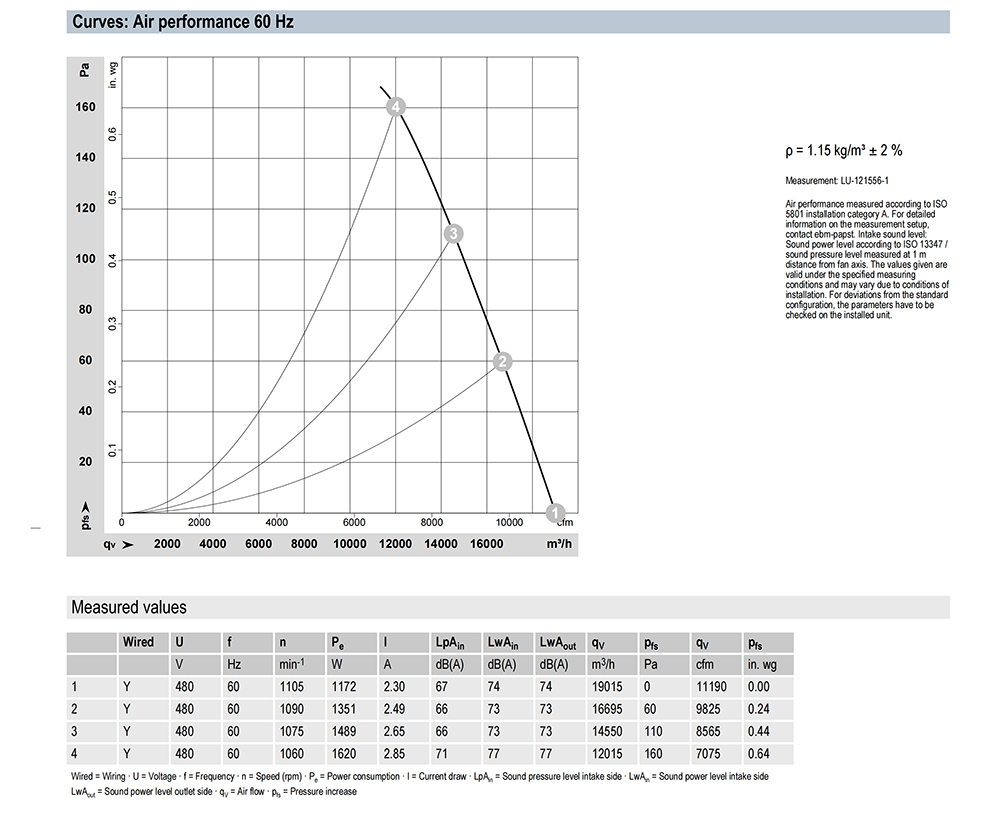

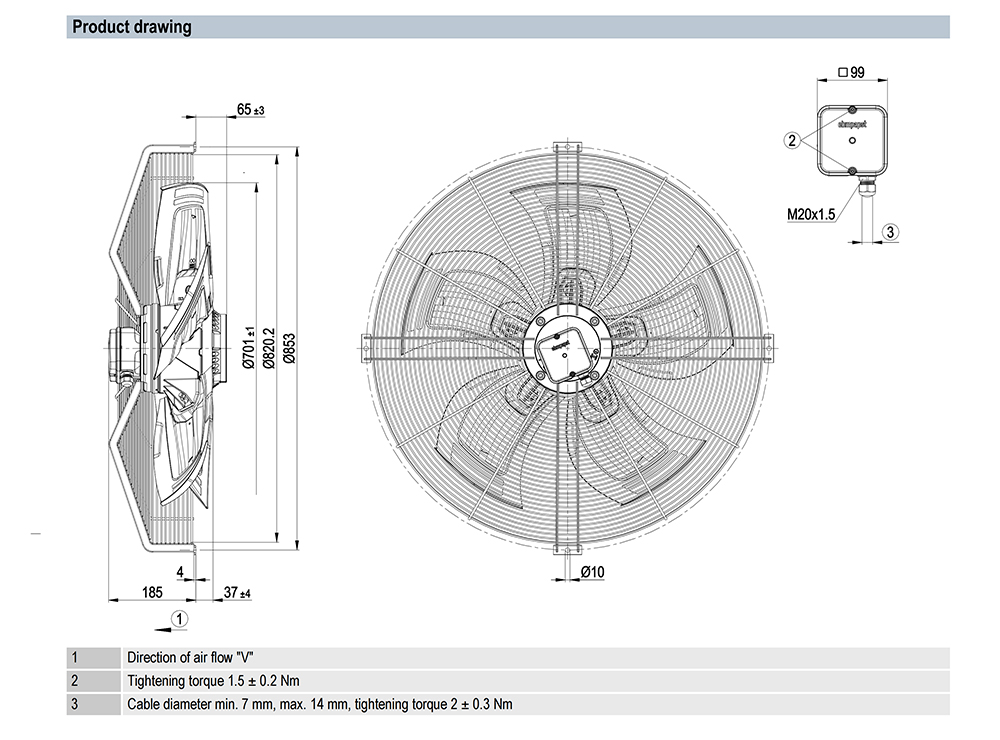

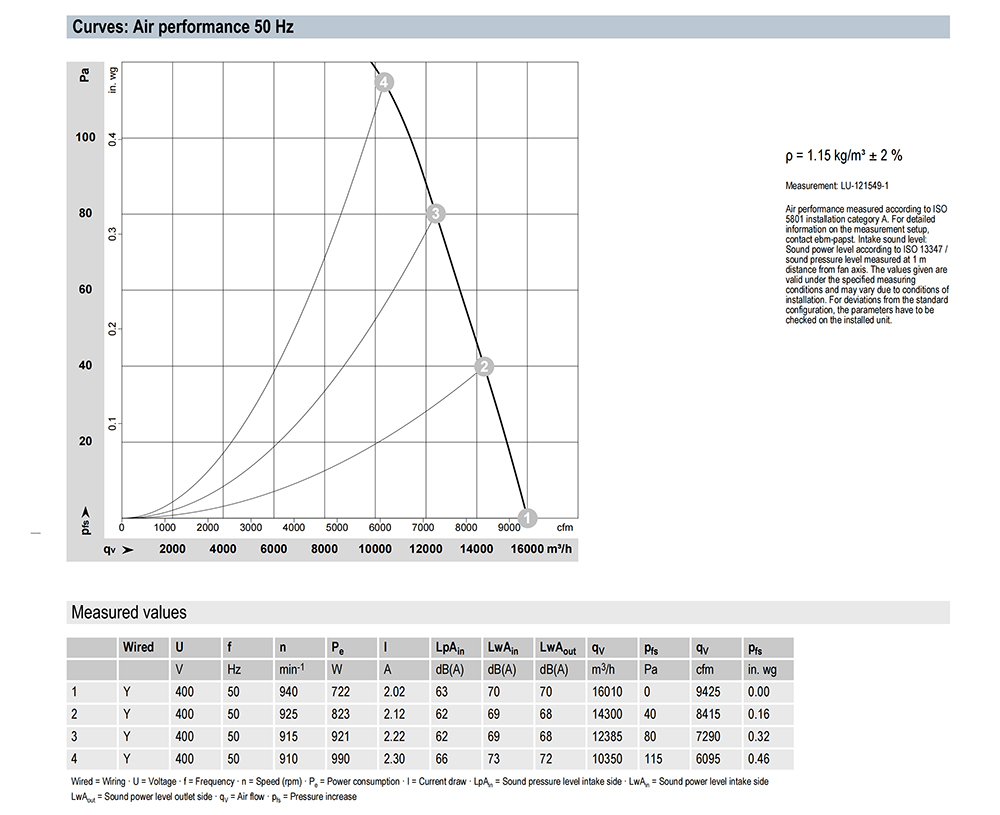

Specification Drawing:
Reliable Cooling Solution for Industrial & HVAC Applications
The S6D710-AH03-03 AC axial fan is designed for high-efficiency airflow in demanding environments. It is widely used as a replacement for ebm-papst fans in commercial refrigeration systems, ensuring stable performance, low energy consumption, and long service life. Its 5-blade configuration, utilizing sheet aluminum inserts sprayed with PP plastic, yields excellent corrosion resistance over large evaporator coil configurations.
Product Details
（If you need more installation pictures or detailed technical PDF documents of ebm-papst S6D710-AH03-03, please feel free to contact us at any time.）
Why choose us ?► Large quantity of multi brand fans in stock supply
► Global Fast Delivery
► Professional selection support
► Experience in industrial cooling solutions
► Highly trusted by HVAC service providers
Main Application Scenarios
Large-Scale Walk-In Cold Room Evaporators:
Mounts on internal cooling coils within commercial refrigeration facilities to generate high-volume air movement, keeping stored perishable foods at exact temperatures.
Supermarket Centralized Condensing Units:
Installed on outdoor blast freezer units to remove heat from standard refrigerants, keeping display coolers stable during long high-load summer periods.
Logistics Distribution Blast Chiller Arrays:
Deployed within high-output freezing tunnels to distribute sub-zero airflow evenly across dense pallets of food products.
Frequently Asked Questions
Q1: Can the S6D710-AH03-03 axial fan be deployed safely in extreme sub-zero refrigeration storage applications?
Yes. This model features an H2 environmental protection class and allows for occasional start-up down to -40°C. For continuous operation below -25°C in deep-freeze refrigeration systems, we provide customized fan versions with specialized low-temperature bearings to prevent lubricant freeze and guarantee 24/7 reliability.
Q2: What built-in mechanism protects this 480V 3-phase refrigeration fan against motor burnout from structural overloads?
The motor includes an integrated internal thermal overload protector (TOP) featuring basic electrical insulation. If the internal motor temperature spikes due to structural blockages or line voltage volatility, the TOP system automatically cuts off power to prevent critical winding failure.
Q3: What specific global regulatory standards and safety marks does this 710mm fan carry for trade compliance?
This industrial-grade refrigeration fan is fully certified under UL 1004-1, CSA C22.2 No. 100, and EAC safety frameworks, while carrying full CE conformity. These certifications ensure the fan satisfies all strict environmental, mechanical, and fire-safety codes globally.
