Ebm-papst R4D630-RB19-05 380V 10665CFM,Centrifugal Fan For Industrial
Brand：ebm-papst (100% Genuine)
Model：R4D630-RB19-05
Category：Centrifugal fans
Description： 100% genuine ebm-papst 630mm AC centrifugal fan. High-pressure 750 Pa delivery with 10665 CFM output for industrial refrigeration systems. Deep warehouse inventory ready for quick dispatch.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand： |
ebmpapst |
|
Part No： |
R4D630-RB19-05 |
|
Fan Type： |
Centrifugal Fan |
|
Rated Voltage(V)： |
380 |
|
Size(mm)： |
630 |
|
Max.Air Flow(CFM)： |
10665 |
|
Max.Pressure(Pa)： |
3600 |
|
Input Power(W)： |
1350 |
|
Speed(RPM)： |
750 |

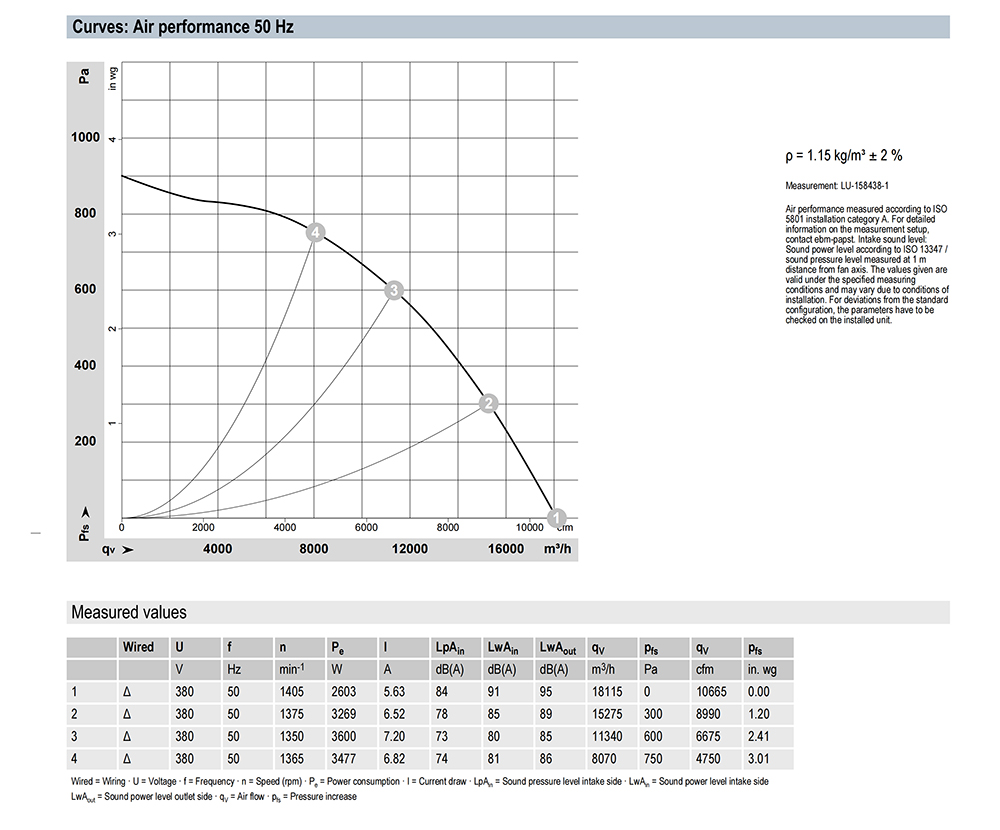

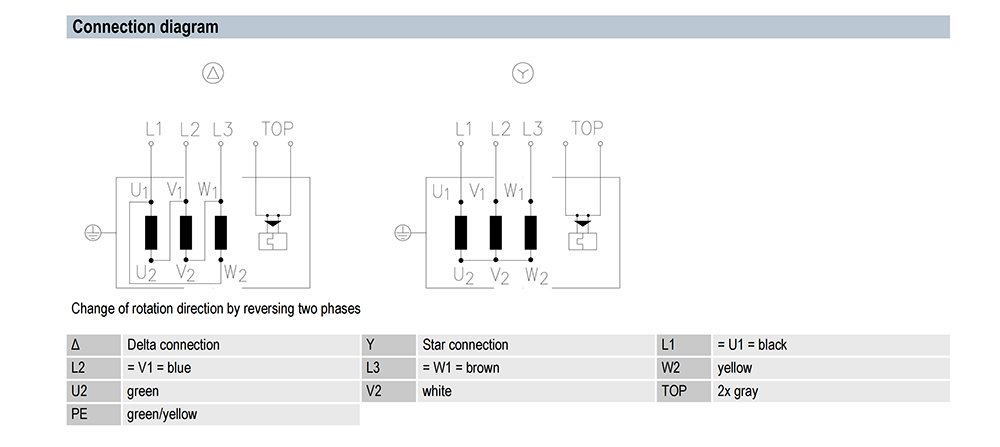

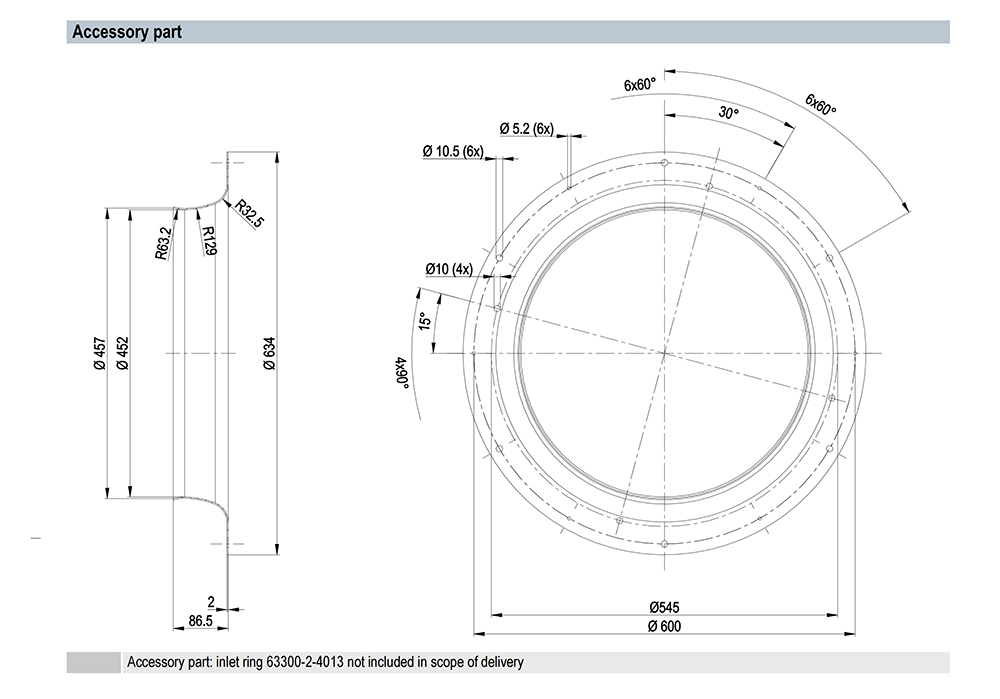

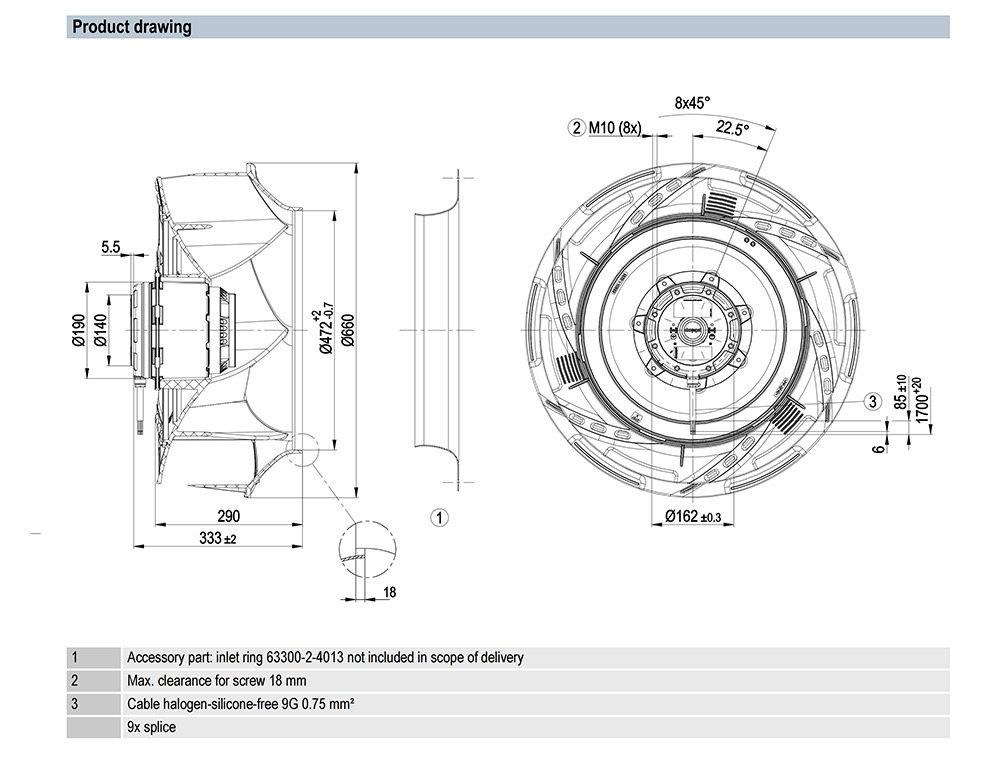

Specification Drawing:
Reliable Cooling Solution for Industrial & HVAC Applications
The R4D630-RB19-05 AC centrifugal fan is designed for high-efficiency airflow in demanding environments. It is widely used as a replacement for ebm-papst fans in industrial refrigeration systems, ensuring stable performance, low energy consumption, and long service life. Its 6-blade PP plastic impeller delivers exceptional static pressure, making it ideal for pushing air through dense, frost-prone cooling coils.

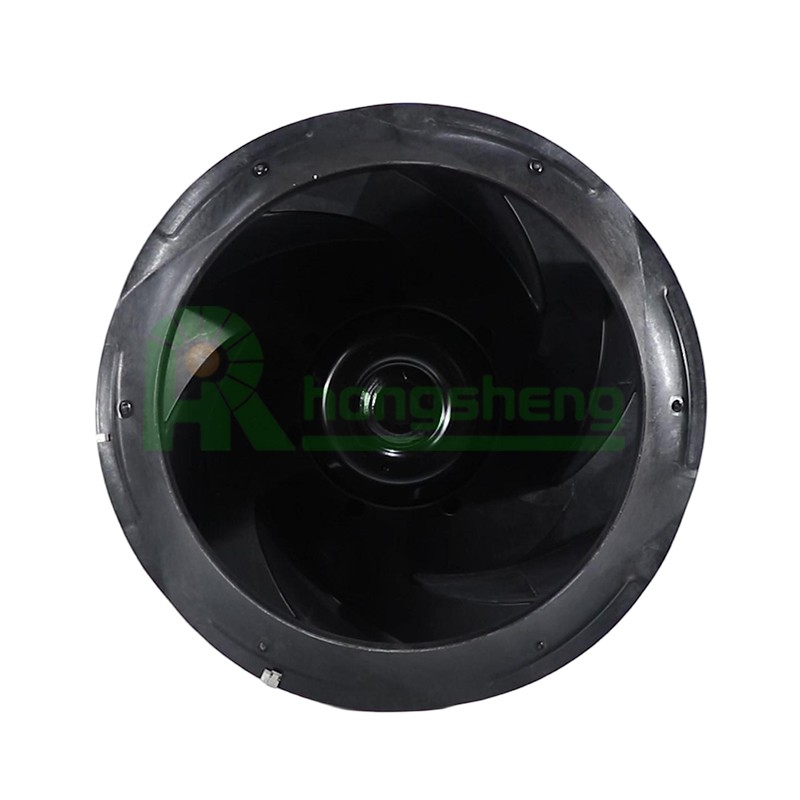

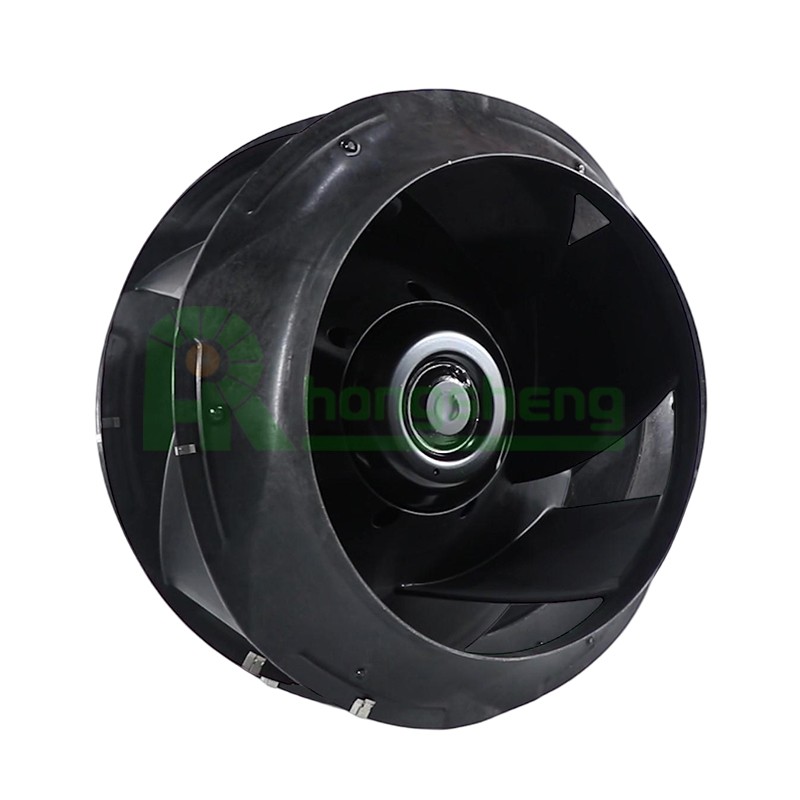

Product Details
（If you need more installation pictures or detailed technical PDF documents of ebm-papst R4D630-RB19-05, please feel free to contact us at any time.）
Why choose us ?► Large quantity of multi brand fans in stock supply
► Global Fast Delivery
► Professional selection support
► Experience in industrial cooling solutions
► Highly trusted by HVAC service providers
Main Application Scenarios
High-Resistance Ducted Refrigeration Units:
Installed in specialized ducted cold rooms where conditioned air must be forced through long air distribution ducts and decorative registers.
Industrial Food Dehydration and Chilling Systems:
Placed within commercial drying or quick-chilling units that require high static pressures to drive air through tightly stacked product trays.
Heavy Frost Evaporator Applications:
Used in industrial low-temperature systems where frost buildup regularly creates high air resistance across the cooling coil surface.
Frequently Asked Questions
Q1: How does the high 750 Pa maximum static pressure of this 630mm centrifugal fan benefit frost-heavy refrigeration applications?
Frost accumulation on evaporator coils dramatically increases system resistance. The backward-curved 6-blade centrifugal design provides a high static pressure of 750 Pa, which cuts through heavy frost restriction to preserve consistent volumetric airflow and prevent overall refrigeration capacity drops.
Q2: What specific environmental protection rating does the R4D630-RB19-05 carry for electronic safety?
The fan carries an IP20 protection rating and an H0 dry-environment classification, featuring a rugged aluminum-encapsulated rotor. It is specifically designed for installation inside the dry, protected electrical enclosures of refrigeration equipment or indoor air-handling chambers.
Q3: How does installing this direct-drive centrifugal fan lower the overall total cost of ownership (TCO) for operators?
By utilizing a direct-drive external rotor motor configuration with permanently lubricated ball bearings, this fan completely eliminates high-maintenance components like drive belts and pulleys. This design drastically cuts annual maintenance labor, eliminates belt dust, and lowers the lifetime total cost of ownership (TCO) for the facility.
