EBM-Papst K6E400-AA17-09 Blowers AC Centrifugal Blower 230V 50Hz/60Hz 68W/80W 690RPM/650RPM
Brand：ebmpapst
Model：K6E400-AA17-09
Category：centrifugal fan
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Nominal data |
|
||
|
Type |
K6E400-AA17-09 |
||
|
Motor |
M6E074-DF |
||
|
Phase |
|
1~ |
1~ |
|
Nominal voltage |
VAC |
230 |
230 |
|
Frequency |
Hz |
50 |
60 |
|
Valid for approval/standard |
|
CE |
CE |
|
Speed |
min-1 |
690 |
650 |
|
Power input |
W |
68 |
80 |
|
Current draw |
A |
0.31 |
0.36 |
|
Motor capacitor |
µF |
2 |
2 |
|
Min. ambient temperature |
°C |
-25 |
-25 |
|
Max. ambient temperature |
°C |
60 |
45 |
|
ml = max. load · me = max. efficiency · fa = running at free air · cs = customer specs · cu = customer unit |
|||

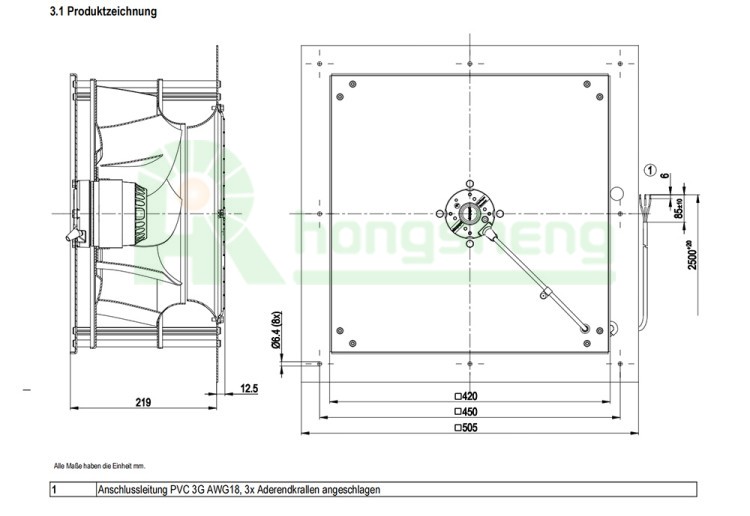

Specification drawing:

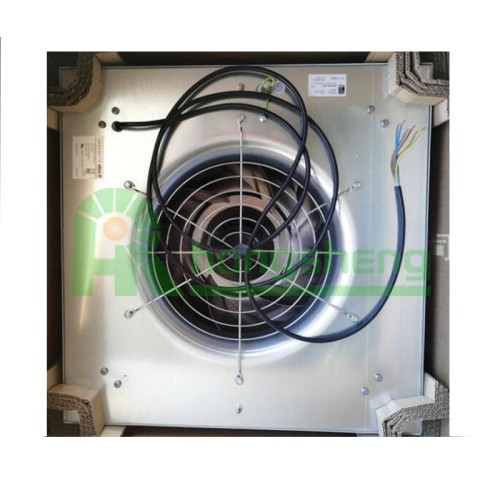

Item Show:
German ebmpapst fan K6E400-AA17-09 can be used in cabinet
The cabinet is generally divided into server cabinet, network cabinet and console cabinet. When the temperature in the cabinet is higher than the ambient temperature, the fan will play a great role. Since the hot air is lighter than the cold air, the air in the cabinet should flow from bottom to top. Therefore, generally, the lower part of the front door or side wall panel of the cabinet should be used as the air inlet and the upper part as the exhaust port.
Online answers to problems of fan:1. How to realize the group control of fan?
2. How to install the wiring of fan?
3. How to prolong the service life of the fan?
Please contact customer service if you have other technical queations.
