ebm-papst K3G400-PW03-01 K3G400-PW03-01/F01 400mm 400V EC Centrifugal AHU Fan
Brand：ebm-papst (100% Genuine)
Model：K3G400-PW03-01
Category：Centrifugal Fan
Description： 100% genuine 400VAC EC centrifugal fan, 2700 RPM, 3400W, up to10880 m³/h airflow. In stock, fast delivery. Ideal for AHU, HVAC, and industrial ventilation.
- Specification
- Details
- Application
|
Type |
K3G400-PW03-01 |
||
|
Motor |
M3G112-IA |
||
|
Phase |
|
3 ~ |
3 ~ |
|
Nominal voltage |
VAC |
400 |
400 |
|
Frequency |
Hz |
50 |
60 |
|
Method of obtaining data |
|
ml |
ml |
|
Speed(rpm) |
min-1 |
2700 |
2700 |
|
Power consumption |
W |
3400 |
3400 |
|
Current draw |
A |
5.2 |
5.2 |
|
Min. ambient temperature |
°C |
-40 |
-40 |
|
Max. ambient temperature |
°C |
40 |
40 |
|
ml=max. load； me=max. efficiency； fa=free air; cs = customer specification； ce = customer equipment |
|||
High-Efficiency EC Centrifugal Fan for HVAC & Industrial Cooling Systems

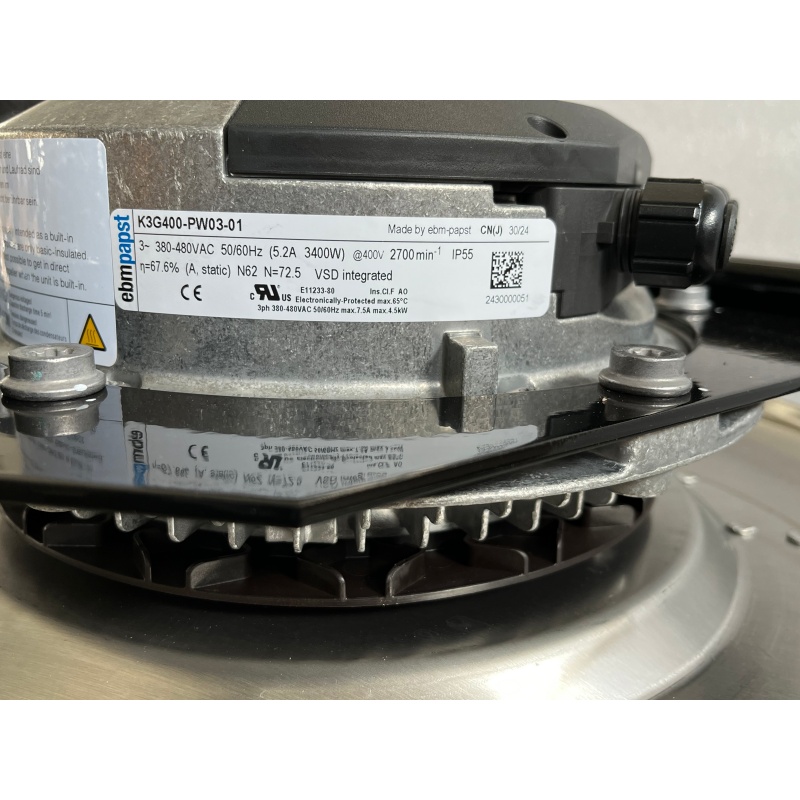

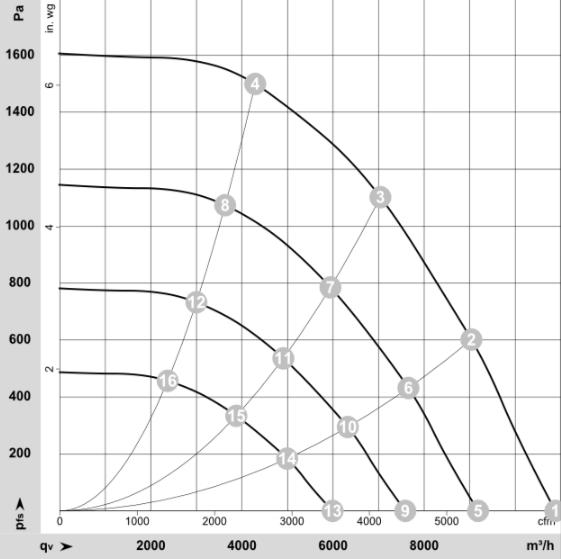

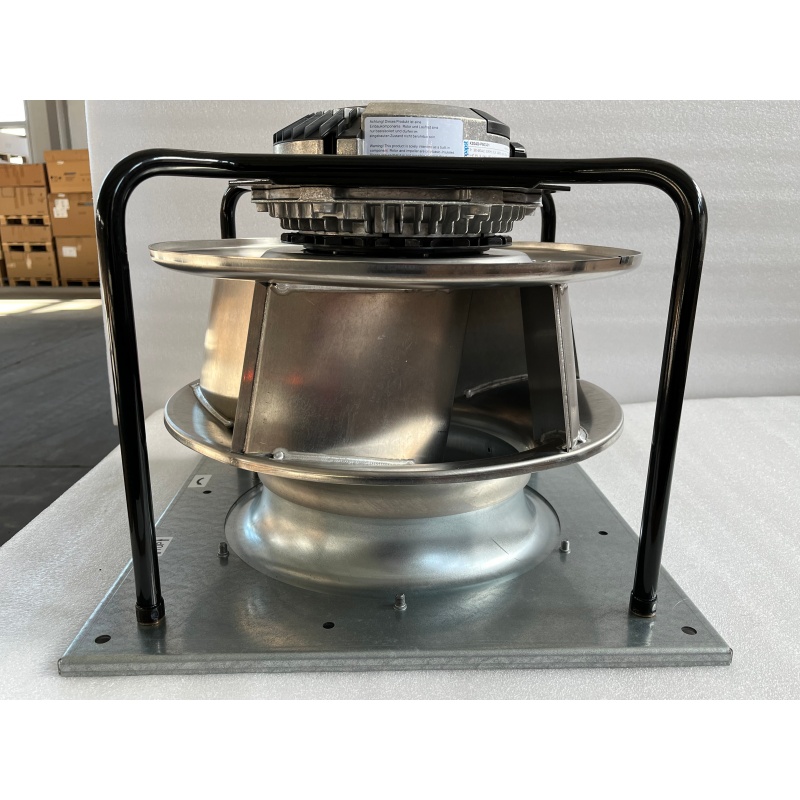

The K3G400-PW03-01 is an original ebm-papst EC centrifugal fan designed for high-performance airflow in demanding HVAC and industrial cooling applications. Operating at 400 VAC (3-phase) with a speed of up to 2700 rpm, it delivers an airflow of 6360 m³/h and a static pressure of 1239 Pa, ensuring powerful and stable ventilation performance.
Equipped with advanced EC motor technology, this fan offers high efficiency (up to 67.6%), low energy consumption, and precise speed control via 0–10V, PWM, or MODBUS-RTU communication. Its robust IP55 protection and wide operating temperature range (-40°C to +40°C) make it suitable for harsh and low-temperature environments.
 |
 |
Why choose us ?
► Large quantity of multi brand fans in stock supply
♦Air Handling Units (AHU) & HVAC Systems
The K3G400-PW03-01 is widely used in AHU systems where stable airflow and energy efficiency are critical. Its EC technology enables precise airflow control, reducing energy consumption while maintaining consistent indoor air quality in commercial buildings, hospitals, and industrial facilities.
♦Industrial Ventilation & Cooling Systems
In industrial environments such as manufacturing plants and equipment cooling systems, this fan provides high static pressure and reliable airflow performance. It is particularly suitable for applications requiring continuous operation and resistance to temperature fluctuations.
♦Refrigeration & Cold Chain Applications
Thanks to its wide operating temperature range (down to -40°C), this fan is suitable for refrigeration systems and cold storage facilities. It ensures stable airflow even in low-temperature environments, supporting efficient cooling performance.
As an original ebm-papst model, it guarantees authentic quality and full compatibility for system upgrades or replacements. Our team also provides professional technical support to help with fan selection, system matching, and application optimization.
