Ebm-papst 8317085063 VBH0500CTTRZ 400V 500MM 10220CFM EC Centrifugal Fan For AHU
Brand：ebm-papst (100% Genuine)
Model：8317085063 VBH0500CTTRZ
Category：Centrifugal Fan
Description： 100% Genuine ebmpapst VBH0500CTTRZ centrifugal fan, 400V, 10220CFM, 1680 Pa for AHU and precision air conditioners. Large stock, fast worldwide delivery, ready for immediate shipment.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand：
|
ebmpapst
|
|
Part No：
|
8317085063 VBH0500CTTRZ
|
|
Fan Type：
|
Centrifugal Fan
|
|
Rated Voltage(V)：
|
400
|
|
Size(mm)：
|
500
|
|
Max.Air Flow(CFM)：
|
10220
|
|
Max.Pressure(Pa)：
|
1680
|
|
Input Power(W)：
|
6210
|
|
Speed(RPM)：
|
2840
|

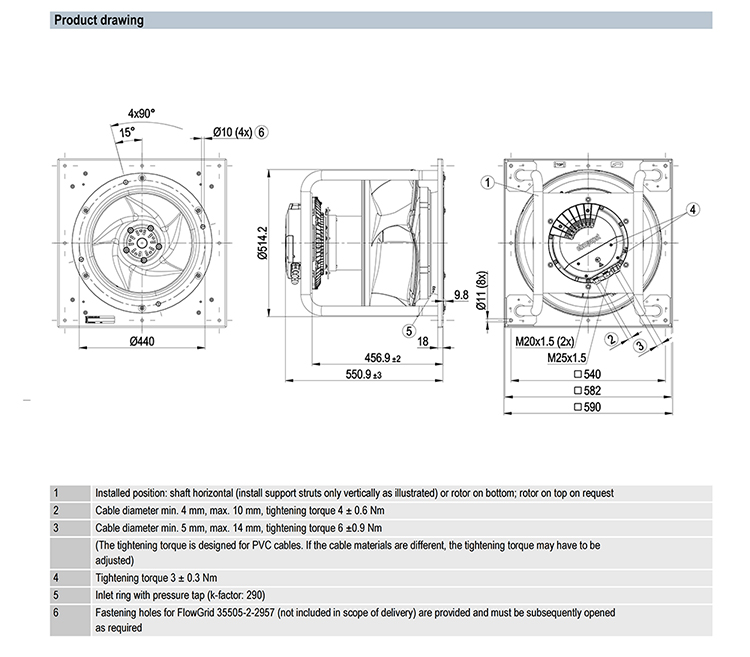

Specification Drawing:
Reliable Airflow Solution for AHU & Precision Air Conditioning Systems
The ebmpapst VBH0500CTTRZ (8317085063) centrifugal fan is engineered to deliver high static pressure and large-volume airflow for demanding HVAC environments. Featuring a 400V EC motor, up to 10220 CFM airflow, 1680 Pa maximum pressure, and 6210W input power, it is designed to maintain stable cooling performance under continuous operation.
Widely applied in AHU (Air Handling Units) and precision air conditioning systems, this fan helps optimize air distribution, improve heat exchange efficiency, and reduce overall energy consumption. Its integrated intelligent control functions, including MODBUS communication, PI controller, soft start, and vibration monitoring, make it an ideal solution for modern intelligent HVAC infrastructures where reliability and efficiency are critical.
Product Details
（If you need more installation pictures or detailed technical PDF documents of ebm-papst 8317085063 VBH0500CTTRZ, please feel free to contact us at any time.）
Why choose us ?► Large quantity of multi brand fans in stock supply
► Global Fast Delivery
► Professional selection support
► Experience in industrial cooling solutions
► Highly trusted by HVAC service providers
Main Application Scenarios
Air Handling Units (AHU)
The VBH0500CTTRZ is particularly suitable for commercial and industrial Air Handling Units, where high static pressure is required to overcome filter resistance and long duct systems. Its stable airflow helps maintain consistent indoor air quality and energy-efficient ventilation.
Precision Air Conditioning Systems
Precision air conditioners demand accurate airflow control to protect sensitive electronic equipment. With integrated EC technology, intelligent speed regulation, and reliable continuous operation, this centrifugal fan supports stable temperature management for mission-critical environments.
Industrial HVAC Retrofit Projects
For upgrading existing HVAC equipment, the VBH0500CTTRZ provides an excellent replacement solution thanks to its high efficiency, integrated electronic control, and compatibility with intelligent building management systems, reducing maintenance requirements and extending system lifespan.
Frequently Asked QuestionsQ1: Is the VBH0500CTTRZ suitable for 24/7 continuous operation in AHU and precision air conditioning systems?
Yes. The fan is designed for S1 continuous-duty operation and utilizes high-quality ball bearings together with intelligent motor protection. It is an excellent choice for 24/7 HVAC applications, including AHU units and precision air conditioners that require uninterrupted cooling performance.
Q2: What advantages do MODBUS RTU and the integrated PI controller provide?
The integrated RS-485 MODBUS RTU communication enables seamless connection with Building Management Systems (BMS), while the built-in PI controller automatically adjusts fan speed according to system demand. This improves energy efficiency, stabilizes airflow, and reduces operating costs for intelligent HVAC projects.
Q3: How can long-term maintenance costs be minimized?
Regular cleaning of filters and impellers, ensuring proper voltage supply, and monitoring system alarms can significantly extend service life. The fan's electronic motor protection, soft-start function, vibration monitoring, and intelligent diagnostics help prevent unexpected failures, reducing downtime and lowering the total cost of ownership (TCO).
