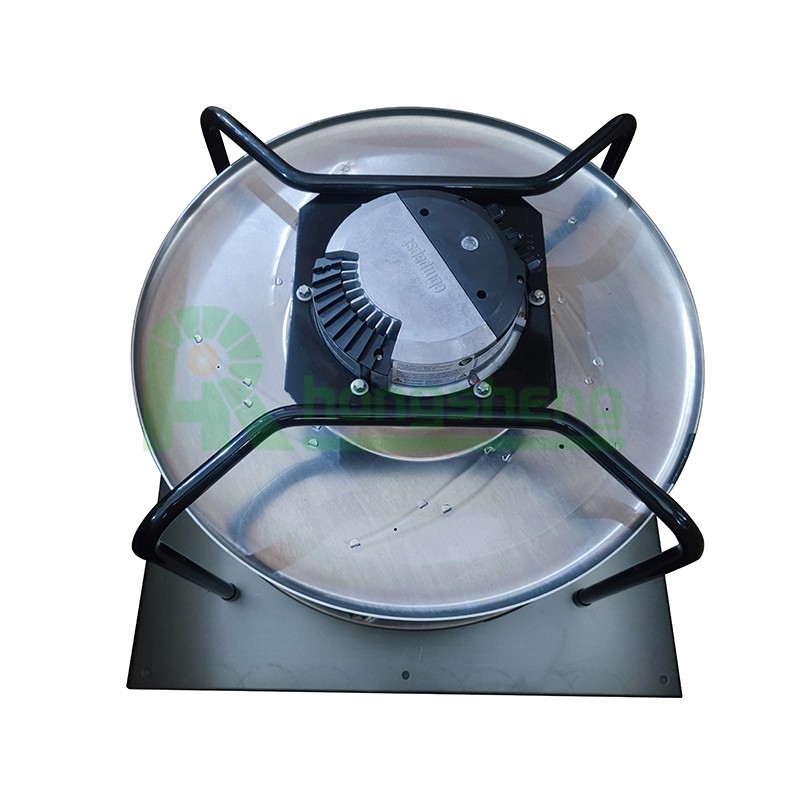

Ebm-papst K3G560-PB22-C1 400V 560MM 9890CFM EC Centrifugal Fan For Data Centers
Brand：ebm-papst (100% Genuine)
Model：K3G560-PB22-C1
Category：Centrifugal Fan
Description： 100% genuine ebm-papst 560mm EC centrifugal fan. Outputs 9890 CFM airflow and 930 Pa static load. Certified for mission-critical data center HVAC upgrades. Deep warehouse inventory ensures rapid delivery.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand： |
ebm-papst |
|
Part No： |
K3G560-PB22-C1 |
|
Fan Type： |
Centrifugal Fan |
|
Rated Voltage(V)： |
400 |
|
Size(mm)： |
560 |
|
Max.Air Flow(CFM)： |
9890 |
|
Input Power(W)： |
3060 |
|
Speed(RPM)： |
1470 |
|
Max.Pressure(Pa): |
930 |

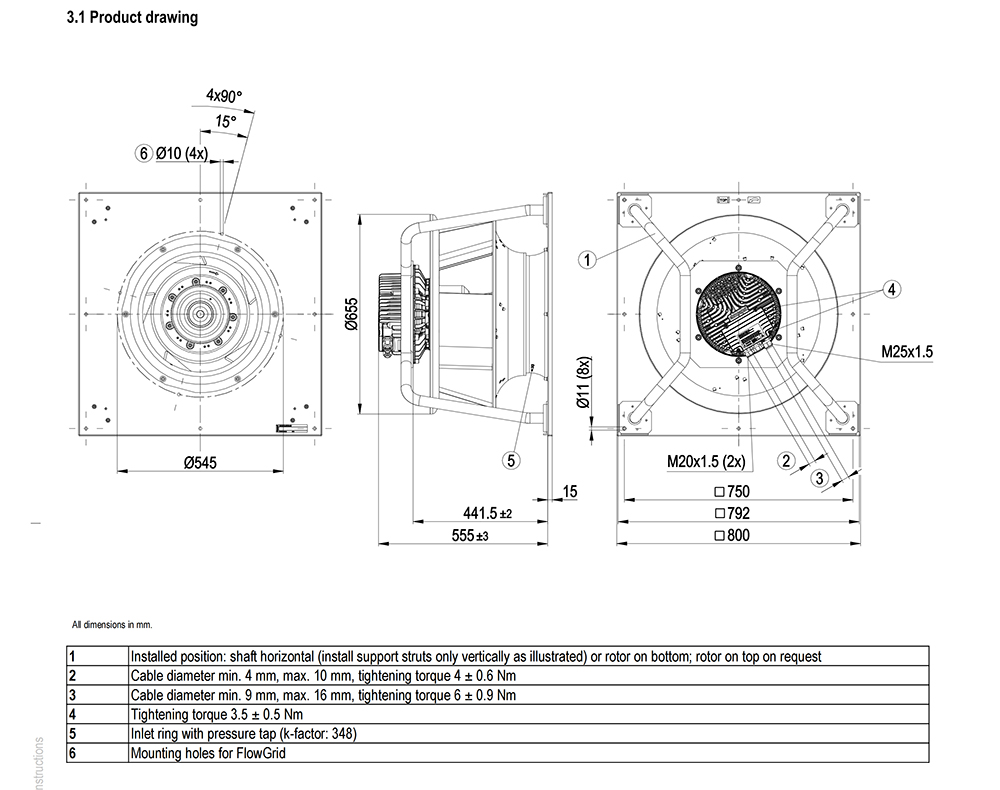

Specification Drawing:
Reliable Cooling Solution for Data Center & IT Infrastructure Applications
The K3G560-PB22-C1 EC centrifugal fan is designed for high-efficiency airflow in demanding environments. It is widely used as a replacement for ebm-papst fans in enterprise data center cooling systems, ensuring stable performance, low energy consumption, and long service life. Its balanced sheet aluminum impeller and rugged galvanized steel support base deliver outstanding aerodynamic efficiency with minimal vibration.
Product Details
（If you need more installation pictures or detailed technical PDF documents of ebm-papst K3G560-PB22-C1, please feel free to contact us at any time.）
Why choose us ?► Large quantity of multi brand fans in stock supply
► Global Fast Delivery
► Professional selection support
► Experience in industrial cooling solutions
► Highly trusted by HVAC service providers
Main Application Scenarios
In-Row Rack Cooling Infrastructure:
Positioned directly between server cabinets in high-density facilities to pull hot exhaust air from the servers and return chilled air immediately to the intake row.
Central Facility Chilled Water Air Handlers (AHUs):
Acts as the high-volume air mover within localized rooftop and indoor air handler packages dedicated to cooling data storage facilities.
High-Capacity UPS and Battery Room Ventilation:
Discharges hydrogen and thermal build-up out of uninterruptible power supply (UPS) batteries, securing secondary back-up power equipment spaces.
Frequently Asked QuestionsQ1: What built-in electrical safety features protect this 560mm centrifugal fan against unexpected phase failure errors on-site?
This fan features smart protection systems, including line undervoltage and phase failure detection, motor current limits, and a built-in soft-start routine. These monitors isolate the internal electronics from harmful supply spikes, ensuring the unit operates safely even on volatile industrial grids.
Q2: How does the soft start function affect the overall power system engineering of an enterprise server facility?
The integrated soft start function slowly steps up motor RPM during power-up, completely removing large inrush current spikes. This prevents voltage dips on the main facility bus, protecting sensitive surrounding IT equipment and reducing strain on emergency backup generators.
Q3: Can this model be mounted vertically or horizontally inside tight inline duct systems without wearing down the bearings prematurely?
Yes, the fan uses premium, permanently sealed ball bearings built to handle multi-axis loads. It can be installed in diverse configurations according to the certified product drawings, giving equipment engineers flexible options for tight layout spaces without sacrificing bearing lifespan.
