Delta AFB0712HHB-F00 Axial Fan For Servers,Switches, Inverter Modules, And Telecom Cabinets
Brand：DELTA
Model：AFB0712HHB-F00
Category：Axial fans
Description： 100% genuine Delta 70x70x15mm fan. Features 12V input, 4300 RPM, 63.78 m³/h airflow for CPU coolers, IPC motherboards, projectors, and medical analyzers. Massive stock ready for fast shipping.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand：
|
Delta
|
|
Part No：
|
AFB0712HHB-F00
|
|
Fan Type：
|
DC Fans
|
|
Rated Voltage(V)：
|
12
|
|
Size(mm)：
|
70x70x15
|
|
Max.Air Flow(m³/h)：
|
63.78
|
|
Max.Pressure(Pa)：
|
52.27
|
|
Input Power(W)：
|
3.12
|
|
Speed(RPM)：
|
4300
|
|
Noise(dB)：
|
38.5
|

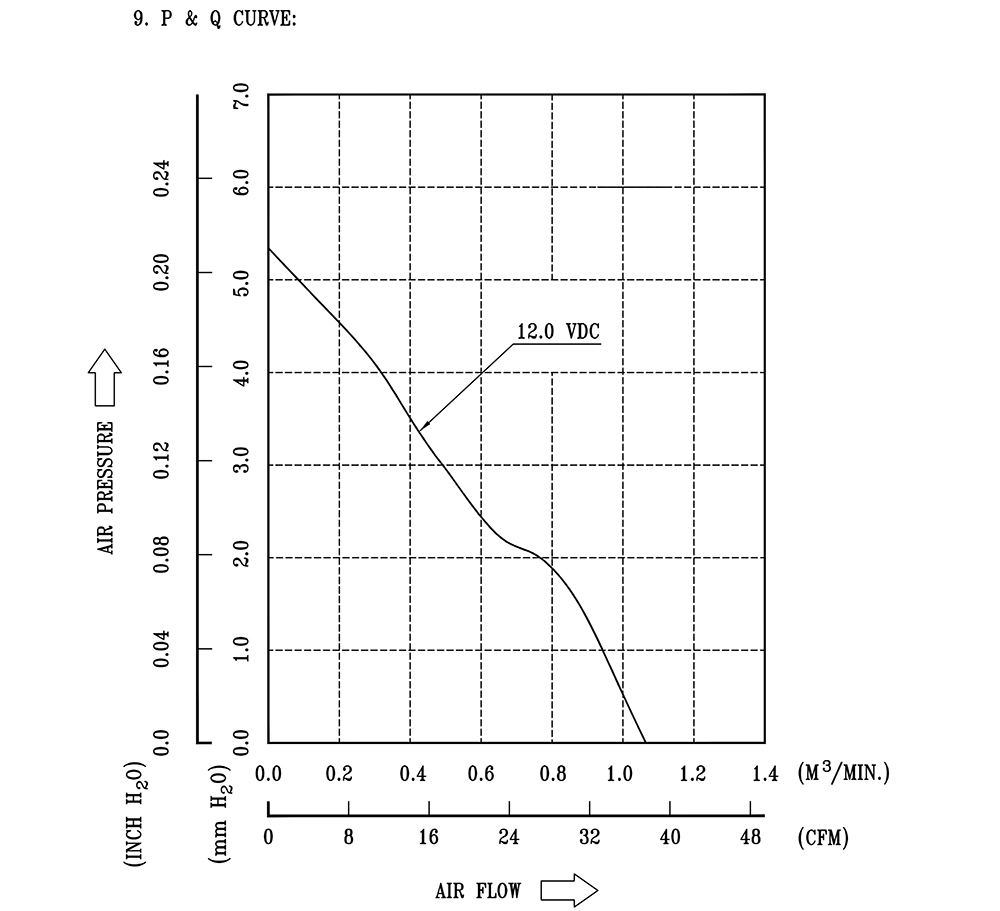

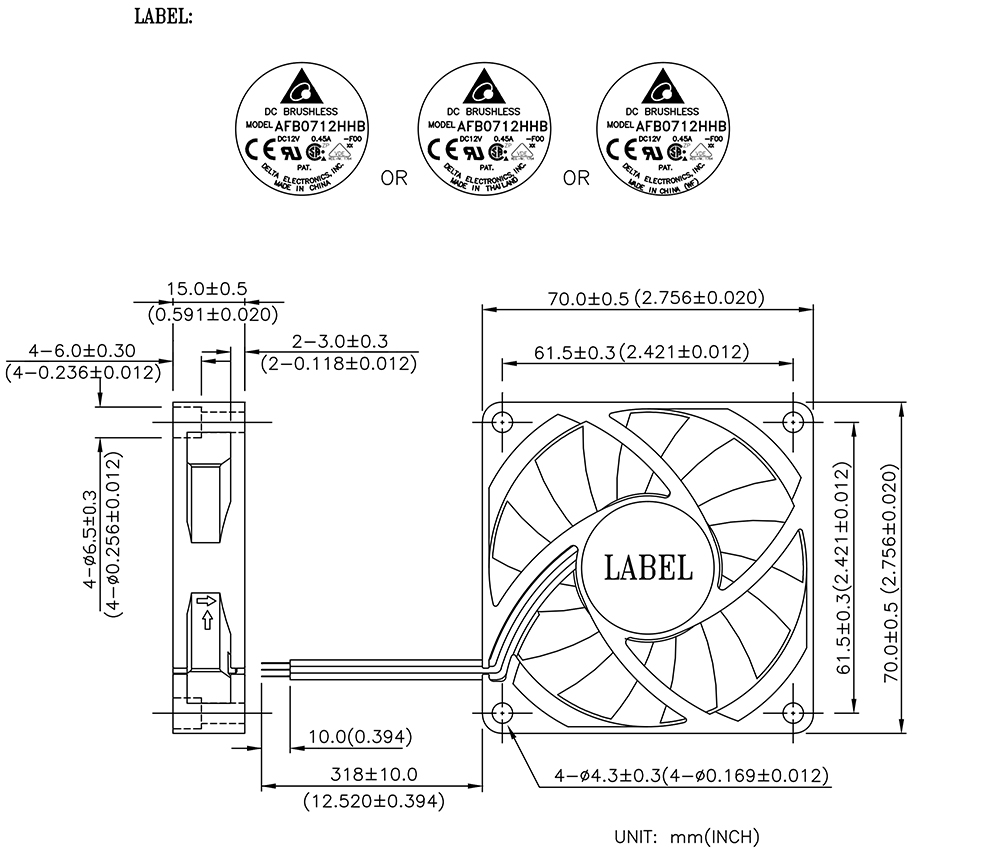

Specification Drawing:
Reliable Cooling Solution for IT & Precision Equipment
The AFB0712HHB-F00 DC fan is designed for high-efficiency airflow in demanding environments. It is widely used as a replacement for Delta fans in CPU coolers, industrial PC (IPC) motherboards, projectors, and medical analyzers, ensuring stable performance, low energy consumption, and long service life. Its ultra-slim 15mm low-profile frame combines a 4300 RPM motor to deliver space-saving, high-velocity thermal management for compact electronic enclosures.

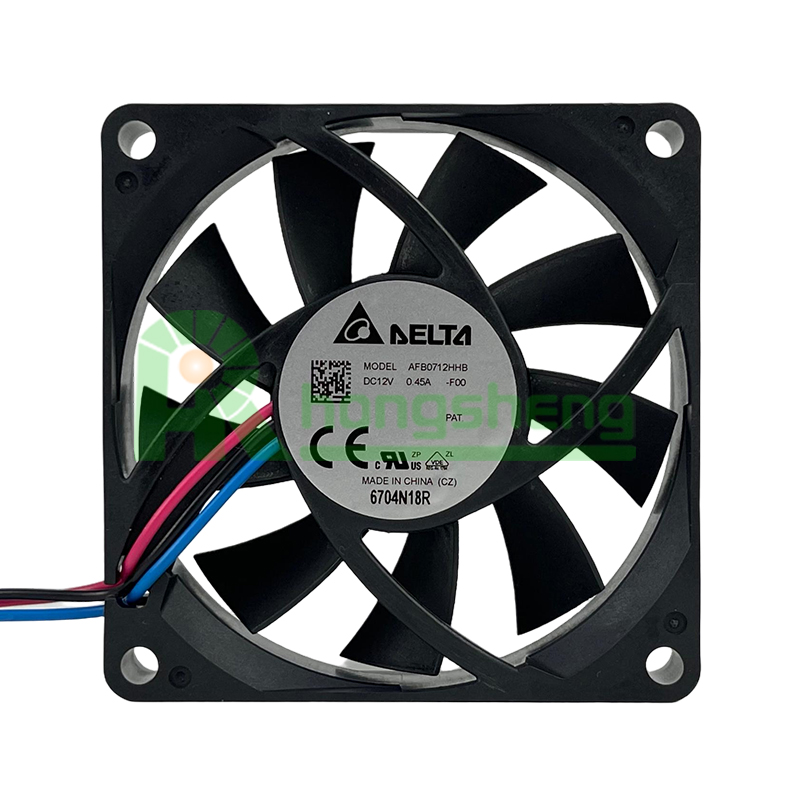

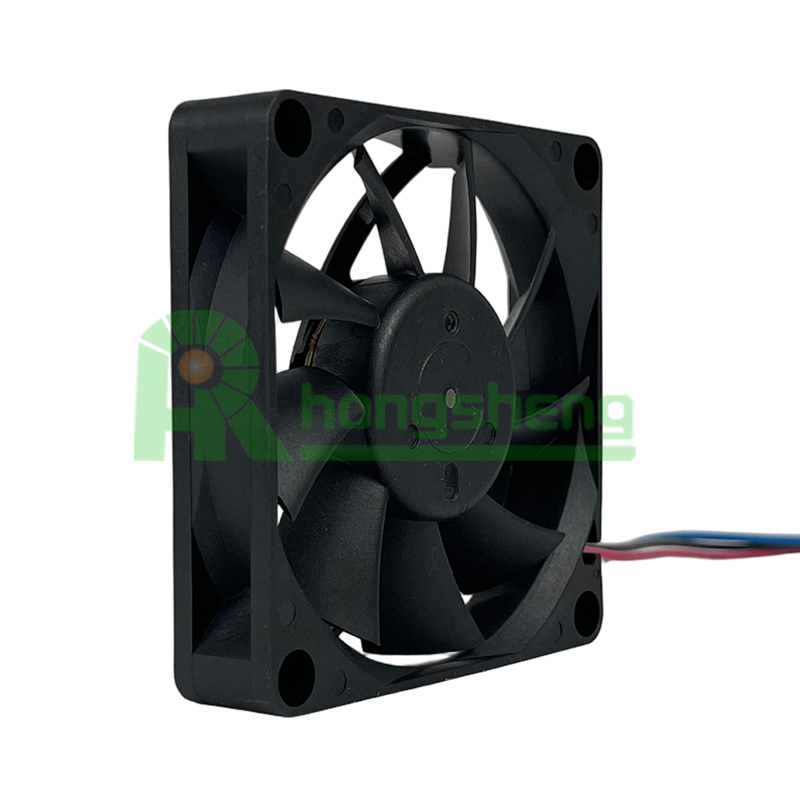

Product Details
（If you need more installation pictures or detailed technical PDF documents of Delta AFB0712HHB-F00, please feel free to contact us at any time.）
 |
 |
Main Application Scenarios
Low-Profile CPU Coolers:
Integrated into compact desktop and slim server heat sink assemblies, pulling heat efficiently from processors to maintain structural thermal safety limits.
Industrial PC (IPC) Motherboards:
Mounted directly onto heavy-duty industrial computer chassis walls to provide focused cross-flow ventilation over microchips and expansion slots.
Commercial Projection Systems:
Positioned within optical engine compartments of high-lumen projectors to dissipate extreme heat from internal lamp components and imaging chips.
Frequently Asked QuestionsQ1: How does the ultra-slim 15mm design of the AFB0712HHB-F00 balance high airflow with strict acoustic noise control?
This 70mm fan uses an optimized thin-profile blade layout that achieves a massive 63.78 m³/h volumetric flow rate at 4300 RPM, while capping acoustic emissions at 38.5 dB. This precise engineering provides quiet, low-vibration operation, making it ideal for noise-sensitive medical clinics and quiet projection environments.
Q2: Does this Delta 12V DC fan support continuous 24/7 operation in harsh industrial computing environments?
Yes. Built with premium dual ball bearings, this fan is engineered for uninterrupted, 24/7 continuous duty cycles under fluctuating thermal loads. The robust bearing architecture minimizes friction wear over long periods, preventing mechanical drag and dropping the overall total cost of ownership (TCO) for automated factory lines.
Q3: Is your warehouse inventory of the AFB0712HHB-F00 stable enough to accommodate immediate bulk shipments?
We maintain an extensive local warehouse stock of this authentic Delta 70mm model. This stable supply chain strategy lets us offer immediate fast global delivery, allowing medical and industrial equipment maintenance crews to secure genuine hardware quickly and avoid long manufacturing backlogs.
