EBM-Papst R2E140-AS77-37/C01 Centrifugal Ball Bearing 230VAC 100W/110W 0.45A/0.48A 50Hz/60Hz
Brand：ebmpapst
Model：R2E140-AS77-37/C01
Category：Centrifugal fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn
- Specification
- Details
- Application
ebmpapst backward centrifugal fan | model：R2E140-AS77-37/C01| motor：M2E068-BF
|
Nominal data |
|
||
|
Type |
R2E140-AS77-37/A01 |
||
|
Motor |
M2E068-BF |
||
|
Phase |
|
1~ |
1~ |
|
Nominal voltage |
VAC |
230 |
230 |
|
Frequency |
Hz |
50 |
60 |
|
Valid for approval/standard |
|
CE |
CE |
|
Speed |
min-1 |
1500 |
1400 |
|
Power input |
W |
100 |
110 |
|
Current draw |
A |
0.45 |
0.48 |
|
Capacitor |
µF |
2 |
2 |
|
Max. Back pressure |
Pa |
0 |
0 |
|
Capacitor voltage |
VDB |
450 |
450 |
|
Min. ambient temperature |
°C |
-25 |
-25 |
|
Max. ambient temperature |
°C |
45 |
40 |
|
ml = max. load · me = max. efficiency · fa = running at free air · cs = customer specs · cu = customer unit |
|||

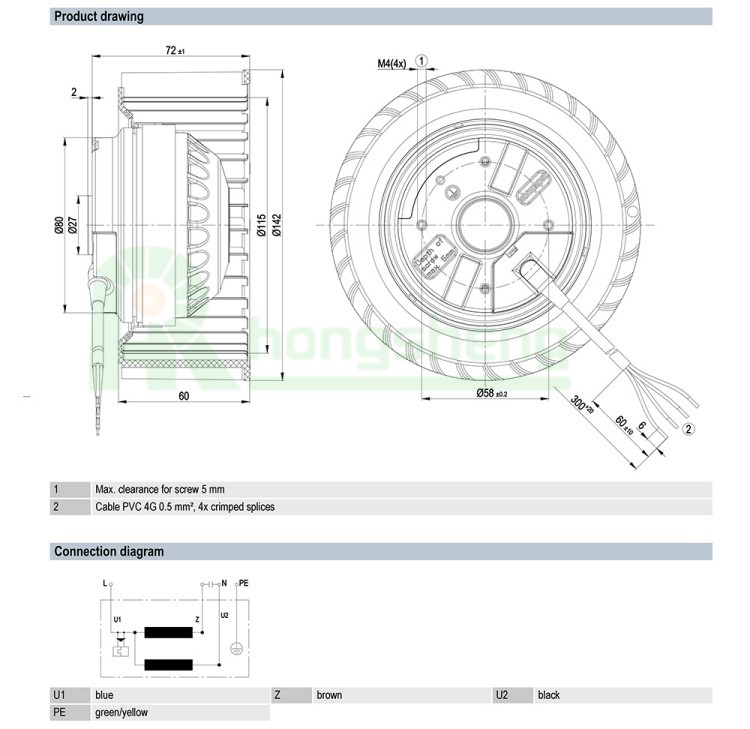

ebmpapst——R2E140-AS77-37/C01——Structural drawing：
ebmpapst backward centrifugal fan | model：R2E140-AS77-37/C01 | motor：M2E068-BF
Ebmpapst R2E140-AS77-37/C01 cooling fan
Beijing Hengrui Hongsheng Mechanical & Electrical Equipment Co., Ltd. is an enterprise engaged in the sales of fans and industry control products. It mainly provides ventilation and heat dissipation products and industry control system accessories. Those products are widely used in ventilation, air conditioning, refrigeration, heating, electric automation, inverter, rail transit, HVAC (FFU/ AHU), air purification, wind power generation, industrial medical treatment, new energy vehicles and other industries.
Online answers to problems of fan:
1. How to select a fan?
2. How to prolong the service life of the fan?
3. How the fan works?
Please contact customer service if you have other technical queations.
