Ebm-papst A4D500-AM01-03 Axial fans 400V, 1350RPM/1510RPM,690W/950W,
Brand：ebmpapst
Model：A4D500-AM01-03
Category：Axial fans
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / sales09@bjhengrui.cn / qin@bjhengrui.cn
- Specification
- Details
- Application
Ebmpapst axial fan | Model：A4D500-AM01-03 | Motor : M4D110-GF| Sufficient Stock
|
Nominal data |
|
|
|
||
|
Type |
A4D500-AM01-03 |
||||
|
Motor |
M4D110-GF |
||||
|
Phase |
|
3~ |
3~ |
3~ |
3~ |
|
Nominal voltage |
VAC |
230 |
230 |
400 |
277 |
|
Verschaltung |
|
△ |
△ |
Y |
Y |
|
Frequency |
Hz |
50 |
60 |
50 |
60 |
|
Valid for approval / standard |
|
CE |
CE |
CE |
CE |
|
Speed |
min-1 |
1350 |
1510 |
1350 |
1590 |
|
Power input |
W |
690 |
950 |
690 |
1050 |
|
Current draw |
A |
2.34 |
2.77 |
1.35 |
2.72 |
|
Max. Back pressure |
Pa |
155 |
145 |
155 |
160 |
|
Max. ambient temperature |
°C |
65 |
60 |
60 |
60 |
|
Min. ambient temperature |
°C |
-40 |
-40 |
-40 |
-40 |
|
Starting current |
A |
10.6 |
9.7 |
12.1 |
9.7 |
|
ml = max. load · me = max. efficiency · fa = running at free air · cs = customer specs · cu = customer unit |
|||||
Ebmpapst axial fan | Model：A4D500-AM01-03 | Motor : M4D110-GF| Sufficient Stock

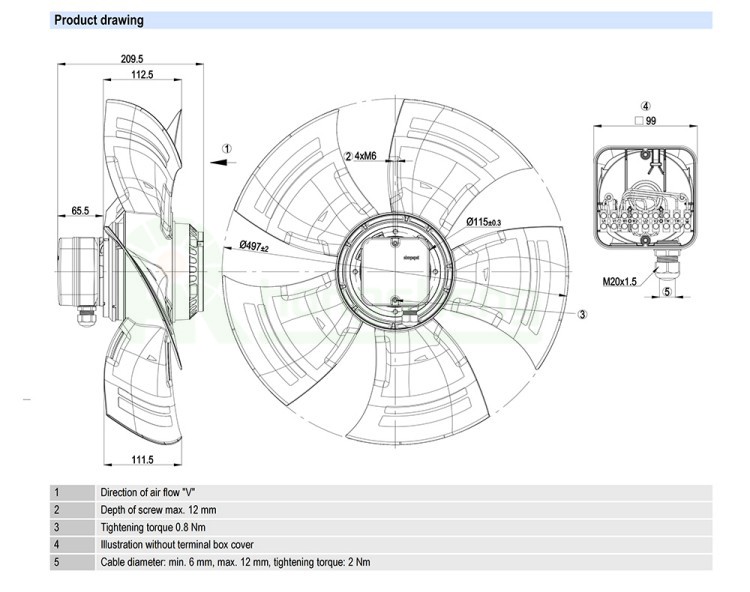

ebmpapst——A4D500-AM01-03 ——Structural drawing：

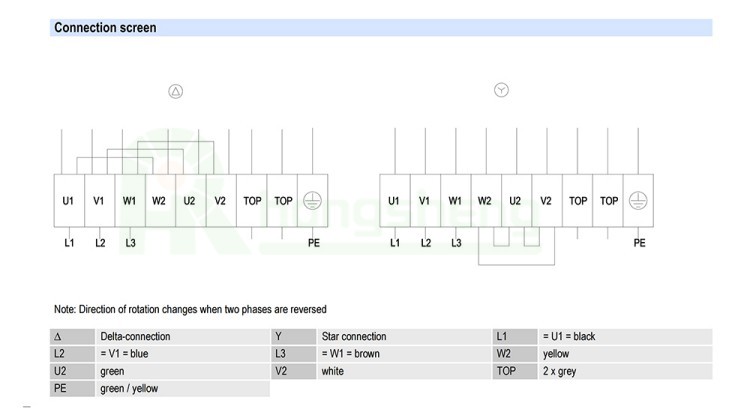

ebmpapst——A4D500-AM01-03——Connection screen：

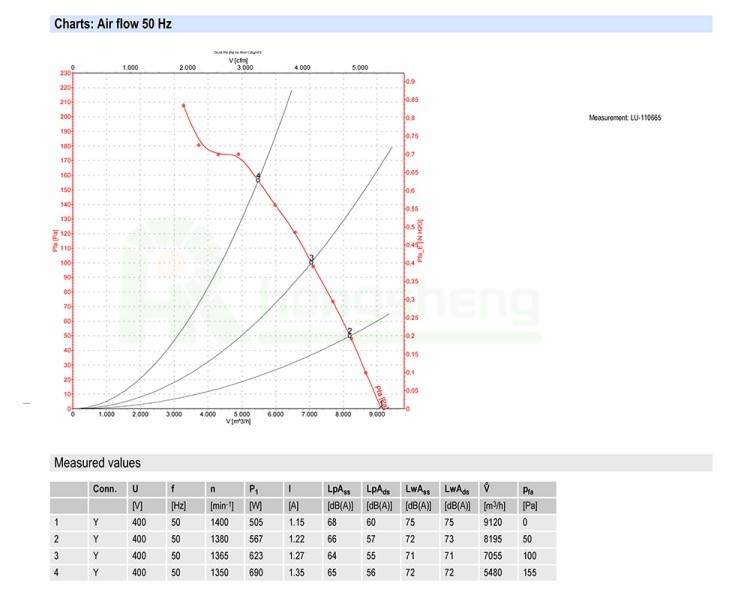

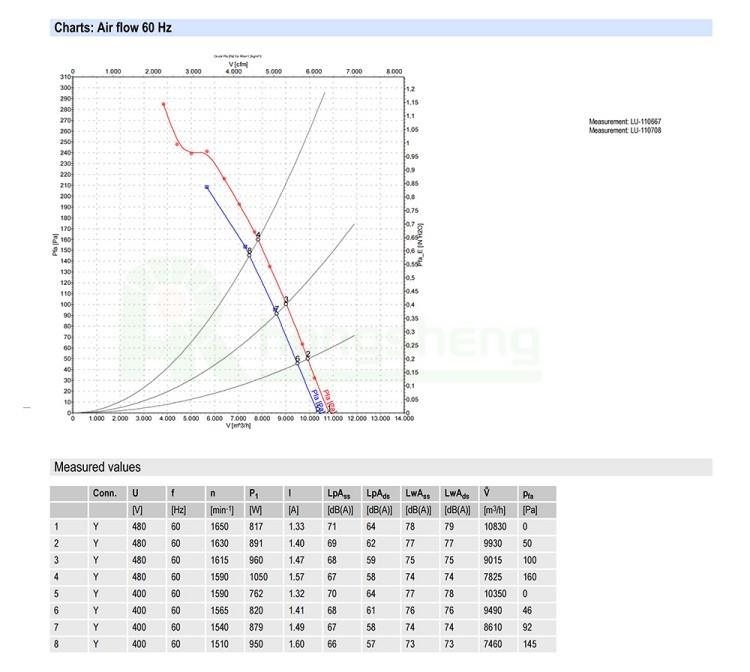

ebmpapst——A4D500-AM01-03——Air flow：

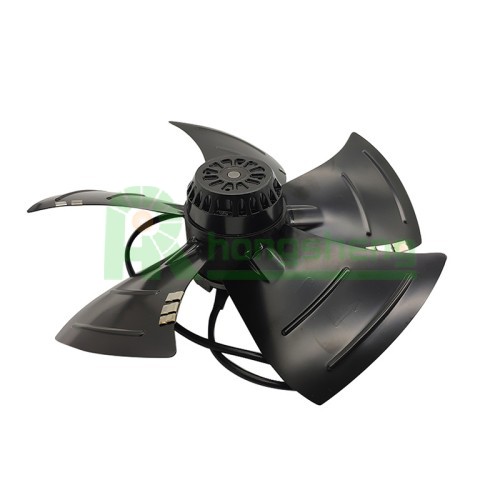

ebm papst A4D500-AM01-03 Cooling fan
