EBM-Papst G1G097-AA05-01 Blowers DC Centrifugal Blower, 97mm Round, 24VDC, 55.9CFM, 59dBA, 16W, Ball Bearing
Brand：ebmpapst
Model：G1G097-AA05-01
Category：centrifugal fan
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / sales09@bjhengrui.cn / qin@bjhengrui.cn
- Specification
- Details
- Application
ebmpapst centrifugal fan with single inlet | model：G1G097-AA05-01 motor：M1G045-BE
|
Nominal data |
||
|
Type |
G1G097-AA05-01 |
|
|
Motor |
M1G045-BE |
|
|
Nominal voltage |
VDC |
24 |
|
Nominal voltage range |
VDC |
16...28 |
|
Power input |
W |
16 |
|
Speed |
RPM |
2650 |
|
Size |
mm |
97 |
|
Max. ambient temperature |
°C |
60 |
|
Min. ambient temperature |
°C |
-25 |
Adequate Stock.
Place an order and you will get a coupon $5 as well as a minimum 5% discount
ebmpapst centrifugal fan with single inlet | model：G1G097-AA05-01 motor：M1G045-BE
The scroll housing of single inlet centrifugal fans is open on one side. The characteristic features of this ebm-papst product series are high efficiency, a low noise level, relatively small air flow with a high increase in static pressure, robust design and space-saving application.

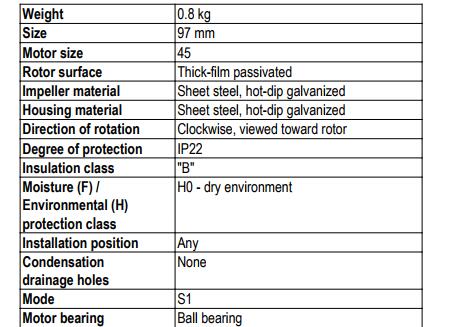

ebmpapst——G1G097-AA05-01——Nominal data：

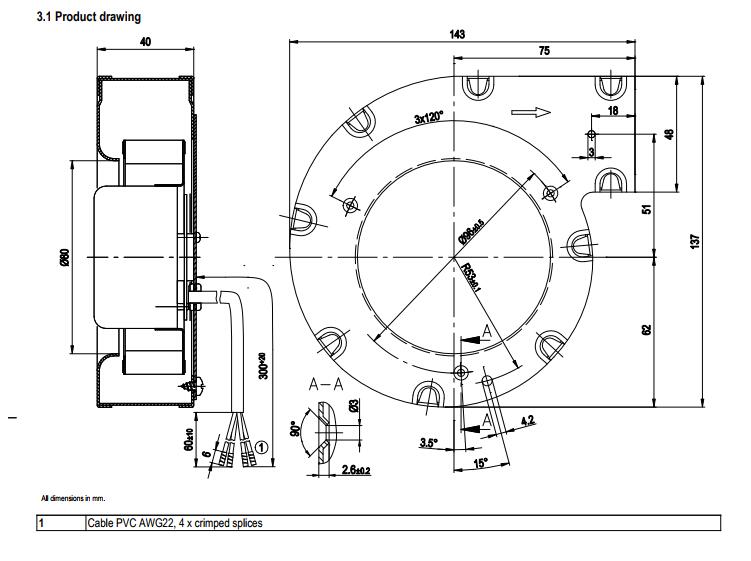

ebmpapst——G1G097-AA05-01——Structural drawing：

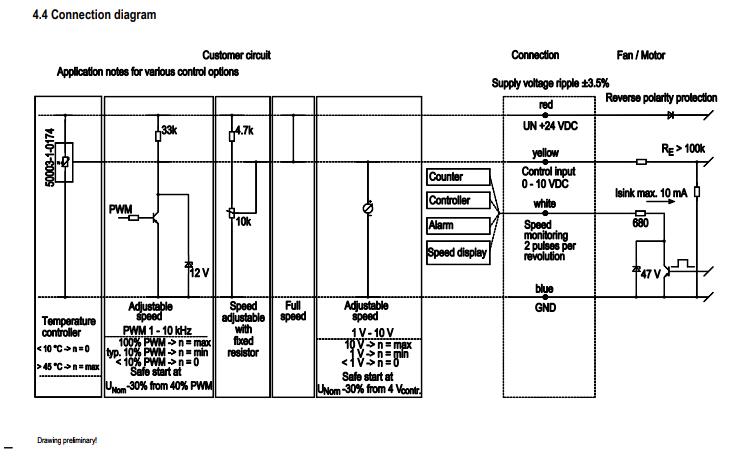

ebmpapst——G1G097-AA05-01——Connection screen：
Ebm fan is widely used，whether it is Drive technology,Automotive, Rail technology, Electronics, Household appliances,Heating,Ventilation and air-conditioning technology,or Refrigeration technology,Machines and systems, Medical and laboratory technology, IT / Telecom, Technical building equipment planners,EBM fans are everywhere.As an authorized agent of ebm,henry is familiar with fan technology. We only provide new and authentic fans for our customers, and strive to set a model for the global fan industry.
