Nominal data

Type

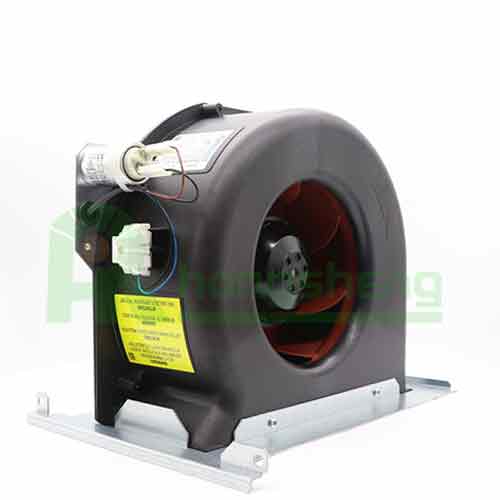

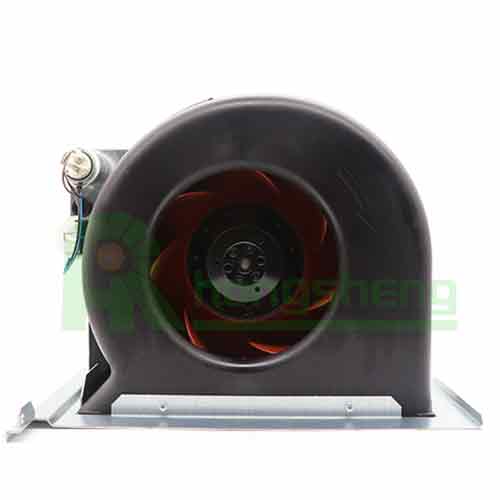

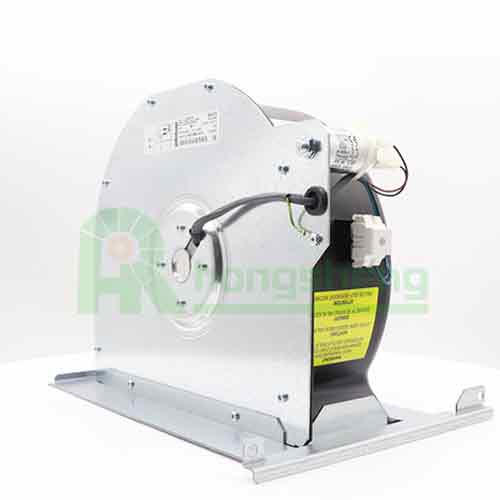

K2E225-RB92-09

Motor

M2E068-DF

Phase

1~

1~

1~

Nominal voltage

VAC

230

230

230

Frequency

Hz

50

60

60

Valid for approval / standard

CE

CE

UL 2111

Speed

min-1

2550

2700

2700

Power input

W

145

200

215

Current draw

A

0.64

0.88

9

Motor capacitor

µF

3.5

3.5

3.5

Capacitor voltage

VDB

450

450

450

Min. ambient temperature

°C

-25

-25

-25

Max. ambient temperature

°C

60

60

60

Starting current

A

1.25

1.2

ml = max. load · me = max. efficiency · fa = running at free air · cs = customer specs · cu = customer unit

Subject to alterations

Technical features

Mass

4.1 kg

Size

225 mm

Surface of rotor

Coated in black

Material of impeller

PA plastic

Housing material

PA plastic; sheet steel, galvanised

Number of blades

7

Direction of rotation

Clockwise, seen on rotor
