centrifugal fan D2E146-AP47-C3
Brand：ebmpapst
Model：D2E146-AP47-C3
Category：Centrifugal fans
Description： -
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application

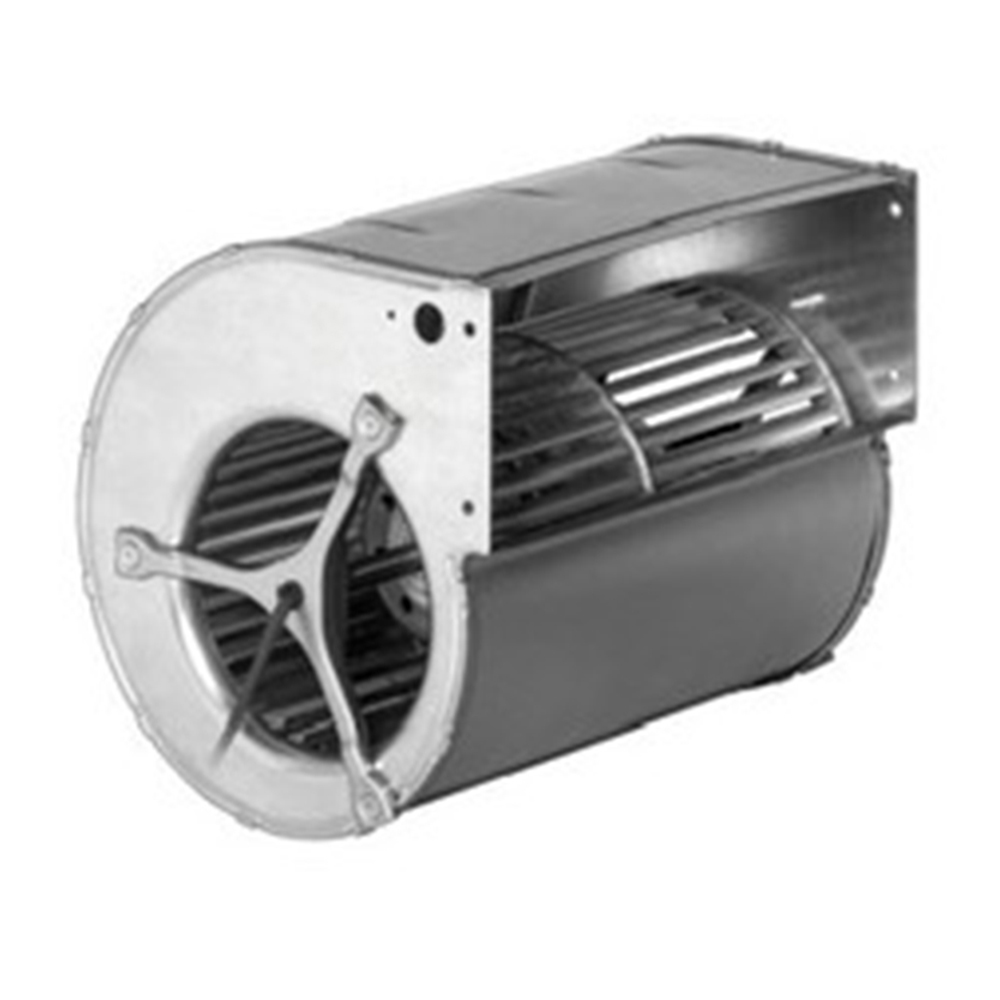

Cooling fan | ebmpapst centrifugal fan with dual inlet | model：D2E146-AP47-C3

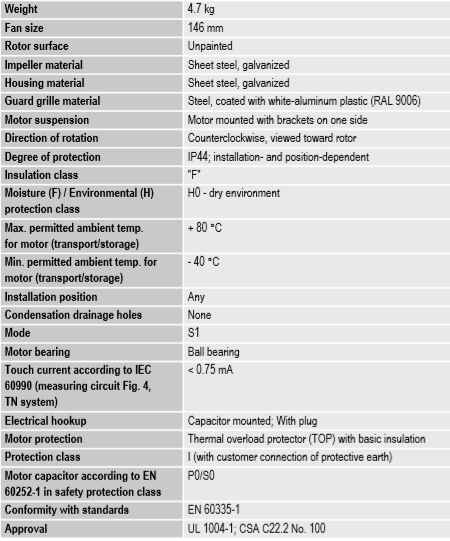

ebmpapst——D2E146-AP47-C3——Technical description：
For more information，please contact：
Wechat：+86 18701526587 / +86 15010372387
Skype: bjhengryRP1983@hotmail.com
bjhengry2018@gmail.com
Cooling fan | ebmpapst centrifugal fan with dual inlet | model：D2E146-AP47-C3 motor：M2E068-EC
Centrifugal fans from ebm-papst are available with forward- or backward-curved blades. The low-noise centrifugal fans with forward-curved blades are also supplied with a scroll housing. The centrifugal fans with backward-curved blades are designed as free-wheeling fans and do not require a scroll housing. For the centrifugal fans with external rotor motors, the motor is positioned in the impeller, resulting in optimum cooling of the motor as well as an especially compact design. The entire product line is available in both AC and GreenTech EC technology.

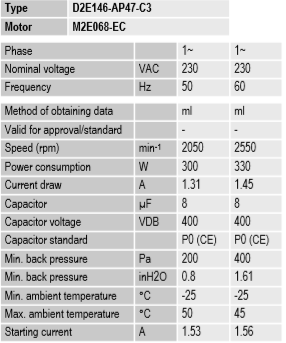

ebmpapst——D2E146-AP47-C3——Nominal data：

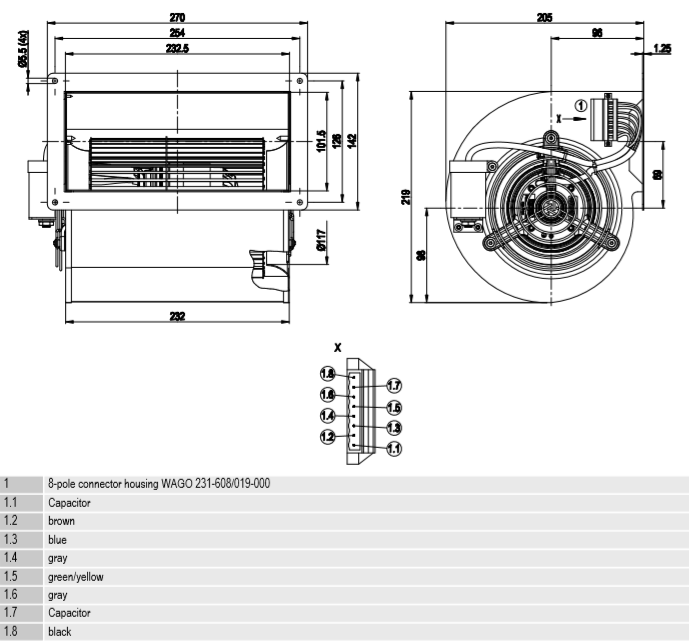

ebmpapst——D2E146-AP47-C3——Structural drawing：

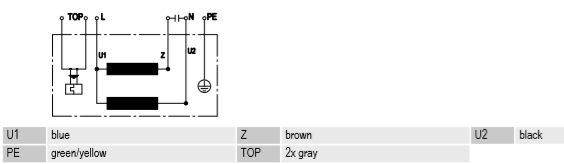

ebmpapst——D2E146-AP47-C3——Connection screen：

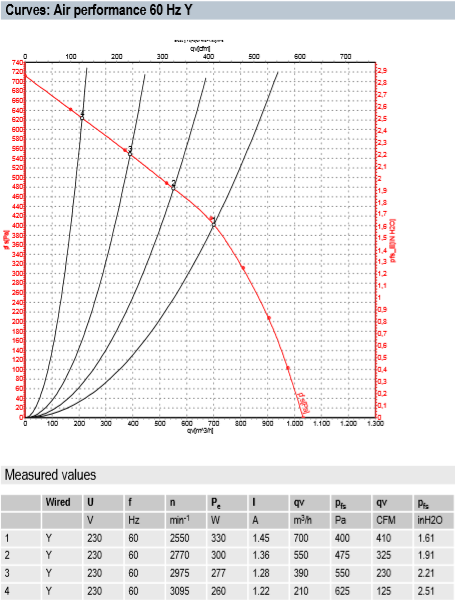

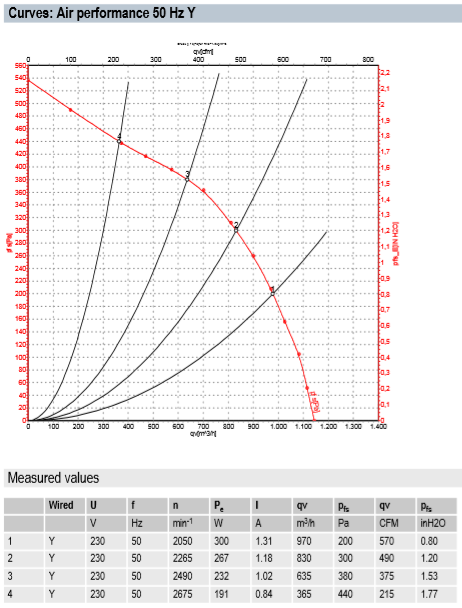

ebmpapst——D2E146-AP47-C3——air flow：
For more information，please contact：
Wechat：+86 18701526587 / +86 15010372387
Skype: bjhengryRP1983@hotmail.com
bjhengry2018@gmail.com
Ebm fan is widely used，whether it is automobile, railway, electronic products, medical treatment, or household, ventilation, air conditioning, refrigeration system, EBM fans are everywhere. Depending on the motor type used, the double inlet fans with state-of-the-art EC technology cover almost every conceivable application area. You can choose between eleven sizes with drive outputs between 85 W and 3 kW. Thus a customised solution is available for virtually any application, including compact air handling units, air curtains, fan coil units, air heaters for factory buildings or as a cooling fan for forced cooling of power converters, generators or telecommunications systems.As an authorized agent of ebm,henry is familiar with fan technology. We only provide new and authentic fans for our customers, and strive to set a model for the global fan industry.
Henry also offers other ebmpapst fans，the models are as follows：
D3G180-AB62-01
D3G200-BB22-71
D3G225-CC14-71
D3G250-ED01-71
D3G250-EE51-11
D3G250-EF41-01
D3G283-AB32-11
D3G283-AB37-01
D3G318-AA35-01
D3G318-AA37-11
D3G318-BB34-11
D3G318-BB35-01
D4D180-CB01-02
D4D200-CA01-02
D4D225-CC01-02
D4D225-FH02-01
D4D225-GH02-01
D4D250-BA02-01
D4D250-CA02-01
D4E133-AH01-58
D4E133-DH01-J4
Because our company sells more models of fans, please contact customer service for other fans.
