Smoke Extract Fan 400 ºC/2h - 300 ºC/2h

TCMP Smoke Extract Fans SODECA

Brand:SODECA

Model:TCMP

Category:-

Sales Hotline:+86 10-62547612 Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
  • Specification
  • Details
  • Application

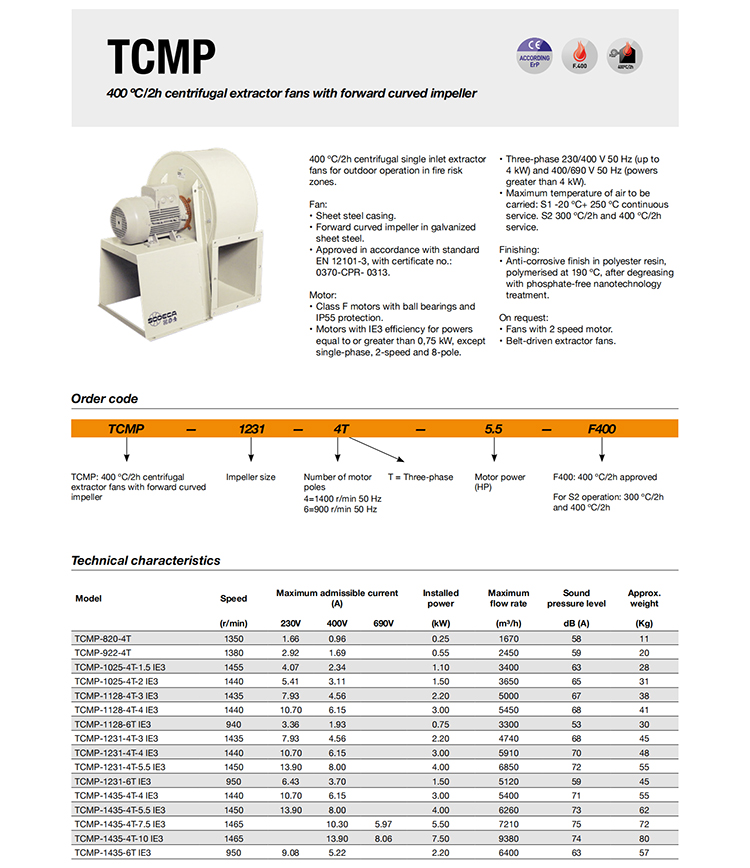

400 ºC/2h centrifugal extractor fans, with forward curved impeller
400 ºC/2h centrifugal single inlet extractor fans for operation outside of fire risk zones.
Fan:
• Sheet steel casing.
• Forward curved impeller in galvanised sheet steel.
• Approved in accordance with standard EN 12101-3, with certificate no.: 0370-CPR- 0313.
Motor:
• Class F motors with ball bearings and IP55 protection.
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Maximum temperature of air to be carried: S1 -25 ºC+ 250 ºC continuous service. S2 300 ºC/2h and 400 ºC/2h service.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
On request:
• Fans with 2 speed motor.
• Belt driven extractor fans.
400 ºC/2h centrifugal single inlet extractor fans for operation outside of fire risk zones.
Fan:
• Sheet steel casing.
• Forward curved impeller in galvanised sheet steel.
• Approved in accordance with standard EN 12101-3, with certificate no.: 0370-CPR- 0313.
Motor:
• Class F motors with ball bearings and IP55 protection.
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Maximum temperature of air to be carried: S1 -25 ºC+ 250 ºC continuous service. S2 300 ºC/2h and 400 ºC/2h service.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
On request:
• Fans with 2 speed motor.
• Belt driven extractor fans.
