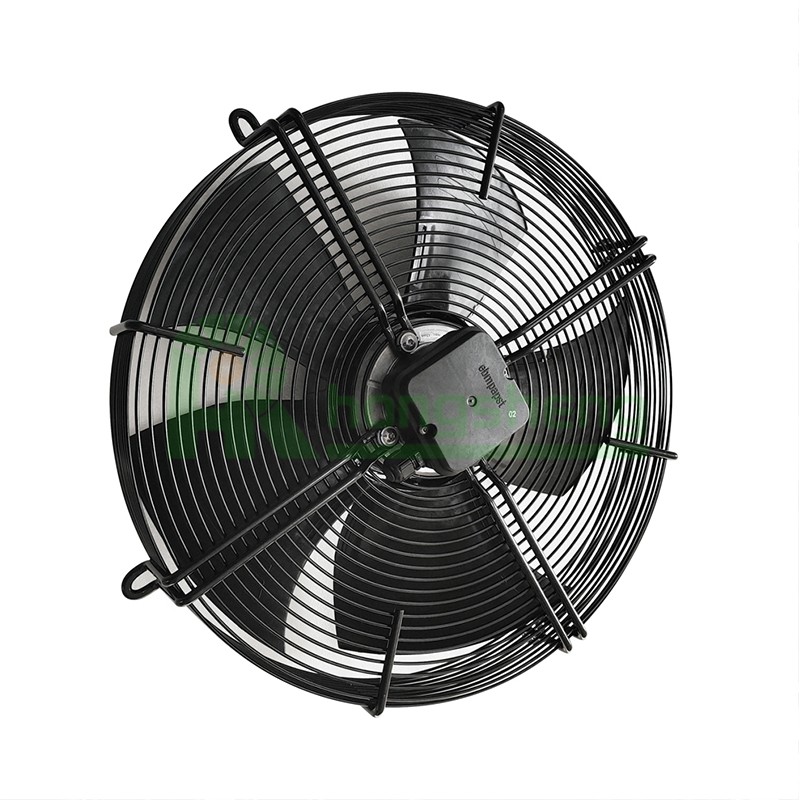

Ebm-papst S4D500-AM03-02 400V 500MM 6424CFM Axial Fan For Condenser Evaporator
Brand：ebm-papst (100% Genuine)
Model：S4D500-AM03-02
Category：Axial fans
Description： 100% Genuine ebm-papst S4D500-AM03-02 axial fan, 400V, 500mm, 6424CFM airflow for condensers and evaporators. Large stock, fast worldwide shipping, reliable refrigeration cooling performance.
- Specification
- Details
- Application
Nominal data:
|
Brand： |
ebmpapst |
|
Part No： |
S4D500-AM03-02 |
|
Fan Type： |
Axial Fan |
|
Rated Voltage(V)： |
400 |
|
Size(mm)： |
500 |
|
Max.Air Flow(CFM)： |
6424 |
|
Max.Pressure(Pa)： |
140 |
|
Input Power(W)： |
720 |
|
Speed(RPM)： |
1390 |
|
Noise(dB)： |
75 |

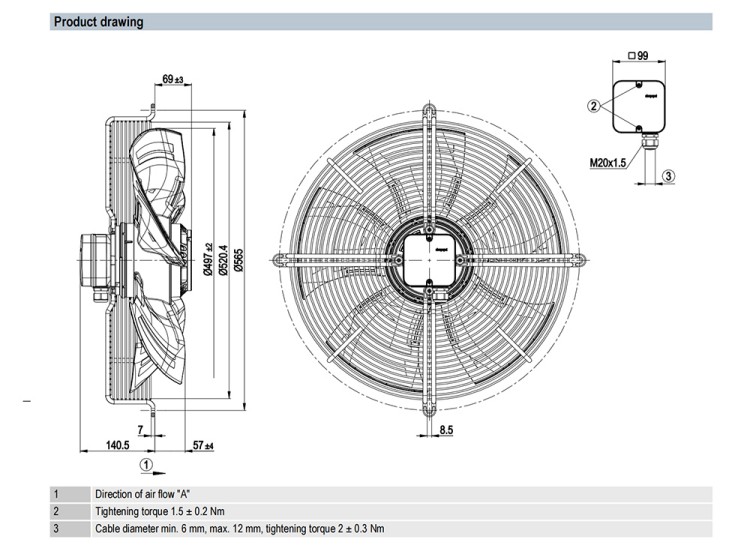

Specification Drawing:
High-Efficiency Refrigeration Cooling Solution for Industrial Applications
The ebm-papst S4D500-AM03-02 axial fan is designed for industrial refrigeration systems, condensers, evaporators, and dry cooler applications requiring stable airflow and reliable thermal management. Featuring a 500mm fan diameter, 400V three-phase motor, and airflow capacity of 6424CFM, this industrial axial fan delivers efficient heat dissipation, dependable continuous-duty operation, and strong cooling performance. Built with IP54 protection, thermal overload protection, corrosion-resistant coated steel blades, and durable ball bearings, it is suitable for refrigeration and HVAC environments operating under demanding industrial conditions.
Product Details
 |
 |
Why choose us ?► Large quantity of multi brand fans in stock supply
Main Application Scenarios
Refrigeration Condenser Cooling Equipment
The S4D500-AM03-02 axial fan is widely used in industrial refrigeration condensers where efficient airflow and stable heat rejection are critical for maintaining cooling system performance and improving energy efficiency.
Evaporator & Cold Storage Refrigeration Systems
This industrial cooling fan performs effectively in evaporator units, freezer rooms, and cold storage facilities requiring reliable air circulation and stable temperature control in refrigeration applications.
Industrial HVAC & Ventilation Applications
The ebm-papst S4D500-AM03-02 can also be applied in industrial HVAC systems, rooftop ventilation equipment, and air handling units requiring dependable airflow and long-term operational stability.
Compressor & Process Cooling Systems
With its IP54 protection rating and heavy-duty motor construction, this axial fan is ideal for compressor cooling, machinery ventilation, and industrial process cooling applications operating in humid or dusty environments.
Frequently Asked Questions
Q1. What applications is the ebm-papst S4D500-AM03-02 axial fan commonly used for?
The ebm-papst S4D500-AM03-02 axial fan is commonly used in refrigeration condensers, evaporator cooling systems, dry coolers, industrial HVAC ventilation equipment, and air-cooled heat exchanger systems. With its 10920m³/h airflow capacity and IP54 protection, this industrial refrigeration cooling fan is ideal for cold storage facilities, freezer systems, refrigeration plants, and industrial process cooling applications requiring continuous stable airflow.
Q2. Does the S4D500-AM03-02 support industrial refrigeration environments with low ambient temperatures?
Yes. The S4D500-AM03-02 axial fan is designed for demanding refrigeration and HVAC environments with operating temperatures down to -40°C during transport and startup conditions. For continuous refrigeration applications below -25°C, ebm-papst recommends using fan configurations equipped with special low-temperature bearings to ensure reliable long-term operation in cold storage and freezer systems.
Q3. How can I reduce noise or troubleshoot abnormal fan vibration?
If the S4D500-AM03-02 axial fan produces excessive noise or vibration, inspect the fan blades for dust accumulation or imbalance, verify stable 400V power supply, and check condenser or evaporator coils for airflow blockage. Inspect motor bearings, mounting hardware, and terminal box wiring for looseness or wear. Proper installation alignment and regular preventive maintenance help reduce operating noise and improve cooling efficiency. Using 100% genuine ebm-papst replacement fans also helps minimize compatibility issues and unexpected refrigeration equipment downtime.
