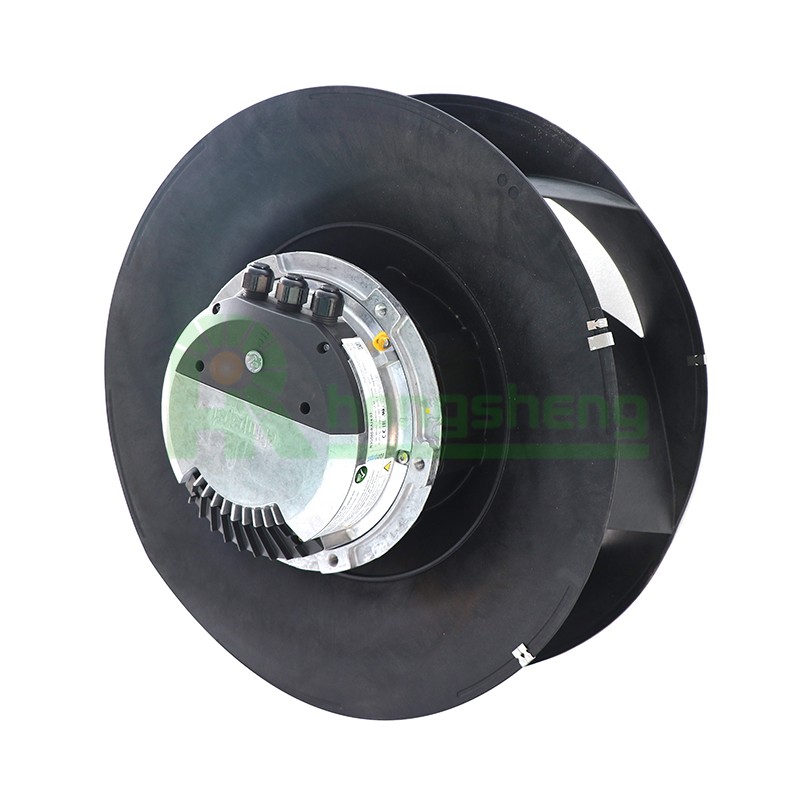

Ebm-papst R3G560-RA24-03 400V 560MM 9074CFM EC Centrifugal Fan For Data Centers and Precision Air Conditioning
Brand：ebm-papst (100% Genuine)
Model：R3G560-RA24-03
Category：Centrifugal fan
Description： 100% genuine ebmpapst R3G560-RA24-03 EC centrifugal fan, 9074CFM airflow, 800Pa pressure for data center precision cooling. Large stock, fast delivery, intelligent high-efficiency ventilation solution worldwide.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand： |
ebmpapst |
|
Part No： |
R3G560-RA24-03 |
|
Fan Type： |
Centrifugal Fan |
|
Rated Voltage(V)： |
400 |
|
Size(mm)： |
560 |
|
Max.Air Flow(CFM)： |
9074 |
|
Max.Pressure(Pa)： |
800 |
|
Input Power(W)： |
3500 |
|
Speed(RPM)： |
1750 |

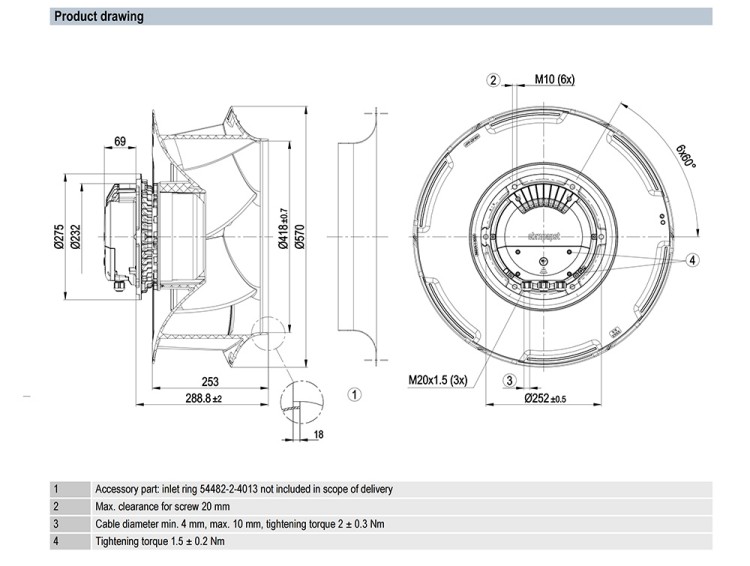

Specification Drawing:
Intelligent EC Centrifugal Fan for Mission-Critical Precision Cooling
The ebmpapst R3G560-RA24-03 EC centrifugal fan is a high-performance cooling solution developed for precision air conditioning systems, AI data centers, telecom infrastructure, and advanced HVAC applications. With 9074CFM airflow, 800Pa static pressure, and a powerful 3500W EC motor, this 560mm backward curved centrifugal fan delivers outstanding airflow stability and intelligent energy-saving operation under demanding thermal management conditions.Designed with integrated MODBUS-RTU communication, configurable I/O interfaces, RFID functionality, and an advanced PI controller, the R3G560-RA24-03 supports real-time monitoring and smart building automation systems. Its IP55 protection class, reinforced PP impeller, and reverse polarity protection ensure reliable continuous operation in high-load environments requiring uninterrupted cooling performance.This original ebmpapst EC fan is widely used as a replacement fan for CRAH units, precision cooling cabinets, liquid cooling support systems, in-row cooling equipment, and high-density server room ventilation systems. We provide 100% genuine ebmpapst products with sufficient inventory, rapid international shipping, and professional technical assistance.

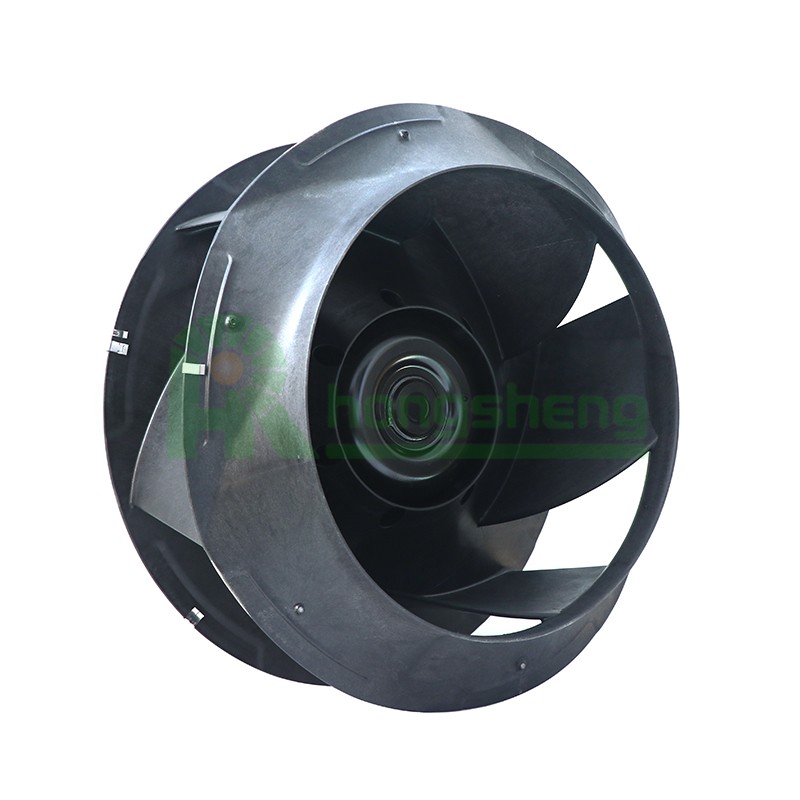

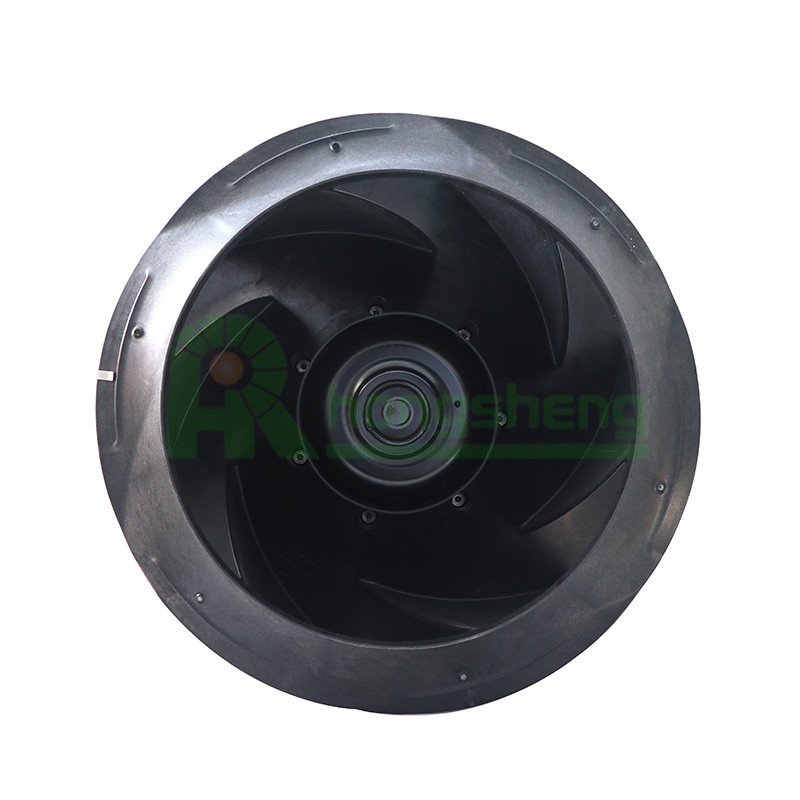

Product Details
（If you need more installation pictures or detailed technical PDF documents of ebm-papst R3G560-RA24-03, please feel free to contact us at any time.）
 |
 |
Why choose us ?► Large quantity of multi brand fans in stock supply
► Global Fast Delivery
► Professional selection support
► Experience in industrial cooling solutions
► Highly trusted by HVAC service providers
Main Application Scenarios
AI Data Center Thermal Management
The R3G560-RA24-03 is optimized for modern AI data centers and GPU server clusters requiring high static pressure airflow. Its EC motor technology enables dynamic airflow adjustment according to fluctuating thermal loads, improving cooling precision and reducing energy waste in high-compute environments.
Precision Air Conditioning & CRAH Units
This centrifugal EC fan is commonly integrated into precision air conditioners and CRAH systems where stable airflow and intelligent fan control are critical. The built-in PI controller and RS-485 MODBUS communication allow seamless integration into intelligent HVAC and BMS platforms.
Edge Computing & Telecom Cooling Systems
For edge data centers and telecom base stations operating continuously in variable environments, the R3G560-RA24-03 offers reliable long-term operation with soft-start protection, undervoltage detection, and thermal overload protection. Its IP55 rating also supports operation in industrial-grade environments.
Frequently Asked QuestionsQ1: What advantages does the R3G560-RA24-03 EC fan provide for high-density server cooling?
The R3G560-RA24-03 offers high airflow and 800Pa static pressure, making it suitable for dense server rack cooling applications. Its intelligent EC motor automatically adjusts speed based on cooling demand, helping reduce data center energy consumption and improve airflow efficiency.
Q2: Can this EC centrifugal fan support intelligent building management systems?
Yes. The fan supports RS-485 MODBUS-RTU communication, configurable digital I/O, integrated PI control, and alarm relay functions. These features allow real-time monitoring, remote diagnostics, and automated airflow management in smart precision HVAC systems.
Q3: What should users check if the fan fails to start or shows alarm indications?
Users should verify the incoming power supply, communication signals, and external control inputs. The fan includes locked-rotor protection, undervoltage detection, and thermal protection functions that may trigger alarms during abnormal operating conditions. Regular inspection of wiring terminals and airflow channels is recommended for stable long-term operation.
