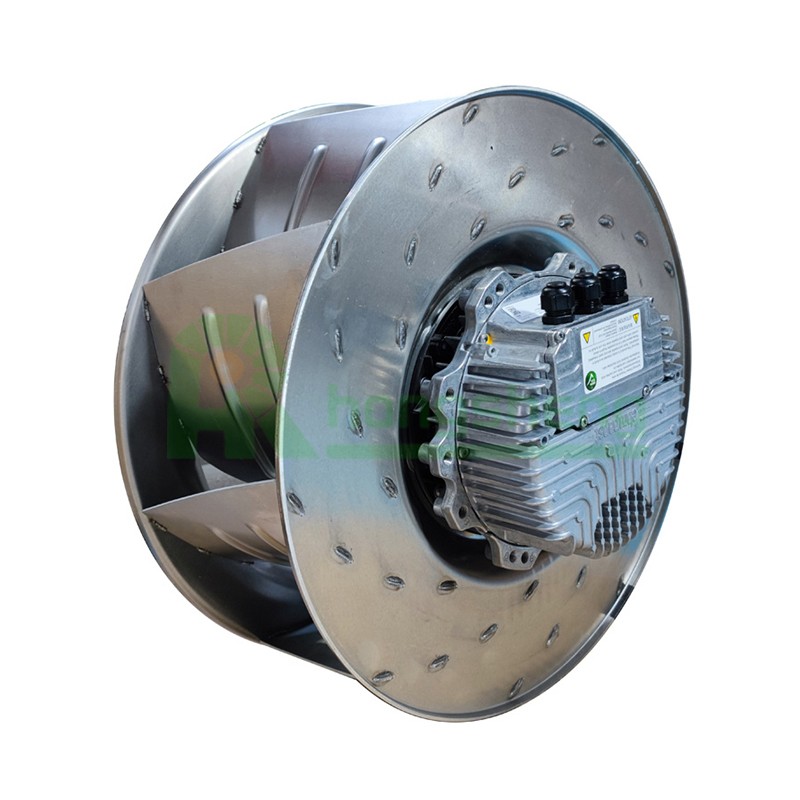

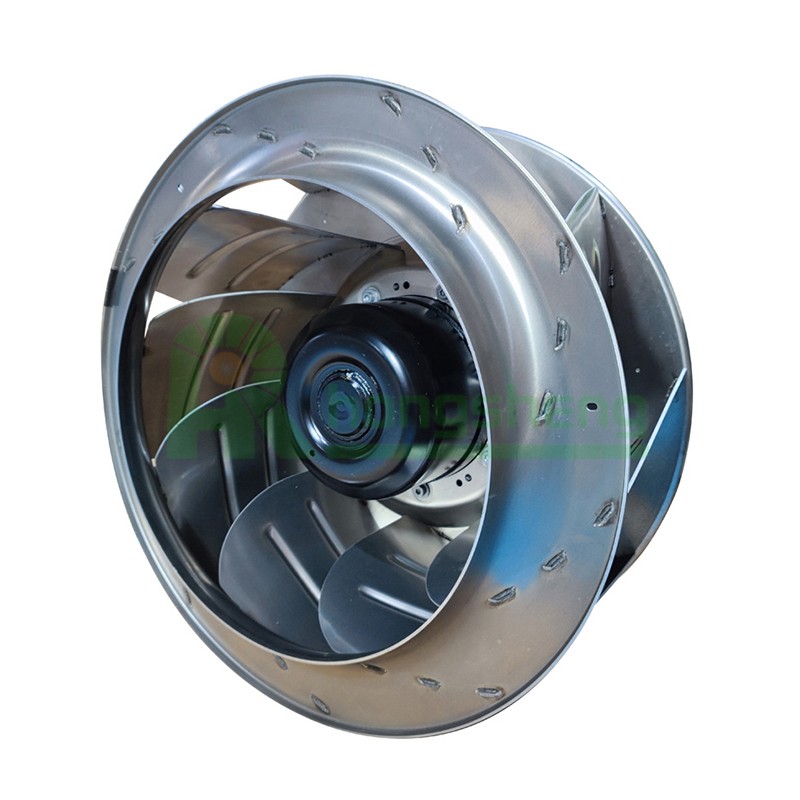

Ebm-papst R3G560-AH23-08 400V 560MM 7800CFM EC Centrifugal Fan For Data Centers and Precision Air Conditioning
Brand：ebm-papst (100% Genuine)
Model：R3G560-AH23-08
Category：centrifugal fan
Description： 100% genuine ebmpapst R3G560-AH23-08 EC centrifugal fan, 7800CFM airflow, 840Pa pressure for data center precision cooling. Fast shipping, large inventory, intelligent energy-saving airflow solution worldwide.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand： |
ebmpapst |
|
Part No： |
R3G560-AH23-08 |
|
Fan Type： |
Centrifugal Fan |
|
Rated Voltage(V)： |
400 |
|
Size(mm)： |
560 |
|
Max.Air Flow(CFM)： |
7800 |
|
Max.Pressure(Pa)： |
840 |
|
Input Power(W)： |
3000 |
|
Speed(RPM)： |
1520 |
|
Noise(dB)： |
75 |

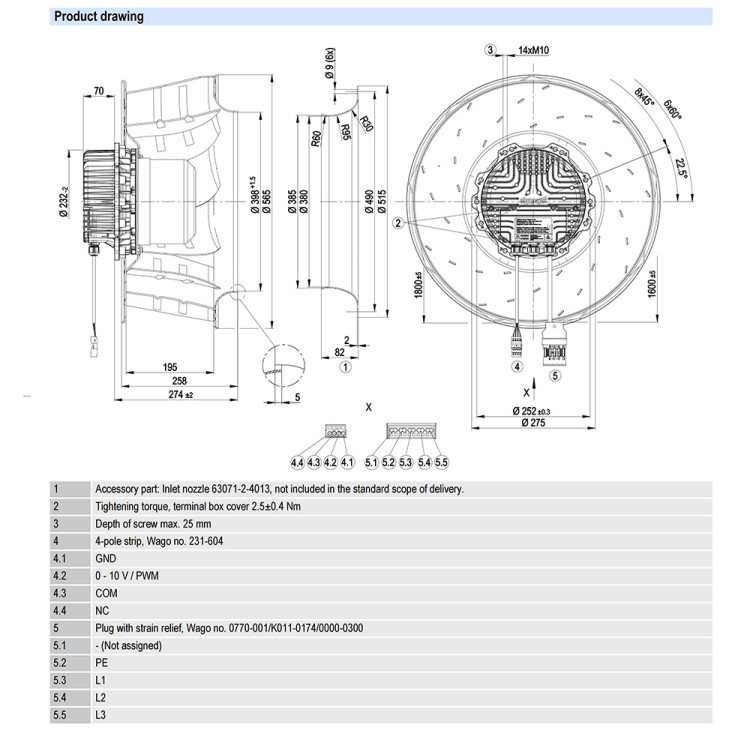

Specification Drawing:
Advanced EC Centrifugal Fan for Precision HVAC & Data Center Cooling
The ebmpapst R3G560-AH23-08 EC centrifugal fan is engineered for high-static-pressure airflow applications in precision air conditioning systems, enterprise data centers, and intelligent HVAC infrastructures. Featuring 7800CFM airflow, 840Pa static pressure, and a high-efficiency 3000W EC motor, this 560mm backward curved centrifugal fan ensures reliable cooling performance for mission-critical environments requiring continuous operation.Built with a durable aluminium impeller and die-cast aluminium electronics housing, the R3G560-AH23-08 combines mechanical strength with intelligent EC motor control technology. Integrated RS485 MODBUS RTU communication, PID control, 0-10V/PWM regulation, and alarm relay functions provide seamless integration into building automation systems and precision cooling platforms.Its IP54 protection rating, reverse polarity protection, and locked-rotor protection enhance operational safety and system reliability in demanding thermal management applications. This original ebmpapst EC centrifugal fan is widely used in CRAC units, precision air handling systems, edge computing cooling equipment, and industrial environmental control solutions. We provide 100% genuine ebmpapst fans with ready stock, fast worldwide delivery, and professional technical support.
Product Details
（If you need more installation pictures or detailed technical PDF documents of ebm-papst R3G560-AH23-08, please feel free to contact us at any time.）
Why choose us ?► Large quantity of multi brand fans in stock supply
► Global Fast Delivery
► Professional selection support
► Experience in industrial cooling solutions
► Highly trusted by HVAC service providers
Main Application Scenarios
Precision Cooling for Enterprise Data Centers
The R3G560-AH23-08 is specifically designed for enterprise-grade data center cooling systems where stable airflow and high static pressure are essential. Its EC motor technology supports intelligent speed modulation, helping optimize cooling efficiency while reducing unnecessary energy consumption during partial server loads.
High-Pressure Airflow for Filtered Ventilation Systems
With 840Pa static pressure capability, the fan performs efficiently in ventilation systems containing HEPA filters, dense ducting, or restrictive airflow paths. This makes it suitable for cleanroom HVAC applications, electronic manufacturing facilities, and controlled technical environments.
Smart Cooling Infrastructure for Edge Computing
The R3G560-AH23-08 is also suitable for edge computing stations and modular data center cooling systems. Features such as soft start, motor current limitation, and phase failure detection improve equipment stability in distributed IT cooling applications operating continuously under varying loads.
Frequently Asked QuestionsQ1: What makes the R3G560-AH23-08 suitable for high-static-pressure cooling systems?
The fan delivers up to 840Pa static pressure, making it highly effective for precision air conditioning systems with complex ductwork, air filtration stages, and restricted airflow channels commonly found in data center and cleanroom environments.
Q2: Does this EC centrifugal fan support intelligent speed control and remote monitoring?
Yes. The R3G560-AH23-08 supports 0-10VDC/PWM control, RS485 MODBUS RTU communication, integrated PID control, and alarm relay outputs, allowing seamless integration into smart HVAC and building management systems for energy-efficient airflow control.
Q3: How can users prevent locked-rotor alarms or motor protection shutdowns?
To avoid locked-rotor or overload protection events, users should regularly inspect the impeller for debris buildup, ensure stable power input, verify correct wiring connections, and maintain proper ventilation clearance around the fan assembly. Preventive maintenance helps ensure long-term stable EC fan operation.
