Ebm-papst K3G630-FB28-C1 400V 630MM 12380CFM EC Centrifugal Fan For Data Centers
Brand：ebm-papst (100% Genuine)
Model：K3G630-FB28-C1
Category：Centrifugal Fan
Description： 100% genuine ebm-papst 630mm EC centrifugal fan. Pumps 12380 CFM airflow and 700 Pa pressure force. Tailored for enterprise server room climate setups. Fully stocked for quick international dispatch.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand： |
ebm-papst |
|
Part No： |
K3G630-FB28-C1 |
|
Fan Type： |
Centrifugal Fan |
|
Rated Voltage(V)： |
400 |
|
Size(mm)： |
630 |
|
Max.Air Flow(CFM)： |
12380 |
|
Input Power(W)： |
2950 |
|
Speed(RPM)： |
1300 |
|
Max.Pressure(Pa): |
700 |

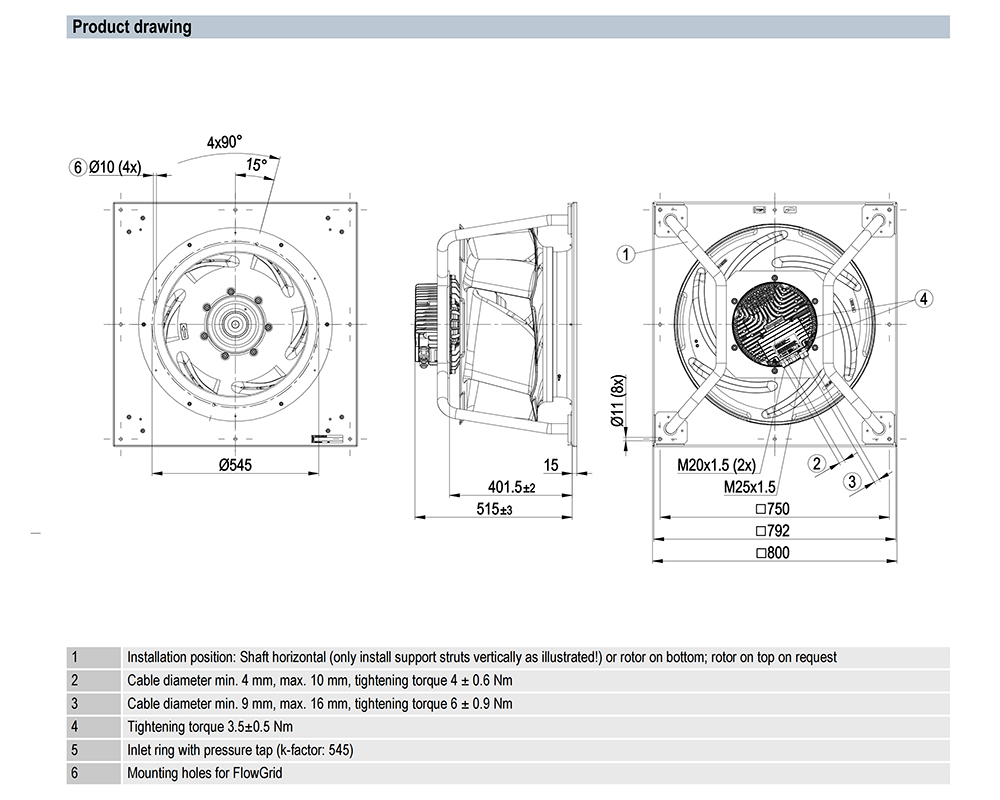

Specification Drawing:
Reliable Cooling Solution for Data Center & IT Infrastructure Applications
The K3G630-FB28-C1 EC centrifugal fan is designed for high-efficiency airflow in demanding environments. It is widely used as a replacement for ebm-papst fans in enterprise data center cooling systems, ensuring stable performance, low energy consumption, and long service life. Featuring a lightweight 6-blade PP plastic impeller and an integrated galvanized support plate, this model maximizes volumetric displacement while keeping power demands low.
Product Details
（If you need more installation pictures or detailed technical PDF documents of ebm-papst K3G630-FB28-C1, please feel free to contact us at any time.）
Why choose us ?► Large quantity of multi brand fans in stock supply
► Global Fast Delivery
► Professional selection support
► Experience in industrial cooling solutions
► Highly trusted by HVAC service providers
Main Application Scenarios
Hyperscale Data Center Exhaust Systems:
Draws high volumes of hot air from centralized hot aisle spaces and ejects it out of the facility, maintaining ideal indoor air pressure.
Co-Location Facility In-Line AHUs:
Integrated into modular air handlers in shared multi-tenant server facilities, offering adjustable, on-demand airflow control.
Centralized Free-Cooling Economizers:
Manages external ambient air intakes in modern energy-efficient data center economizers, using outdoor air to cool server equipment whenever conditions allow.
Frequently Asked QuestionsQ1: What are the material advantages of the 6-blade PP plastic impeller utilized in the ebm-papst K3G630-FB28-C1 fan?
The engineered PP plastic impeller offers an outstanding strength-to-weight ratio that lowers overall rotor mass. This material design reduces starting torque requirements and lowers energy consumption during operation, while providing excellent resistance to airborne dust and humidity.
Q2: Does this unit provide reliable hardwired signal options for building emergency shutdown loops?
Yes, the electronics housing includes an isolated alarm relay alongside its RS-485 Modbus-RTU interface. This enables automated digital tracking over standard communication networks, while giving operators a direct, hardwired safety switch to trip external alarms if an unexpected motor error occurs.
Q3: How much can changing to this high-efficiency EC model lower the long-term total cost of ownership (TCO) of our building?
By upgrading from legacy AC units to this advanced EC direct-drive technology, facilities regularly see a 30-50% drop in energy consumption. Combining high efficiency with an integrated power limiter and low maintenance needs, it drastically reduces your operational expenses and total cost of ownership (TCO).
