Ebm-papst K3G800-PW07-01 400V 25115CFM EC Centrifugal Fan For Data Centers
Brand：ebm-papst (100% Genuine)
Model：K3G800-PW07-01
Category：Centrifugal Fan
Description： 100% genuine ebm-papst 800mm industrial EC fan. Massive 11300W drive delivering 25115 CFM airflow and 1450 Pa pressure. Certified data center cooling hardware. Fully stocked for quick global delivery.
Sales Hotline:+86 10-62547612
Cell Phone:+86 187 0152 6587
E-mail: Jason@bjhengrui.cn / qin@bjhengrui.cn / sales06@bjhengrui.cn
- Specification
- Details
- Application
Nominal data:
|
Brand：
|
ebm-papst
|
|
Part No：
|
K3G800-PW07-01
|
|
Fan Type：
|
Centrifugal Fan
|
|
Rated Voltage(V)：
|
400
|
|
Size(mm)：
|
800
|
|
Max.Air Flow(CFM)：
|
25115
|
|
Input Power(W)：
|
11300
|
|
Speed(RPM)：
|
1370
|
|
Max.Pressure(Pa):
|
1450
|

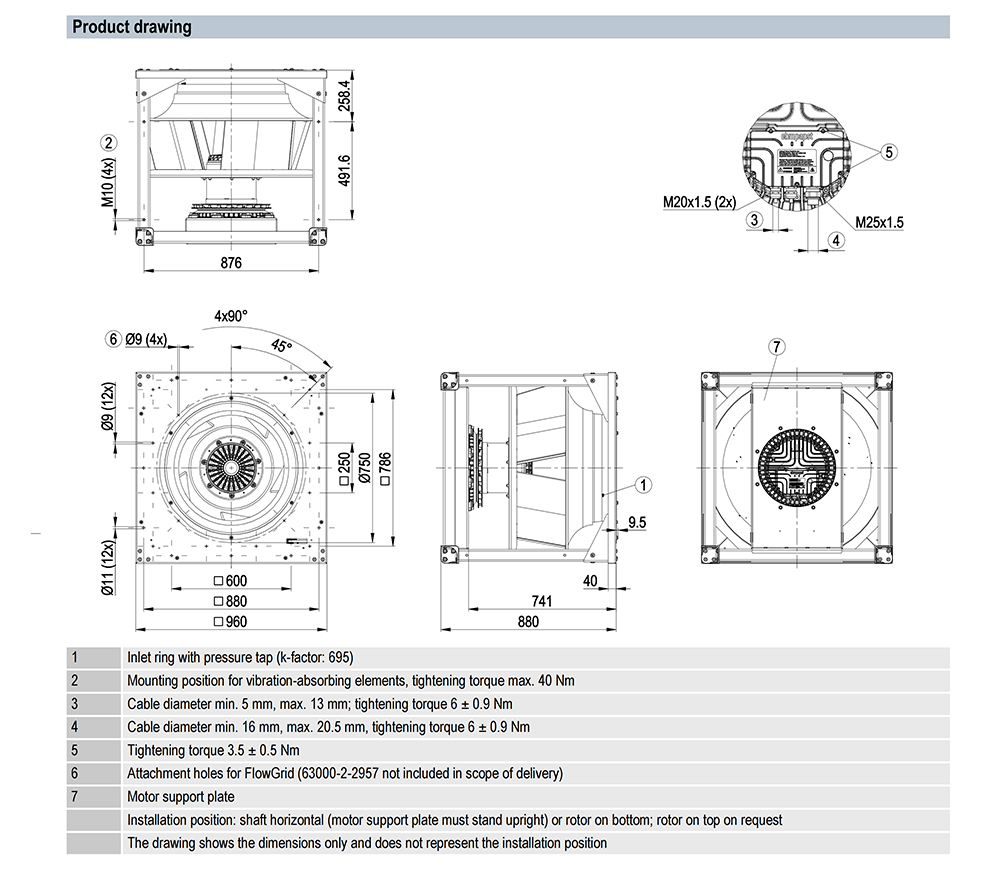

Specification Drawing:
Reliable Cooling Solution for Data Center & IT Infrastructure Applications
The K3G800-PW07-01 EC centrifugal fan is designed for high-efficiency airflow in demanding environments. It is widely used as a replacement for ebm-papst fans in enterprise data center cooling systems, ensuring stable performance, low energy consumption, and long service life. Driven by an 11.3 kW motor, it stands as the ultimate choice for large-scale, high-volume industrial air handling challenges.
Product Details
（If you need more installation pictures or detailed technical PDF documents of ebm-papst K3G800-PW07-01, please feel free to contact us at any time.）
Why choose us ?► Large quantity of multi brand fans in stock supply
► Global Fast Delivery
► Professional selection support
► Experience in industrial cooling solutions
► Highly trusted by HVAC service providers
Main Application Scenarios
Hyperscale Data Center HVAC Networks:
Serves as the central air mover for building-wide climate control, managing massive air volumes in large multi-tenant cloud storage complexes.
High-Capacity Roof Cooling Infrastructure:
Installed within large rooftop cooling packages and air handler layouts to pull heat out of multi-story server facilities.
Centralized Equipment Ventilation Shafts:
Forces high-pressure airflow through long vertical ventilation shafts, providing balanced cooling across deep underground infrastructure rooms.
Frequently Asked QuestionsQ1: Can the massive ebm-papst 800mm centrifugal fan run reliably under automated pressure-controlled setups?
Yes. It features an integrated PID controller that links directly to standard 0-10V or 4-20mA sensor inputs. This allows facility engineers to connect pressure or temperature sensors directly to the fan, creating an automated, self-regulating ventilation loop without needing an extra external controller.
Q2: What bearing design ensures the long-term reliability of this 157.3 kg fan during 24/7 continuous duty?
The fan uses premium, permanently sealed heavy-duty ball bearings designed for S1 continuous running profiles. This rugged bearing setup handles high radial loads and removes regular lubrication requirements, providing a long, maintenance-free service lifespan for your infrastructure.
Q3: Are your warehouse inventories stable enough to support sudden replacement needs for critical building systems?
Yes, we maintain a large, stable inventory of high-capacity ebm-papst fans in our warehouses. This allows us to guarantee immediate rapid global shipping and fast delivery times, helping you avoid production waitlists and complete critical cooling upgrades right on schedule.
